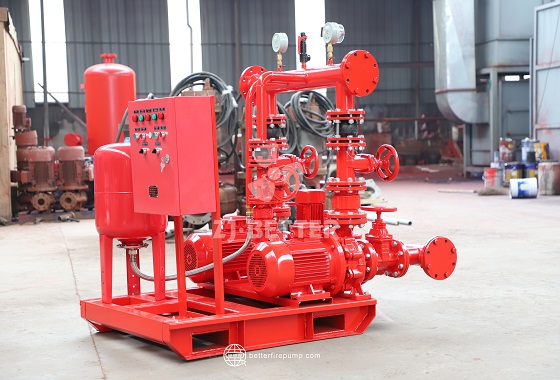

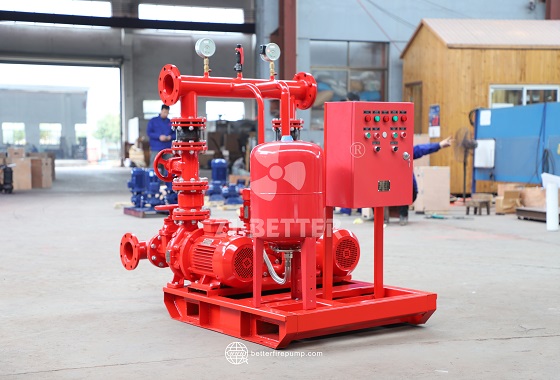

Integrated Fire Water Pump Package with Pump, Control Cabinet and Pressure Monitoring Components
The integrated fire water supply pump unit combines a fire pump, motor, control cabinet, pressure monitoring instruments, and piping components into a single assembly. It supports the inclusion of pressure-stabilizing equipment and backup pumps, making it suitable for fire water supply systems in both building and industrial applications; models can be flexibly selected based on flow rate, head, pressure, and installation requirements.
An integrated fire water supply pump unit is a complete system combining a fire pump, motor, control cabinet, pressure monitoring instruments, valves, and piping components; it is suitable for commercial buildings, industrial plants, logistics warehouses, and other fire protection projects. Its centralized structural design allows for the rational arrangement of key components, optimizes space utilization in the pump room, and simplifies on-site installation and piping connections. As the core component, the fire pump delivers water to the fire protection piping network; its flow rate, head, and operating pressure must be matched to the building height, network resistance, and specific fire safety design requirements. The motor drives the pump, while the control cabinet manages operation and electrical control, providing functions such as start/stop management, status monitoring, and system protection based on the specific configuration. Integrated pressure gauges and sensors allow personnel to monitor pressure fluctuations in the network, providing essential data for commissioning, operational checks, and maintenance. Depending on project needs, the system can also be equipped with a jockey pump and pressure tank to maintain standby network pressure, thereby reducing frequent starts of the main pump caused by minor pressure fluctuations during normal operation. For projects requiring backup power, a diesel-driven fire pump can be included in the design to meet emergency water supply requirements. Meanwhile, auxiliary components—such as check valves, isolation valves, flanges, flexible joints, and inlet/outlet piping—ensure seamless hydraulic connections, integrating the unit into a cohesive water supply system with the fire protection network. Compared to decentralized equipment setups, integrated pump units facilitate unified planning of equipment placement, piping interfaces, and electrical connections, making installation and management more convenient. Their compact structure and clear component layout also simplify routine inspections, troubleshooting, and maintenance. During product selection, factors such as design flow rate, head, operating pressure, motor power, pipe diameter, installation space, and applicable fire safety standards must be comprehensively considered to ensure proper component matching. Final configurations should be determined based on project scale and application environment, taking into account water source conditions, power supply methods, backup equipment requirements, and control logic. Through scientific model selection and standardized installation, integrated fire water supply pump sets provide a solution that is structurally sound, flexibly configured, and easy to manage for building and industrial fire protection systems.
