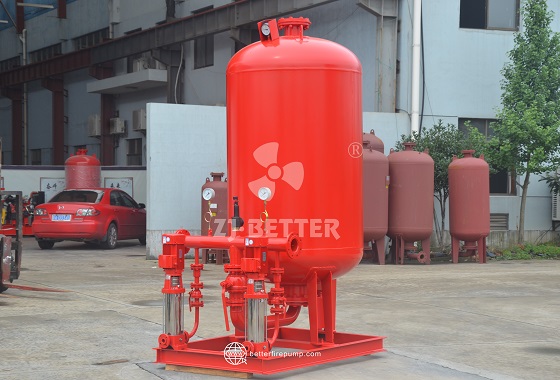

Fire Pressure Tank and Electric Jockey Pump Combination for Automatic Pressure Regulation

Fire pump package comprises a combination of electric motor driven pump, diesel engine driven and electric motor driven jockey pumps that supply for fire suppression systems.
Fire pump package is required to comply with Local Civil Defense Authority regulations and International Codes of Practice e.g. National Fire Protection Association (NFPA).

BETTER auto-start diesel fire pump system offers independent, intelligent fire protection for industrial and municipal use. NFPA20 & CE certified.

Learn what a fire pump test header is, how it works, and why it’s a key component for performance testing and NFPA 25 compliance.

The stationary electric fire pump unit adopts a high-efficiency horizontal end-suction centrifugal fire pump, a high-performance motor, and an intelligent automatic control system. It has advantages such as rapid start-up, stable water supply, continuous operation, automatic control, multiple safety protections, and modular installation. It is widely used in high-rise buildings, industrial plants, commercial complexes, hospitals, data centers, airports, and municipal fire protection projects, providing efficient, reliable, and intelligent fire water supply solutions for modern fire protection systems.

Diesel fire pump units with high-efficiency cooling systems have independent power, large flow rate, high head and continuous operation capability, and are suitable for fire water supply in industrial, petrochemical and remote areas, providing a stable and reliable high-performance fire protection solution.

High-performance diesel fire pumps, featuring high-temperature and corrosion resistance, are suitable for industrial plants, chemical bases, power plants, and high-rise buildings. Their independent diesel powertrain ensures stable water supply even in power outages, while their intelligent control system enables automatic start-up and remote monitoring. With their robust construction, easy maintenance, and efficient and reliable operation, they provide a robust and safe emergency water supply solution for various firefighting projects.

Fully Automatic Diesel Engine Fire Pump designed for high-head emergency fire water supply. Featuring independent diesel drive, automatic start control system, skid-mounted structure, durable heavy-duty construction, and reliable continuous operation. Ideal for power-free environments, industrial plants, high-rise buildings, warehouses, and municipal fire protection systems requiring dependable backup firefighting performance.

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

Small diesel fire pumps, with their efficient, independent power systems, excellent head and flow performance, energy-saving and environmentally friendly design, and strong environmental adaptability, are widely used in urban firefighting, farmland fire prevention, flood control and drainage, and emergency water supply. With their compact structure, easy operation, and low maintenance costs, they are ideal equipment for ensuring fire safety and emergency water supply.

The EJ (Electric pump + Jockey pump) Dual Power Fire Pump System is an innovative and reliable fire protection solution. Combining an electric pump for robust water pressure and flow with a top-quality jockey pump for stable pressure maintenance, this system ensures efficient and timely water supply during fires. With advanced automation, remote monitoring, and energy-saving features, the EJ Dual Power Fire Pump System is a trusted choice for commercial, industrial, and residential applications.

This is a set of EDJ fire pump set, which consists of electric pump + diesel pump + jockey pump. The three pumps are automatically started and stopped. When the joceky pump detects that the electric pump cannot operate normally, the diesel engine pump will start automatically. Can also be used, the fire pump set is widely used in various emergency firefighting occasions.

1. Electric pump, can use multistage pump, material can be cast iron, stainless steel, and bronze impeller

2. Jockey pump, horizontal or vertical, capacity will be small, but head should be higher than electric and diesel engine pump

Jockey material casing: cast iron ,shaft and impeller SS304

Fire pump systems play a crucial role in fire protection. When selecting a system, it is essential to consider factors such as building size, flow requirements, head pressure, and power source to ensure stable water supply in emergencies. Properly matching the pump model not only prevents overload or mismatches but also extends the equipment’s service life. Additionally, focus on product quality, manufacturer credentials, and compliance with national and international standards. Regular maintenance and inspections after installation further enhance the system’s overall safety and reliability.

Industrial-grade diesel fire-fighting water supply units adopt an independent diesel power design, support long-term continuous operation, and have high flow rate, high head and stable output performance. They are suitable for industrial parks, energy facilities and high-risk locations, providing reliable and continuous water supply for fire protection systems.

Independent diesel-powered fire pump units can start quickly in the event of a power outage, with stable flow, sufficient head, and compact structure. They are suitable for reliable fire water supply systems in industrial plants, municipal engineering projects, and large facilities.

The tank-pump integrated fire water tank includes a water tank, an air pressure water tank, a water pump unit, an electric control cabinet, a liquid level instrument, a pipeline, a bottom plate, and an internal and external ladder. The water tank, the air pressure water tank and the bottom plate are connected as a whole, and the water pump unit Located on one side of the water tank, the electric control cabinet is arranged in the water tank, the pipeline is connected with the water pump unit and the water tank, and the inner and outer ladders are connected on the side of the water tank. The fire-fighting equipment of the utility model is simple in structure, low in cost and easy to install. While meeting the fire-fighting needs, the project cost, construction period and floor space are reduced.

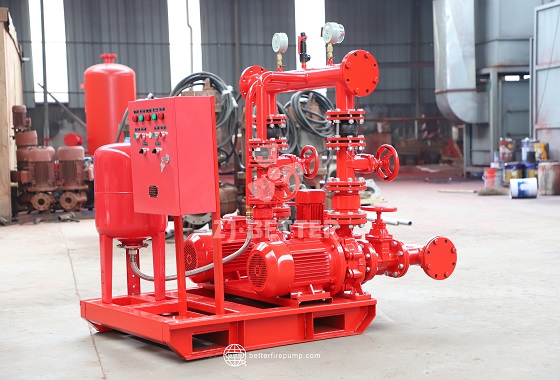

The skid-mounted fire pump system features a centralized piping layout and an integrated base design. It incorporates fire pumps, valves, pressure monitoring equipment, and control components, thereby simplifying on-site installation and piping connections. This system is suitable for industrial facilities, warehouses, commercial buildings, and a wide range of other fixed fire-water supply applications.

1.Flow：30-9000 GPM
2.Head： 3-20 Bar 40-300 psi
3.Power：Diesel & Electric Pump:1.5-710kw Jockey Pump:0.55-160kw
4.Speed：740-2900 r/min
The EDJ Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations.

Diesel engine fire pumps are relatively common in life, and their performance requirements are relatively high. In normal use, more attention must be paid to maintenance to prolong the service life of the pump. Because diesel fire pumps are not omnipotent, there will be some problems in daily use, so when choosing equipment, we must pay attention to whether the quality of the equipment has reached the national standard. As fire equipment, all kinds of equipment must be Ensure performance, avoid affecting use in disasters, and delay rescue.

Maintenance records provide a documented history of the pump’s condition, service intervals, and repairs, which are vital for compliance, insurance, and ensuring that pumps are in good working order during emergencies. Regular records also help identify recurring issues, allowing for proactive maintenance.

DJ Fire pump set Fire pump set consists of one pump coupled to diesel engine, jockey pump, pressure vessel, controller for manual or automatic operation of system and standard accessories mounted on base frame.And this fire pump system can be customized for different purposes such as high rise buildings, facilities,hospitals, supermarkets,shopping malls,villas,apartments,etc.

Diesel engine fire pumps are often used for emergency water supply in high-rise buildings, water companies, steel plants, wineries, chemical plants, hotels, hospitals, and other large-scale projects. Diesel engine fire pump is suitable for unattended emergency water supply system. The product has the characteristics of advanced technology, high degree of automation, superior performance, complete protection functions, reasonable structure, simple installation, and high cost performance. net pressure.

The so-called self-priming pump does not require irrigation before starting, and after a short period of operation, the water can be sucked up by the function of the pump itself and put into normal operation.

Self-priming pumps are divided into the following categories according to their working principles:

(1) Gas-liquid mixing type (including internal mixing type and external mixing type);

(2) Water ring wheel type;

(3) Jet type (including liquid jet and

The full name of diesel engine fire pump is engineering diesel engine fire pump set, which can be automatically charged, automatically started, and has the functions of automatic alarm and automatic preheating. The diesel engine fire pump is usually used as a backup facility, so it will only start automatically when the fire signal comes, and when the electric water pump fails or the power supply is cut off. When it has a device for starting the pump at ultra-low pressure, its matching electric water pump control cabinet should also have a device for starting the pump at ultra-low pressure, and the lower limit of the two pumps should have a certain pressure difference.

Diesel engine fire pumps are relatively common in life, and their performance requirements are relatively high. In normal use, more attention must be paid to maintenance to prolong the service life of the pump. Because diesel fire pumps are not omnipotent, there will be some problems in daily use, so when choosing equipment, we must pay attention to whether the quality of the equipment has reached the national standard. As fire equipment, all kinds of equipment must be Ensure performance, avoid affecting use in disasters, and delay rescue.

This fire pump features an outstanding energy-saving hydraulic design, which not only significantly reduces operational energy consumption but also ensures continuous high-performance water flow during emergencies. Its internal structure is meticulously optimized to minimize fluid resistance while enhancing flow and pressure output, resulting in lower energy usage and improved efficiency. Whether used in industrial settings or commercial buildings, this fire pump delivers stable and powerful hydraulic support while reducing operational costs, providing an uncompromising safeguard for fire safety.

EEJ dual-power fire pump is a fire-fighting water supply equipment with dual drive of electric power and diesel engine designed and manufactured by Better Technology Co., Ltd. according to the standard of <>, and has obtained 3CF certification. There are many models of Better dual-power fire pumps, which can be customized according to needs.

The biggest problem in the event of a fire is to ensure continuous fire-fighting power. If the fire is not extinguished in time due to insufficient supply of raw materials, it will cause huge economic losses. Therefore, high-quality fire pumps must be selected to avoid quality problems. , resulting in irreparable damage.

Engineered for extreme conditions, the ZJ-BETTER enclosed diesel fire pump delivers powerful performance, intelligent control, and all-weather reliability—your ideal solution for emergency firefighting scenarios.

Facilities can ensure the readiness and operational readiness of diesel fire pumps by implementing a comprehensive maintenance program, conducting regular testing and inspections, and providing ongoing training for personnel responsible for operating and maintaining the pumps. This may include performing weekly or monthly visual inspections, conducting quarterly or annual performance tests, and scheduling preventive maintenance tasks based on the manufacturer’s recommendations and industry best practices. Additionally, facilities should maintain accurate records of all maintenance activities and testing results to demonstrate compliance with regulatory requirements and ensure accountability.
