Deep Well Fire Pumps Use Long Shaft Structures for Submerged Water Intake and Surface Drive
Deep well fire pumps adopt a long-shaft vertical structure, enabling underwater water intake and ground drive. They are suitable for low-water-level fire water sources such as deep wells, pools, rivers, and lakes. The products feature vertical installation, space saving, multi-stage pressurization, strong adaptability to water intake depth, and flexible configuration, making them suitable for industrial, port, warehousing, and various fixed fire water supply projects.

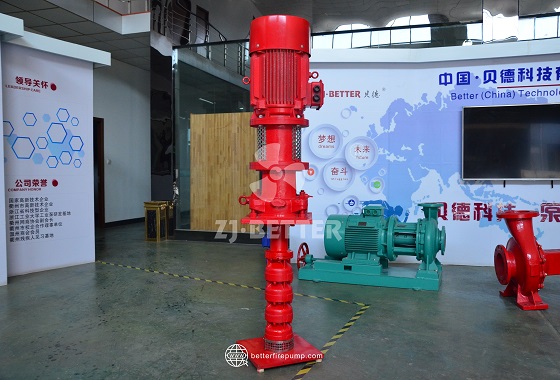

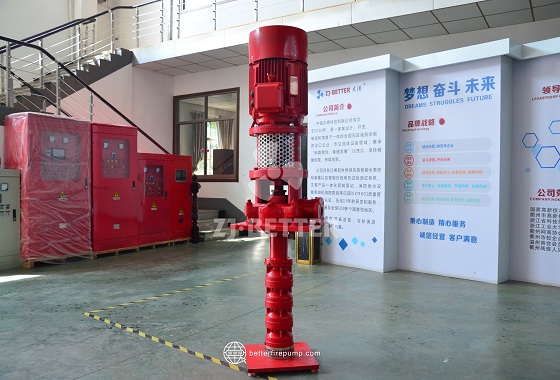

Deep well fire pumps are fire-fighting water supply equipment suitable for low water levels, deep water sources, and special water intake conditions. They primarily employ a vertical long-shaft structure, separating the underwater water intake section from the surface power drive section. Power is transmitted from the surface to the underwater impeller via a long drive shaft, enabling continuous water intake from deep wells, pools, rivers, lakes, and other water sources below the equipment installation surface. This product consists of an underwater pump body, impeller assembly, guide vanes, vertical pump column, drive shaft, outlet bend or outlet components, and surface drive unit, and can be configured according to the actual water source depth and fire-fighting water supply requirements. Compared to partial water intake methods that require the entire system to be located near or at a low level above the water source, deep well fire pumps can install the main power equipment on the ground, while extending the water intake and booster components into the water source. Therefore, they are well-suited for fire-fighting water sources where the water level is below the pump house floor. One of the key features of this product is its long-shaft drive structure. The ground drive unit transmits power downwards through the long shaft, causing the underwater impeller to rotate under specified operating conditions and progressively increase the water’s energy, then delivering the water from the water source to the surface fire-fighting pipeline. Depending on the water intake depth and system head requirements, the pump set can be combined with drive shafts and vertical tubing of appropriate lengths to adapt to water source conditions at different depths. For projects requiring higher water supply head, multi-stage impellers and guide structures can be used for graded pressurization, gradually increasing the pressure of the water after passing through multiple working stages to meet the fire-fighting system’s water supply head requirements. The vertical layout is also a significant structural advantage of deep-well fire pumps. The equipment is primarily installed vertically, helping to reduce ground space occupation and making it suitable for projects with limited pump room space or requiring centralized placement of fire-fighting water supply equipment. With the ground drive unit separated from the underwater pump body, the motor or diesel engine and other power equipment can be placed in a location that is relatively easy to inspect and maintain. Personnel can perform routine inspections of the power unit, couplings, control system, and related connecting components without frequent entry into the water source area. Submersible pumps are primarily responsible for water intake and transportation. A well-designed impeller, guide components, and flow channel help maintain the continuity of water flow and achieve the required flow rate and head output according to engineering needs. The equipment can be configured with different materials and components based on water source conditions. For components that are in long-term contact with water, corrosion resistance and wear resistance requirements can be considered in conjunction with the properties of the medium, thereby improving the product’s adaptability to different water source environments. The application value of deep-well fire pumps in fire protection engineering lies mainly in their ability to fully utilize existing natural or stored water sources. When fire pools cannot be installed at higher locations, or when there is a significant height difference between wells, rivers, lakes, and other water sources and the equipment installation surface, the long-shaft vertical structure provides a relatively direct water intake method, allowing the fire water supply system to be rationally configured according to on-site water source conditions. This product can be applied to industrial plants, petrochemical facilities, ports, large storage areas, airports, public infrastructure, and other engineering projects requiring independent fire water sources. Different projects have varying requirements for fire-fighting flow rate, water source depth, lifting height, and power source. Therefore, during product selection, it is necessary to determine the appropriate pump set specifications based on the actual water intake depth, design flow rate, pipeline resistance, and fire protection system requirements. Overall, deep-well fire pumps achieve underwater water intake and ground drive through a long-shaft structure. They feature adaptability to low-water sources, vertical layout saving ground space, staged pressurization to meet different head requirements, easy ground inspection of the power equipment, and flexible engineering configuration. By rationally configuring the underwater pump body, vertical tubing, drive shaft, impeller stages, and drive unit, reliable water intake and delivery equipment support can be provided for fixed fire-fighting water supply systems under deep water source and low water level conditions.
