Electric fire pump set with OTS pump

The EDJ fire pump set is composed of a fire pump, a dual-shaft extension motor and a diesel engine. One end of the output shaft of the dual-shaft extension motor is connected to the input shaft of the fire pump, and the other end of the output shaft of the dual-shaft extension motor is connected to the input shaft of the fire pump. One end of a clutch is connected, and the other end of the clutch is connected with the output shaft of the diesel engine. The fire water pump, the double-shaft extension motor, the clutch and the diesel engine are all fixed on the base. The double-shaft extension motor, the clutch and the diesel engine are respectively electrically connected with a control circuit through the action driving circuit. With dual-power fire pump, there is no need to configure a second fire pump, reducing floor space and manufacturing costs.

The EJ (Electric pump + Jockey pump) Dual Power Fire Pump System is an innovative and reliable fire protection solution. Combining an electric pump for robust water pressure and flow with a top-quality jockey pump for stable pressure maintenance, this system ensures efficient and timely water supply during fires. With advanced automation, remote monitoring, and energy-saving features, the EJ Dual Power Fire Pump System is a trusted choice for commercial, industrial, and residential applications.

EDJ fire pump is the main pump used for various fire hydrants and sprinkler fire pumps; it is suitable for various fire boosting and pressure stabilizing pumps; various villas, community and other fire protection systems; industrial and civil building fire protection systems; suitable for Various oil depots, oil loading and unloading docks, logistics parks and other places with high fire protection requirements.

Applications
1. The fire extinguishing system of enterprises and institutions, construction, high-rise buildings and other fixed fire -fighting system, automatic sprinkler system.
2. High-rise building zoning fire-fighting system, fire and life, production
of common water supply systems and construction, municipal, industrial and mining, boiler feed water and other occasions.
3.Fire water supply and emergency water supply in docks, warehouses,airports, petroleum, chemical industry, power plants, liquefied gas, textiles, ships, oil tankers and other occasions.

UL fire pump, certificate number EX28132,
meet UL 448 standard for pumps for Fire-Protection Service
Flow 200-2000 GPM
Rated pressure: 103-224 PSI
Speed： 2950-3550 RPM (50hz or 60hz)
Maximum working pressure: 280 PSI

1.Flow：30-9000 GPM
2.Head： 3-20 Bar (40-300 psi)
3.Power：Diesel & Electric Pump:1.5-710kw Jockey Pump:0.55-160kw
4.Speed：740-2900 r/min
The EDJ Fire Pump Set includes diesel engine pumps, electric pumps and jockey pumps.
In various fields, our products find applications in large hotels, hospitals, schools, office buildings, supermarkets, commercial residences, subway stations, train stations, airports, various transportation tunnels, petrochemical plants, thermal power plants,oil storage tanks, large warehouses, industrial and mining enterprises, seawater injection, etc.

Proper start-up procedures are crucial to the reliable operation of fire pumps during emergencies. This article provides a step-by-step guide to fire pump start-up, covering pre-start checks, system priming, and the role of controllers. It emphasizes the need for well-documented start-up procedures to ensure consistent and error-free operations.

Small fire pump set—With small flow, small lift and diesel electric matching, it is suitable for small buildings, small in size, small in floor area, and can save a lot of space and installation. It is the first choice of many foreign customers.Better Technology Group is committed to the production, testing, packaging, delivery and technical development of fire pumps. It researches pump products in many aspects and brings high-quality and high-performance fire pump products to many countries.

Spectrum range: fire pump can use a single-stage end suction pump,a combination of multistage single-suction pumps, single-stage double-suction pumps and other kinds of pumps, pump or more kinds of parallel flow, wide pressure range.
Automatically. when the engine fire pump receives a valid signal fire, remote control start signal when the unit will start automatically; when the fire pump motor supply failure or lack of signal phase, the unit will automatically standby. Diesel fire pump start 10s, if not start running, stop 10s, and then restart. The unit will automaticaly repeat three times.
Alarm System: repeatedly failed to start alarm, low diesel engine oil pressure alarm, ultra-high temperature alarm diesel engine, diesel engine speed alarm, low battery alarm, charging failure alarm, an alarm indicating a lack of fuel.
kinds of ways to start signal fire started, manually start or remote start.

1. The biggest feature of the complete fire pump set is its strong reliability. Even if it is restarted for a long time, it will not bite to death, and it can be restarted normally.
2. The use efficiency is very high. During the use process, there will not be too much noise. The installation form of the fire pump set is very flexible, and it is convenient for maintenance, which can effectively save installation and maintenance costs.??

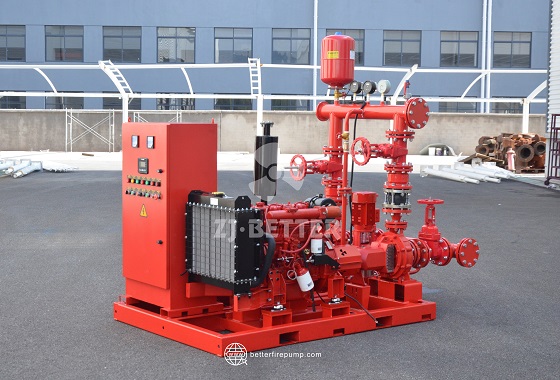

This is a set of EDJ fire pump set, which consists of electric pump + diesel pump + jockey pump. The three pumps are automatically started and stopped. When the joceky pump detects that the electric pump cannot operate normally, the diesel engine pump will start automatically. Can also be used, the fire pump set is widely used in various emergency firefighting occasions.

Diesel engine fire pumps are relatively common in life, and their performance requirements are relatively high. In ordinary use, more attention should be paid to maintenance, so as to prolong the service life of the pump. Because diesel fire pumps are not omnipotent, there will be some problems in daily use, so when choosing equipment, we must pay attention to whether the quality of the equipment meets the national standards. As fire equipment, all kinds of equipment must be To ensure performance, avoid affecting use in disaster situations and delaying rescue.

Early detection of fire pump issues is crucial for preventing critical system failures. This article explores the functionalities and benefits of fire pump alarms and monitoring systems in detail. It explains how these systems provide real-time data on the status and performance of fire pumps, enabling early warning of potential problems. By embracing these technologies, facility managers can ensure continuous oversight and timely intervention.

The video displays EJ fire pump set is being tested. The system set is equipped with a priming tank and can do 2 to 3 meters negative suction.

ZJBetter provide three types of fire pump system, such as diesel engine fire pump set, electric driven fire pump set, EDJ fire pump set.

Fire pumps are part of the water supply to a fire sprinkler system and are powered by electricity, diesel or steam. The pump inlet is either connected to a public groundwater supply or to a static water source (e.g. tank, reservoir, lake).

The application of fire pumps is not only in fire protection systems, but a variety of fire pumps are gradually showing their superior strength in industrial production and urban construction. This includes the implementation and expansion of high-end technologies for industrial and urban water supply and drainage, and high-rise building underpressure water delivery.

1.Flow: 50-5000GPM
2.Head: 3-20Bar
3.Speed: 740-2900r/min
4.Power: Electric pump: 1.5-710 kw, Jockey pump: 0.55-160kw
The EEJ Fire Pump System is an innovative solution designed to enhance fire safety in various settings. With exceptional performance and efficiency, the EEJ Fire Pump System delivers high pressure and large flow capacity, enabling rapid and effective fire suppression.Overall, the EEJ Fire Pump System is a reliable choice for safeguarding lives and properties, making it an ideal fire protection solution for commercial buildings, industrial facilities, and residential areas.

This equipment is a customized EEJ fire pump set which can meet 500GPM@80m. The duty pump and standby pump are XA series pump.

Diesel fire pumps are suitable for the discharge of heavily polluted industrial wastewater, sewage discharge stations in major residential areas, water distribution systems in urban sewage treatment plants, drainage stations in civil air defense systems, water supply equipment in waterworks, sewage discharge in hospitals and hotels, municipal engineering construction sites, mine auxiliary machines , Rural biogas digesters, farmland irrigation and other industries. Sewage and dirt with conveyor belt particles can also be used for clean water and weakly corrosive media.

The application of fire pumps is not only in fire protection systems, but a variety of fire pumps are gradually showing their superior strength in industrial production and urban construction. This includes the implementation and expansion of high-end technologies for industrial and urban water supply and drainage, and high-rise water supply under pressure.

Fire pump system include Diesel engine pump + Electric motor pump+Jockey pump. Sometime, it just include Electric pump+Jockey pump.
Its power: 1.0 to 20kw, flow: 15-300gpm, head: 3-10bar, 50/60hz. The material: Cast iron or SS, bronze impeller.

DJ Fire Pump Application Scope:
Equipment for warehouses, docks, airports, petrochemical, power plants, liquefied gas, textiles, ships, oil tankers and other occasions of a fire service.

Using Instruction:
Altitude ¡Ü 1000m;
Ambient temperature: +5 ¡ãC ~ +40 ¡ãC;
Relative humidity: <= 90%.

This series of diesel fire-fighting pump sets has a wide range of head and flow, which can fully meet the fire-fighting water supply in various occasions of warehouses, docks, airports, petrochemicals, power plants, liquefied gas stations, textiles and other industrial and mining enterprises.

25≤Q≤100GPM
30≤H＜120m

The minimum fire rated pressure of EDJ small fire fighting package set water supply equipment is 3 bar, and the minimum fire rated capacity is 25 GPM. EDJ small fire fighting package set water supply equipment includes at least two power or power source driven pumping units, pressure tanks, pipes, valves and accessories, measurement and control instruments, control cabinets, outdoor rain cover, etc.

1.Flow：30-9000 GPM
2.Head： 3-20 Bar 40-300 psi
3.Power：Diesel & Electric Pump:1.5-710kw Jockey Pump:0.55-160kw
4.Speed：740-2900 r/min
The outdoor fire pump set is designed to enhance fire safety in various applications. From powering fire hydrants and stabilizing sprinkler systems to safeguarding residential areas, industrial buildings, and high-risk environments, the Outdoor Fire Pump Set delivers optimal performance and unmatched reliability.

Experience unmatched performance and reliability with the EDJ Fire Pump.
Designed to meet the highest standards of fire protection, our pump offers exceptional functionality and dependability.
Whether for residential, commercial, or industrial applications, the EDJ Fire Pump provides the peace of mind you need for effective fire prevention and suppression. Trust in our advanced technology and ensure the safety of your property with the EDJ Fire Pump.

The fire pump is used to pump all kinds of liquids. It is an ideal pump and fire protection system for creating non-leakage, non-pollution civilized workshops and civilized factories. It is often installed on fire trucks, fixed fire extinguishing systems or other fire-fighting facilities for transportation Special pumps for liquid extinguishing agents such as water or foam solutions. Fire pumps are widely used in environmental protection, water treatment, fire protection and other departments.

Fire Pump Packages
Fire pump package comprises a combination of electric motor driven pump, diesel engine driven and electric motor driven jockey pumps that supply for fire suppression systems.
Fire pump package is required to comply with Local Civil Defense Authority regulations and International Codes of Practice e.g. National Fire Protection Association (NFPA).

Types of pumps used for fire service include: end suction, horizontal split case, vertical split case, vertical inline and vertical turbines.

What is a jockey pump? While its name may remind you of one of those little guys that tells a race horse where to go, a jockey pump is actually used to maintain a high pressure in a fire suppression system.
