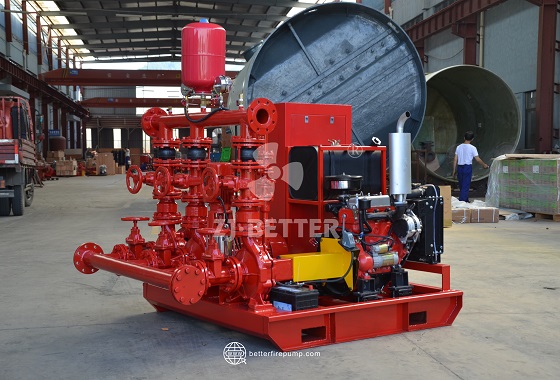

Packaged Fire Pump Equipment – Multi-Component Integration for Simplified Fire Water Supply Installation

Fire water pump refers to the water supply pump used to ensure the system pressure and water volume in the fire water supply system. The fire pump transfers energy to the water through the rotation of the impeller, thereby increasing the kinetic energy and pressure energy of the water, and transporting it to the fire extinguishing equipment to meet the water volume and water pressure requirements of various fire extinguishing equipment. Such as fire hydrant pumps, sprinkler pumps, fire transfer pumps, etc.

Regular maintenance is crucial to keep fire pumps in optimal condition. It involves inspecting, lubricating, and replacing components as needed. Maintenance helps prevent malfunctions, ensures reliability, and extends the life of the pump.

The electric fire pump is an important part of the fire water supply system. The electric fire pump consists of two parts, the motor and the pump. The pump and the motor are coaxial. The pump structure includes pump body, impeller, pump cover, mechanical seal and other components. It is suitable for building fire protection engineering, high-rise building water supply, water tower water supply, long-distance transmission, cycle pressurization, and also suitable for heating rooms, boilers, hot water stations, and cold and hot water circulation.

The EEJ fire pump set consists of two electric pumps + one jockey pump, which is suitable for fire protection occasions such as warehouses, docks, airports, petrochemicals, power plants, liquefied gas, textiles, ships, and oil tankers.

High-efficiency electric fire water supply systems have the advantages of precise pressure control, rapid automatic response and intelligent energy-saving management. They are suitable for building and industrial fire protection projects and ensure stable and efficient fire water supply operation.

Problem one lower water or no water
1, electric pump reversal will lead to the pump doesn’t produce water.
2, the pump can’t normal water into the same can’t be water, check whether the water bay or check stopcock is blocked or stuck, pumping pipe if there’s a leak will also affect the water into the water.
3, the pump internal corridor of the wear and tear or connection out, check the pump and motor coupling wear and tear, loose and impeller is worn.

Problem two ：
1 、 Check the power force as described over, including connectors, switches, fuses,etc.
2. Check whether the impeller in the pump is jammed by foreign objects
3. A burnt motor will also affect the launch of the pump.

Problem three the water affair is big for a while and small for a while
1. still, the lack of depth down the well may beget this problem, If the pump is a submersible pump.
2. The inflow rate of the pump is too high and needs to be replaced with a suitable pump.

A multistage pump is a multistage centrifugal pump in which two or more impellers are installed on the pump shaft and connected in series to work together. A horizontal multistage centrifugal pump refers to a multistage pump in which centrifugal pumps with two or more impellers are combined. The multistage centrifugal pump is characterized by high efficiency and energy saving, wide range of use, special purpose, stable operation, long service life, convenient installation and maintenance, etc.

Compact diesel fire pumps offer independent power, portable design, and reliable water supply, widely used in high-rise, industrial, and off-grid sites for fire safety.

Diesel engine fire pump, as a fixed fire extinguishing equipment, has been widely used in fire diversion, especially in emergencies such as no power supply or abnormal power supply, it can also be equipped with other diesel engines as power engines according to the needs of users.

The intelligent fire-fighting diesel pump system integrates a diesel engine, a fire-fighting centrifugal pump, an intelligent control cabinet, and remote monitoring functions. It boasts advantages such as automatic start-up, independent power, continuous water supply, intelligent monitoring, remote management, and high reliability. The product is widely used in industrial plants, high-rise buildings, petrochemical plants, data centers, airports, ports, and municipal fire protection projects. It provides efficient, stable, and safe emergency fire-fighting water supply solutions for modern fire-fighting water supply systems, meeting the application needs of intelligent fire protection and large-scale fire protection projects.

This is a set of EDJ fire pump set, which consists of electric pump + diesel pump + jockey pump. The three pumps are automatically started and stopped. When the joceky pump detects that the electric pump cannot operate normally, the diesel engine pump will start automatically. Can also be used, the fire pump set is widely used in various emergency firefighting occasions.

The continuous outdoor operation-specific air-cooled diesel water pump adopts an integrated design of high-performance air-cooled diesel engine and high-efficiency self-priming pump body. It has the advantages of independent power, fast self-priming speed, low fuel consumption, stable continuous operation, simple maintenance and adaptability to harsh environments. It is widely used in flood control and drainage, agricultural irrigation, construction, mine drainage, forest fire prevention and emergency water supply projects, and is an ideal solution for outdoor water conveyance and drainage operations.

Explore the advanced diesel engine fire pump system with remote monitoring capabilities, offering reliable performance, automatic control, and real-time data tracking for high-risk and power-outage-prone environments.

The integrated fire pump unit features a compact design, space-saving structure, reduced installation and maintenance costs, and intelligent control. Ideal for urban buildings, industrial zones, and special environments, it’s the optimal choice for modern fire protection systems.

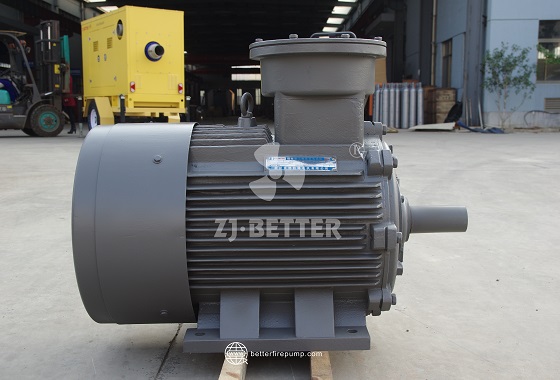

The horizontal electric fire pump adopts a high concentricity transmission structure and stable motor drive, which reduces operating vibration and noise, and provides reliable flow and pressure. It is suitable for building and industrial fire water supply systems.

There are many types of fire pumps to deal with more fire water environments. Fire pumps are used in buildings, factories, warehouses, etc., with different performance requirements and quality requirements. The commonly used types of fire pumps include electric fire pumps, diesel fire pumps, horizontal single-stage fire pumps, vertical single-stage/multi-stage fire pumps Pumps and horizontal double-suction fire pumps, etc., the specific head, flow and power are selected according to different projects.

EDJ-OTS is a powerful tool designed specifically for firefighting emergencies, aiming to deliver exceptional performance and reliability. It is the ideal choice for fire departments and industrial facilities, ensuring quick and efficient response to fires when it matters most. Whether you are a member of a fire department or responsible for industrial facility safety management, EDJ-OTS is your ultimate choice for a fire pump. Choose EDJ-OTS and safeguard your safety with unparalleled firefighting capabilities.

High-reliability electric fire pump units are suitable for sprinkler and fire hydrant systems, featuring stable pressure output, rapid start-up performance, continuous water supply capability, and comprehensive safety control design, providing reliable emergency water supply for building and industrial fire protection systems.

Diesel engine fire pumps are aimed at fire-fighting water supply for large-flow, high-lift occasions, and the diesel engine has good starting characteristics, fast starting speed, strong overload capacity, energy saving and does not need to be on standby all the time. The fire pump has complete performance and wide spectrum range. Single-stage single-suction pumps, multi-stage single-suction pumps, self-priming pumps and long-axis pumps can also be used in parallel, with a wide range of flow and pressure. Fire pumps are widely used for fire water supply in warehouses, docks, airports, petrochemical, power plants and other industrial and mining enterprises.

The fire pump is a high-tech product, which is characterized by high efficiency, fast pumping speed, very strong sealing, and low leakage, which can also be said to be no leakage. The use of fire pumps is very extensive, of course, the most important one is used in the fire protection industry, it is also used in water treatment, environmental protection industry and so on. Among these uses, the fire protection industry uses the most. The fire protection industry makes full use of the advantages of fire pumps, which is the advantage of fast pumping. Because most of the work in the fire protection industry is to extinguish fires, the fire pump plays a very important role. Fire pumps are not just used in the firefighting industry. Fire pumps are also used in many other places. In larger industries, such as industry, as well as urban water supply and drainage, and water transportation for the construction of high-rise buildings, there is also water delivery over relatively long distances. There are also smaller industries, such as heating and boilers.

There is a combination equipment that uses diesel as fuel for firefighting, but it is usually used as a backup firefighting facility, because it can only be started automatically when the firefighting signal comes, and the electric water pump fails or the power supply is cut off, that is, the diesel engine firefighting pump set. It is very different from the electric fire pump in that it has its own independent power supply and storage system.

The fire-fighting pressure stabilizing water supply unit adopts a vertical multi-stage centrifugal pump, an intelligent pressure control system, and automatic water supply technology. It has advantages such as constant pressure operation, automatic start and stop, energy efficiency, safety protection, and modular design. It is widely used in high-rise buildings, industrial plants, hospitals, data centers, airports, ports, and municipal fire-fighting water supply systems, providing a stable and reliable fire-fighting pressure maintenance solution for modern fire protection engineering.

1.Flow：30-9000 GPM
2.Head： 3-20 Bar 40-300 psi
3.Power：Diesel & Electric Pump:1.5-710kw Jockey Pump:0.55-160kw
4.Speed：740-2900 r/min
The EDJ Fire Pump Set is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water.

The multi-pump parallel pressure-stabilizing fire pump system has high stability and intelligent constant pressure control capabilities. Through the coordinated operation and automatic switching of multiple pumps, it can achieve continuous and stable pressure in the fire pipeline network, effectively reduce energy consumption, improve system reliability, and is suitable for the fire pressure stabilization water supply needs of high-rise buildings, industrial parks and large public facilities.

The direct-drive horizontal fire pump features a compact structure, stable operation, high efficiency, high reliability, and low maintenance costs. It is suitable for fixed fire water supply systems in buildings, industries, and municipalities, ensuring a continuous and stable output of fire water in emergency situations.

Vertical fire pump systems with pressure tanks achieve stable constant pressure water supply through multi-stage pressurization and intelligent control, effectively reducing water hammer and frequent start-stop cycles. They are widely used in high-rise buildings, commercial complexes, and industrial fire protection systems, providing efficient and reliable fire pipeline pressure solutions.

Diesel engine fire pump can not be short of a good helper, the rapid development of social science and technology, it has been widely used in the society. The use of diesel engine fire pump is very wide, for the fire has played a very important role, with it can also solve a lot of problems we can not solve before, to bring great help to firefighters, save time and effort is out of efficiency.

The DJ Fire Pump Set is a combination system consisting of a diesel engine pump and a jockey pump, designed for fire safety in the construction and industrial sectors. This system utilizes the powerful power output of the diesel engine pump, ensuring reliable operation even in the event of a power outage. The jockey pump maintains a constant water pressure, optimizing the performance of the fire suppression system. The DJ Fire Pump Set offers a reliable and efficient solution for prompt response to fire incidents, making it an essential component for protecting property and ensuring occupant safety.

Using Instruction:
Altitude: ¡Ü 1000m;
Ambient temperature: +5 ¡ãC ~ +40 ¡ãC;
Relative humidity: <= 90%. Scope of application of fire pump set£º Equipment for warehouses, docks, airports, petrochemical, power plants, liquefied gas, textiles, ships, oil tankers and other occasions of a fire service.

As a fixed firefighting equipment, diesel engine fire pumps are widely used in firefighting and shunting operations, especially when there is no power supply or no power supply (main power supply).
Diesel fire pumps can also be equipped with other diesel engines as power engines according to user needs. It is mainly composed of diesel engine, fire pump, connection device, fuel tank, radiator, battery, intelligent self-control panel, etc. The crankshaft of diesel engine fire pump has high overall rigidity, high strength and high torque transmission efficiency. Adopt international advanced technology, sliding bearing, plate-fin cooler, upper heat exchanger, rotary oil filter, double cooling system. Diesel engine fire pump performance, smoke and noise indicators meet national standards.
