DJ Diesel Fire Pump

Fire pumps work by drawing water from a water source (such as a storage tank or a dedicated water supply) and then increasing the pressure to deliver water through the fire sprinkler system or hoses. They are typically powered by electric motors or diesel engines.

Diesel engine fire pumps can be used to transport clear water below 80°C without solid particles or liquids with physical and chemical properties similar to water. Under the premise of meeting the fire protection conditions, the requirements of the living and production water supply conditions are taken into account. The products can be used not only in independent fire water supply systems, but also in fire protection and domestic shared water supply systems, as well as in construction, municipal, industrial and mining, water supply and drainage, ships, field operations and other occasions.

The electric fire pump set is a fire pump powered by an electric motor, and generally consists of a set of fire pumps, electric motors, control cabinets and auxiliary devices. Because the electric motor fire pump set is composed of these parts, it forms a powerful fire protection and power effect, and provides a strong water source support for various fire hydrant systems and sprinkler systems in the building.

The diesel engine fire pump and the electric fire pump are “one standby and one use”. The control boxes of the diesel engine fire pump and the electric fire pump should be kept independent of each other, and the diesel engine fire pump must be used as the backup pump of the electric fire pump, and cannot be used as backup for each other.

The pump start signal in the fire extinguishing system is directly connected to the electric fire pump control box, and it is not suitable to be connected to the diesel engine fire pump control box at the same time. The pump start fault signal of the electric fire pump control box and the pump start signal in the fire extinguishing system are used as the automatic start pump start signal of the diesel engine fire pump control box, and the line is connected to the control box of the diesel engine fire pump. The pump start failure signal of the diesel engine fire pump control box received an alarm from the fire control center. After receiving the alarm, the authorized personnel rushed to the pump room to force the diesel pump to start in an emergency.

Instructions for use of fire pump set:
Altitude: ¡Ü 1000m;
Ambient temperature: +5 ¡ãC ~ +40 ¡ãC;
Relative humidity: <= 90%. Scope of application of fire pump set: Equipment for warehouses, docks, airports, petrochemical, power plants, liquefied gas, textiles, ships, oil tankers and other occasions of a fire service.

Fire pumps, while primarily designed for fire protection, can serve alternative purposes in various industrial and commercial applications. For instance, they are employed in processes requiring high-pressure water, such as industrial cleaning, irrigation, and certain manufacturing processes.

In some cases, fire pumps can be integrated into a facility’s infrastructure to provide pressurized water for non-emergency functions. This multi-purpose use can provide cost savings and operational efficiency by utilizing the existing fire pump system for other applications.Fire pumps, while primarily designed for fire protection, can serve alternative purposes in various industrial and commercial applications. For instance, they are employed in processes requiring high-pressure water, such as industrial cleaning, irrigation, and certain manufacturing processes.

In some cases, fire pumps can be integrated into a facility’s infrastructure to provide pressurized water for non-emergency functions. This multi-purpose use can provide cost savings and operational efficiency by utilizing the existing fire pump system for other applications.

Diesel engine fire pumps can be used to transport clear water below 80°C without solid particles or liquids with physical and chemical properties similar to water. On the premise of meeting the fire protection conditions, the requirements of the living and production water supply conditions are taken into account. The products can be used not only in independent fire water supply systems, but also in fire protection and domestic shared water supply systems, as well as in construction, municipal, industrial and mining, water supply and drainage, ships, field operations and other occasions.

Regular maintenance is crucial for ensuring the reliability of firefighting pumps. This includes checking and changing oil, inspecting hoses and connections, testing the pump regularly, and following the manufacturer’s maintenance guidelines.

The dual power fire pump is composed of a fire water pump, a double shaft extension motor and a diesel engine. One end of the output shaft of the double shaft extension motor is connected with the input shaft of the fire pump, and the other end of the output shaft of the double shaft extension motor is One end of a clutch is connected, and the other end of the clutch is connected with the output shaft of the diesel engine. The fire water pump, the double-shaft extension motor, the clutch and the diesel engine are all fixed on the base. The double shaft extension motor, the clutch and the diesel engine are respectively electrically connected with a control circuit through an action drive circuit. With dual-power fire pumps, there is no need to configure a second fire pump, which reduces floor space and saves manufacturing costs.

1. Electric fire pump: various end suction pumps and split pumps.
2. jockey pump: vertical, small flow, higher lift than electric or diesel pumps.
3. Control panel: Automatically control the water pump with overload and overcurrent protection.
4. Accessories: suction pipe, discharge pipe with flange, battery, gate valve, check valve, flexible expansion joint, pressure switch, pressure gauge, base, etc

Facilities can ensure the readiness and operational readiness of diesel fire pumps by implementing a comprehensive maintenance program, conducting regular testing and inspections, and providing ongoing training for personnel responsible for operating and maintaining the pumps. This may include performing weekly or monthly visual inspections, conducting quarterly or annual performance tests, and scheduling preventive maintenance tasks based on the manufacturer’s recommendations and industry best practices. Additionally, facilities should maintain accurate records of all maintenance activities and testing results to demonstrate compliance with regulatory requirements and ensure accountability.

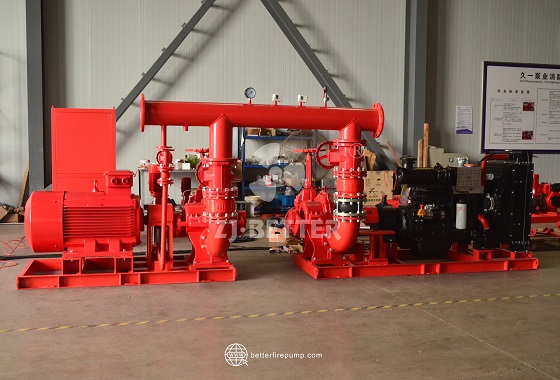

This is a set of EDJ fire pump set, which consists of electric pump + diesel pump + jockey pump. The three pumps are automatically started and stopped. When the joceky pump detects that the electric pump cannot operate normally, the diesel engine pump will start automatically. Can also be used, the fire pump set is widely used in various emergency firefighting occasions.

1. Export: All fire pump components should be carefully inspected and packed to ensure that they meet all applicable export laws and regulations. All components should be properly marked or labeled to be easily identified even in a foreign country.

2. Import: The importing country may require certain types of documents to be presented with the fire pumps. These documents may include an export permit, a commercial invoice, a packing list, or perhaps even an insurance policy. If exporting to a foreign country, a customs clearance may also be required.

3. Regulatory Requirements: Fire pump components may fall under certain regulatory requirements, either imposed by the importing country, or by the country of origin. It is important to check with the relevant regulatory authorities to ensure that the equipment meets all applicable regulations.

4. Certification: Depending upon the type of pump being imported, or exported, certain certification may be required. Certification of fire pumps may include UL or ITU ratings, as well as other safety or performance criteria. It is important to comply with all such regulations to ensure the safety of the installed fire pump system.

1. Increase the suction head: Increasing the suction head, or the vertical distance between the suction inlet and the centreline of the impeller, can reduce the chances of cavitation.

2. Increase the impeller speed: Increasing the impeller speed can also reduce the chance of cavitation.

3. Install an air separator: An air separator in the suction line can help remove any entrained air from the system, thus reducing the chance of cavitation.

4. Install a venturi: A venturi installed in the suction line can help create an area of low pressure, which can reduce the chance of cavitation.

5. Install a priming valve: A primer valve can help reduce the suction head and thus reduce the chance of cavitation.

6. Install a vacuum breaker: A vacuum breaker can be used to reduce the pressure in the suction line, thus reducing the chance of cavitation.

7. Improve the suction piping: Improving the suction piping, such as using larger pipes, can reduce the chance of cavitation.

8. Inspect the pump and suction line: Inspecting the pump and suction line for any signs of wear or damage can help reduce the chance of cavitation.

The diesel engine fire pump set has the characteristics of high degree of automation, superior performance, complete protection functions, reasonable structure, simple installation, and high cost performance. When the factory suddenly fails, the diesel engine emergency water supply pump set will automatically start to supplement the pressure of the pipe network.

The EDJ Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations. With its lightweight and portable design, coupled with versatile functionality, the EDJ Diesel Engine Fire Pump System is suitable for various scenarios. Whether you are part of a fire department or an industrial enterprise, the EDJ Diesel Engine Fire Pump System is your indispensable rescue partner.

Diesel engine fire pump is also called “engineering diesel engine fire pump set”. Its national standard model is XBCL/Q, where L and Q represent the lift value and flow value of the fire pump respectively. This type of diesel engine fire pump set has good starting performance, compact structure, humanized design, convenient maintenance, simple and convenient use, and high degree of automation. It is a very good fire pump.

The diesel engine fire pump is suitable for unattended emergency water supply systems. The product has the characteristics of good technology, high degree of automation, superior performance, complete protection functions, reasonable structure, simple installation, and high cost performance. pipe network pressure.

The diesel engine fire pump is usually used as a backup facility, so it will only start automatically when the fire signal comes, and when the electric water pump fails or the power supply is cut off. When it has a device for starting the pump at ultra-low pressure, its matching electric water pump control cabinet should also have a device for starting the pump at ultra-low pressure, and the lower limit of the two pumps should have a certain pressure difference.

Electric pump + diesel pump + joceky pump
The three pumps are automatically started and stopped. When the joceky pump detects that the electric pump cannot operate normally, the diesel engine pump will start automatically. Can also be used, the fire pump set is widely used in various emergency firefighting occasions.

Diesel engine fire pump is a kind of mechatronics equipment that is directly driven by diesel engine fire pump and can start and complete water supply in a short time. Diesel engine pump set is driven by diesel oil without external power supply. Diesel engine pump is suitable for agricultural irrigation, emergency rescue, smelting, hangars, petrochemical oil depots, power plants, liquefied gas stations, textiles and other fire-fighting water supply occasions, especially in the absence of electricity, When the power grid is not satisfied, it is the safest choice to use a diesel engine to drive the water pump.

Series OTS pumps are single stage,double suction with horizontally split casings.They are suitable pumping unsettled water, clean water ,non-drinkable or hydrocarbon at a temperature not exceeded 105¡æ.
Series OTS pumps are available for capacities Of 68-18000m3/hr and heads of 70-200m.They are adoptable in water works irrigation and drainage pumping stations,fire fighting systems, marine applications as well as refinery industry,etc.

Key components include the pump itself, the engine or motor, an intake system, a discharge system, and various safety features such as pressure relief valves.

The EEJ Fire Pump System is an innovative solution designed to enhance fire safety in various settings. With exceptional performance and efficiency, the EEJ Fire Pump System delivers high pressure and large flow capacity, enabling rapid and effective fire suppression. Its intelligent features, including real-time monitoring and remote control capabilities, contribute to the system’s reliability and ease of operation. Overall, the EEJ Fire Pump System is a reliable choice for safeguarding lives and properties, making it an ideal fire protection solution for commercial buildings, industrial facilities, and residential areas.

The so-called self-priming pump does not require irrigation before starting, and after a short period of operation, the water can be sucked up by the function of the pump itself and put into normal operation.

Self-priming pumps are divided into the following categories according to their working principles:

(1) Gas-liquid mixing type (including internal mixing type and external mixing type);

(2) Water ring wheel type;

(3) Jet type (including liquid jet and

1.Flow: 50-5000GPM
2.Head: 3-20Bar
3.Speed: 740-2900r/min
4.Power: Electric pump: 1.5-710 kw, Jockey pump: 0.55-160kw
The EEJ Fire Pump System is an innovative solution designed to enhance fire safety in various settings. With exceptional performance and efficiency, the EEJ Fire Pump System delivers high pressure and large flow capacity, enabling rapid and effective fire suppression.Overall, the EEJ Fire Pump System is a reliable choice for safeguarding lives and properties, making it an ideal fire protection solution for commercial buildings, industrial facilities, and residential areas.

Reliable because of professionalism, specializing in the production of industrial centrifugal pumps for 20 years, to provide you with the best quality and most intimate service.
if you are interested in our pumps, welcome to contact us!

Fire pump systems, like any mechanical equipment, can face various challenges that impact their performance and reliability. Some common issues include:

Cavitation: This occurs when there’s excessive pressure drop in the suction piping, causing vapor bubbles to form within the pump. Cavitation can damage the pump and reduce its efficiency.

Overheating: Fire pumps generate heat during operation. Overheating can lead to pump failure, so proper cooling and ventilation are essential.

Blockages: Debris or obstructions in the piping can impede water flow, reducing the pump’s effectiveness.

Wear and Tear: Like any mechanical equipment, fire pumps experience wear over time. Regular maintenance is essential to replace worn parts and ensure longevity.

Identifying and addressing these challenges promptly is essential for maintaining the functionality and reliability of fire pump systems.

Fire pump set consists of one main pump coupled to electric motor, one stand by pump coupled to diesel engine, jockey pump, pressure vessel, controller for manual or automatic operation of system and standard accessories mounted on base frame.

1.Flow: 50-5000GPM
2.Head: 3-20Bar
The EEJ Fire Pump System is an innovative solution designed to enhance fire safety in various settings. With exceptional performance and efficiency, the EEJ Fire Pump System delivers high pressure and large flow capacity, enabling rapid and effective fire suppression.Overall, the EEJ Fire Pump System is a reliable choice for safeguarding lives and properties, making it an ideal fire protection solution for commercial buildings, industrial facilities, and residential areas.
