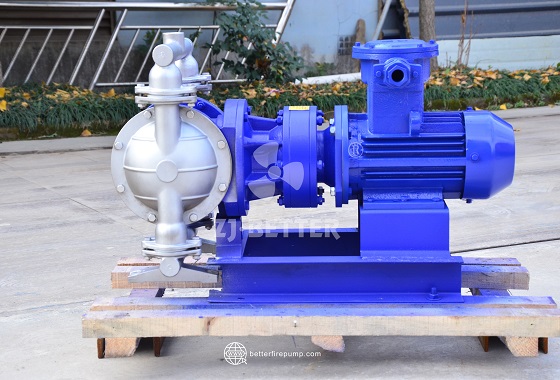

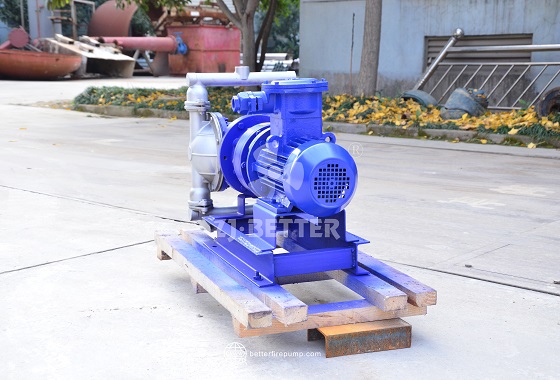

Electric Pressure Type Foam Proportioning Systems Enable Stable Foam Concentrate Delivery

Yes, there are regulations and standards set by local, state, and national authorities that dictate the installation, testing, and maintenance of fire pumps. Compliance with these regulations is essential for ensuring the effectiveness of fire protection systems.

DJ fire pump group is mainly composed of diesel engine and regulator pump, can be selected in the state of no power supply.

Using Instruction:
Altitude ¡Ü 1000m;
Ambient temperature: +5 ¡ãC ~ +40 ¡ãC;
Relative humidity: <= 90%. Application Scope: Equipment for warehouses, docks, airports, petrochemical, power plants, liquefied gas, textiles, ships, oil tankers and other occasions of a fire service.

Learn how to read fire pump performance curves to evaluate flow, pressure, and efficiency for selecting the right pump and ensuring optimal fire protection.

Key Considerations:
High-rise buildings require adequate water pressure to reach upper floors efficiently.
NFPA 14 recommends a minimum residual pressure of 100 psi (6.9 bar) at the highest standpipe outlet.
Fire pump discharge pressure should be calculated based on:
Elevation height (0.433 psi per foot of elevation).
Friction loss in pipes, fittings, and valves.
Minimum operating pressure required at hose connections.

The diesel engine fire pump set has the characteristics of good starting characteristics, strong overload capacity, compact and reasonable structure, convenient maintenance, simple and reliable use, etc. The unit is equipped with protection functions such as overspeed, low oil pressure, three start failures, high water temperature, low oil level, and low battery voltage. At the same time, it can be connected with the customer’s automatic fire alarm device or the fire control system control cabinet produced by our factory to realize the function of remote monitoring.

A fire pump controller manages the operation of the fire pump, including starting, stopping, and monitoring performance. It ensures the pump operates correctly during an emergency and complies with NFPA 20 requirements.

1. All personnel must be familiar with the operation manual and the safety regulations of the fire pump before use.

2. When the fire pump is in operation, no one should be allowed to approach the pump or the suction and discharge pipelines.

3. The suction and discharge pipelines should be inspected regularly to ensure that there are no blockages, as blockages can cause the pump to malfunction.

4. The pressure of the pump should be checked regularly to ensure that it is within the range specified by the manufacturer.

5. Before starting the fire pump, all valves in the suction and discharge pipelines must be checked to make sure they are open.

6. All safety devices should be checked regularly to make sure they are in good working condition.

7. The motor should be checked regularly to make sure it is in good working condition.

8. The fuel tank should be checked regularly to make sure it is filled with the correct type and amount of fuel.

9. The temperature of the pump should be checked regularly to make sure it is not too high.

10. If a fault is detected, the pump should be shut down and the fault should be rectified before it is restarted.

Perform a flow test: Measure pressure at different flow rates.
Run a churn test: Operate the pump at shut-off to check performance.
Simulate power failure: Ensure backup diesel systems kick in.
Record test results: Compare to manufacturer and NFPA benchmarks.

The highly reliable diesel fire pump is equipped with an intelligent control system that supports automatic start-up and multiple safety protections. It features high flow rate, high head, and stable continuous water supply capabilities, making it suitable for industrial plants, high-rise buildings, municipal and emergency fire protection systems.

Stable and reliable electric fire pump systems provide efficient water supply, intelligent control, and continuous operation capabilities. They are suitable for building and industrial fire protection systems, ensuring stable pressure and flow output at critical moments.

High-performance diesel fire pumps, featuring high-temperature and corrosion resistance, are suitable for industrial plants, chemical bases, power plants, and high-rise buildings. Their independent diesel powertrain ensures stable water supply even in power outages, while their intelligent control system enables automatic start-up and remote monitoring. With their robust construction, easy maintenance, and efficient and reliable operation, they provide a robust and safe emergency water supply solution for various firefighting projects.

The multi-functional pressure-stabilizing fire pump unit integrates a pressure-stabilizing pump, pressure tank and intelligent control system to achieve precise pressure regulation and efficient operation. It is widely used in various fire water supply systems to improve overall efficiency and stability.

The fully automatic pressure-maintaining fire pump system is designed to meet the urgent water supply needs in firefighting scenarios by integrating advanced pump technology with intelligent control systems. Its unique pressure stabilization mechanism rapidly adjusts the system pressure at startup, ensuring that sufficient water pressure is available during the early stages of a fire. The automated control module offers round-the-clock intelligent monitoring and self-diagnosis, guaranteeing stable and efficient operation under extreme conditions. With a compact and modular design that simplifies installation and maintenance, this system is ideal for high-rise buildings, underground garages, industrial parks, and other locations where continuous fire water supply is critical. The system not only significantly improves firefighting efficiency but also reduces operational costs, making it the ideal solution for building modern, intelligent fire protection systems.

High-safety electric fire pump system designed for critical fire protection areas, delivering reliable high-pressure water supply with intelligent control, rapid response, and multiple safety protections. Ideal for data centers, industrial facilities, and commercial buildings requiring stable and secure firefighting performance.

1.Flow：30-9000 GPM
2.Head： 3-20 Bar (40-300 psi)
3.Power：Diesel & Electric Pump:1.5-710kw Jockey Pump:0.55-160kw
4.Speed：740-2900 r/min
The EDJ Fire Pump Set includes diesel engine pumps, electric pumps and jockey pumps.
In various fields, our products find applications in large hotels, hospitals, schools, office buildings, supermarkets, commercial residences, subway stations, train stations, airports, various transportation tunnels, petrochemical plants, thermal power plants,oil storage tanks, large warehouses, industrial and mining enterprises, seawater injection, etc.

UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

The integrated diesel fire pump unit combines a diesel engine, fire pump, control system, fuel cooling system, and piping. It offers advantages such as independent power, stable water supply, automatic control, and compact installation, making it suitable for large-scale fire protection projects.

1. Manual Operation: This method involves manually operating the fire pump by an operator who is trained to handle it.

2. Automatic Operation: This method uses an automatic sensing and control system to start and stop the fire pump when needed.

3. Pressure Control: This method uses a pressure switch to monitor the pressure in the system and activate the fire pump when necessary.

4. Flow Control: This method uses a flow switch to monitor the flow in the system and activate the fire pump when necessary.

5. Variable Frequency Drives (VFDs): This method uses a VFD to provide precise control over the speed and torque of the fire pump. This helps to ensure that the fire pump is operating optimally.

6. Remote Monitoring: This method uses a remote monitoring system to provide real-time data on the condition of the fire pump and to allow for remote operation if necessary.

Fire pressurized and stabilized water supply equipment can make the fire water supply pipeline system the most unfavorable point always maintain the fire pressure, and the use of air pressure water tank always stored in the 30 seconds of fire water, to ensure the fire pump before the operation of the fire spray water; The device uses the operating pressure set by the air pressure water tank to control the operating condition of the pump and achieve the function of pressurization and pressure stabilization.

1.Flow：30-9000 GPM
2.Head： 3-20 Bar (40-300 psi)
3.Power：Diesel & Electric Pump:1.5-710kw Jockey Pump:0.55-160kw
4.Speed：740-2900 r/min
The EDJ Fire Pump Set includes diesel engine pumps, electric pumps and jockey pumps.
In various fields, our products find applications in large hotels, hospitals, schools, office buildings, supermarkets, commercial residences, subway stations, train stations, airports, various transportation tunnels, petrochemical plants, thermal power plants,oil storage tanks, large warehouses, industrial and mining enterprises, seawater injection, etc.

Pre-assembled fire pump packages with integrated piping designed for fixed fire protection projects, offering easy installation, stable performance, reduced on-site work, and reliable water supply for hydrant and sprinkler systems.

EJ dual-power fire pump group is used for various fire hydrants and sprinkler fire main pumps; it can more reliably ensure water safety in the event of a fire. EJ dual-power fire pump set is designed and manufactured by Beide Technology Co., Ltd. in accordance with GB 27898.5-2011 Fixed Fire Water Supply Equipment Part 5 <>. It meets the new 3CF requirements and has obtained 3CF certification for fire protection products. EJ small dual-power diesel engine fire pump is used for various fire hydrants and sprinkler fire main pumps; it is suitable for various fire boosting and pressure stabilizing pump occasions; various villas, residential areas and other fire protection systems; industrial and civil building fire protection systems ;Applicable to various oil depots, oil loading and unloading docks, logistics parks and other places with high fire protection requirements.

Instructions for use of fire pump set:
Altitude: ¡Ü 1000m;
Ambient temperature: +5 ¡ãC ~ +40 ¡ãC;
Relative humidity: <= 90%. Scope of application of fire pump set: Equipment for warehouses, docks, airports, petrochemical, power plants, liquefied gas, textiles, ships, oil tankers and other occasions of a fire service.

Lifecycle management involves:

Regular Maintenance: Implement a scheduled maintenance program to keep the pump in optimal condition.
Upgrades and Retrofits: Upgrade or retrofit components as technology advances or as system requirements change.
End-of-Life Planning: Plan for the eventual replacement of the pump system, ensuring minimal disruption to fire protection coverage.
Performance Monitoring: Continuously monitor performance to identify when parts or the entire system need replacement or overhaul.

Diesel fire pump systems provide reliable, independent power for emergency firefighting when electricity fails. With strong performance, automatic start, high pressure, and durable design, they ensure continuous water supply for high-rise buildings, factories, chemical plants, and remote areas. Ideal for dependable fire protection and energy-efficient operation.

High-pressure steady-flow fire pump systems offer advantages such as efficient water supply, stable pressure, and intelligent control, ensuring rapid startup and continuous water supply during fire emergencies. The equipment utilizes pressure-resistant and corrosion-resistant materials, variable frequency energy-saving technology, and a fully automatic control system, making it suitable for high-rise buildings, industrial facilities, power stations, and other locations, providing a safe and reliable high-pressure water source for fire protection systems.

The intelligent control system for vertical fire pump sets enables automatic start-stop, multi-pump coordination, fault protection, and remote monitoring, ensuring continuous water supply, efficient fire extinguishing, and low maintenance costs. It is widely applicable to fire protection systems in high-rise buildings, industrial parks, and public facilities.

The electric fire pump control system features intelligent control, high energy efficiency, and multiple safety protections, ensuring rapid response and stable operation of the fire water supply system in emergency situations. Utilizing advanced PLC control and a highly efficient motor drive, it supports automatic start/stop and remote monitoring. Suitable for high-rise buildings, industrial plants, and municipal fire protection projects, it provides reliable power for modern fire protection systems.

The small DJ fire pump equipment is suitable for small public places or fire emergency use. The small fire pump occupies a small area and is easy to maintain. The pump set is composed of diesel engine pump + jockey pump, which is widely used and is not affected by the mains.
