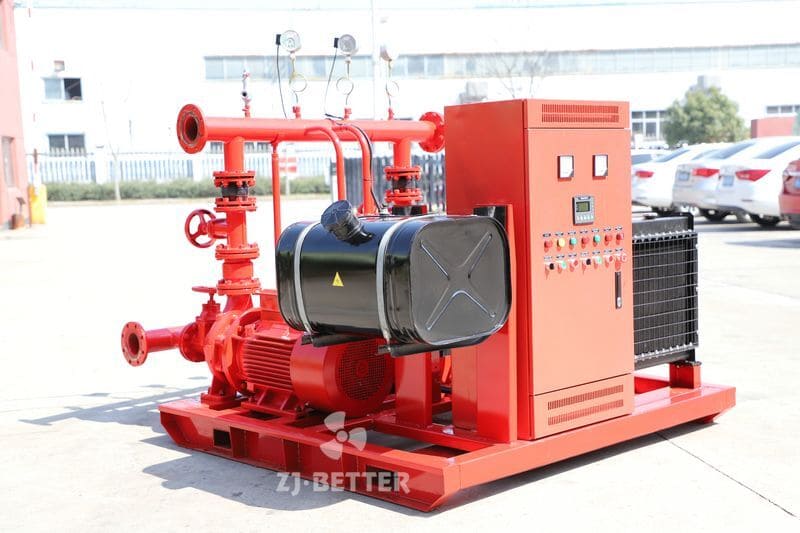

High Efficiency EDJ Fire Pump Set

High-reliability electric fire pump units are suitable for sprinkler and fire hydrant systems, featuring stable pressure output, rapid start-up performance, continuous water supply capability, and comprehensive safety control design, providing reliable emergency water supply for building and industrial fire protection systems.

Discover the essential role of jockey pumps in fire protection systems. Learn how they maintain system pressure, extend main pump lifespan, and improve emergency response performance while ensuring compliance with international fire safety standards.

Assess existing capacity: Ensure your pump can handle increased system demands.
Upgrade to UL-listed pumps: Improve compliance and reliability.
Consider adding controllers: Modern control systems enhance efficiency and monitoring.
Retest and recalibrate: Verify system performance post-upgrade.

The weather-resistant box-type diesel fire pump unit is designed for municipal and industrial fire protection systems. It features independent diesel power, box-type protective structure, and stable and efficient water supply performance. It can start up quickly and run continuously in power outages and harsh environments, meeting the needs of high head and large flow fire water. It is suitable for outdoor deployment, industrial parks, and emergency fire protection scenarios.

1.Flow：30-9000 GPM
2.Head： 3-20 Bar 40-300 psi
3.Power：Diesel & Electric Pump:1.5-710kw Jockey Pump:0.55-160kw
4.Speed：740-2900 r/min
The EDJ Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations.

It’s a customized EJ fire pump set consisting of electric pump, jockey pump along with control panel, and accessories. It is equipped with priming tank for doing negative suction.

In cold climates, jockey pumps must be designed and installed with specific considerations to prevent freezing and ensure reliable operation. This includes using heat tracing or insulation on piping and pump components exposed to low temperatures to prevent ice formation that could block water flow. Jockey pumps may also be housed in heated enclosures or indoor pump rooms to maintain a consistent temperature around the equipment. Additionally, the selection of antifreeze solutions or special materials resistant to cold temperatures can help protect the pump from damage. Regular monitoring and maintenance are also essential to ensure that the jockey pump remains operational and that the fire protection system is always ready to respond, even in harsh winter conditions.

Diesel-driven mobile fire pumps have independent power, rapid deployment and stable water supply capabilities, and are suitable for municipal and industrial emergency fire fighting scenarios. They can provide reliable emergency water supply in the absence of fixed fire-fighting facilities or under power outage conditions.

Diesel engine-driven fire pumps are designed and manufactured in accordance with GB “Fire Pumps”. Comply with CCCF certification requirements. The advantage of its product is that when a fire occurs, the power supply fails, and the electric fire pump group cannot be put into use normally, the diesel engine fire pump group can be automatically put into operation to ensure the normal fire fighting. Compared with the electric fire pump set, the second advantage is that it does not need long-term investment in power supply, saving the mains power supply transformer and normal expenses. Diesel engine fire pumps are equipped with various automatic functions to meet customer requirements, ensure long-term normal standby status of the equipment, and put it into fire fighting work at any time. The diesel engine fire pump set is also suitable for various emergency backup pump occasions.

1. Manual Operation: This method involves manually operating the fire pump by an operator who is trained to handle it.

2. Automatic Operation: This method uses an automatic sensing and control system to start and stop the fire pump when needed.

3. Pressure Control: This method uses a pressure switch to monitor the pressure in the system and activate the fire pump when necessary.

4. Flow Control: This method uses a flow switch to monitor the flow in the system and activate the fire pump when necessary.

5. Variable Frequency Drives (VFDs): This method uses a VFD to provide precise control over the speed and torque of the fire pump. This helps to ensure that the fire pump is operating optimally.

6. Remote Monitoring: This method uses a remote monitoring system to provide real-time data on the condition of the fire pump and to allow for remote operation if necessary.

Flow: 30-500GPM
Head: 3-20Bar
Speed: 740-2900r/min
Frequency: 50 HZ or 60 HZ

The ED Dual-Power Fire Pump System combines electric and diesel engine pumps to ensure uninterrupted fire protection and a reliable water supply. In the event of power outages or electrical failures, the diesel engine pump seamlessly takes over, guaranteeing continuous operation of the fire protection system. This dual-power configuration offers both reliability and flexibility, providing comprehensive coverage for fire safety needs.

Compact fire jockey pump system designed for commercial building fire protection systems. Maintains stable pipeline pressure, prevents frequent main pump startup, and ensures reliable fire water supply. Features automatic pressure control, energy-efficient operation, durable structure, and stable performance for sprinkler and hydrant fire protection networks.

This horizontal split case centrifugal fire pump is a high-efficiency, stable, and reliable firefighting solution designed to meet high-flow demand in large buildings and industrial facilities. Its unique double-suction design delivers higher flow rates and outstanding hydraulic performance, significantly enhancing fire suppression efficiency. Constructed with thickened cast iron, the pump is corrosion-resistant and pressure-resistant, ensuring durability in harsh environments. It can be driven by either an electric motor or diesel engine, offering flexible installation options. Widely used in high-rise buildings, airports, ports, power plants, petrochemical sites, and warehouses, this pump is a vital component for rapid response and effective firefighting.

Flow: 5-400L/s
Head: 3-20Bar
Material:
HT200, SS304, Bronze
Caliber:65-350mm
Pressure: 0.3~1.5MPa
Speed:740-2900r/min

Discuss the applicability of fire pumps in residential buildings, particularly high-rise or large complexes where water pressure may be insufficient for fire suppression. Explain what factors make fire pumps necessary in certain residential scenarios, such as building height and local fire code requirements, and outline how they can be adapted for residential use, ensuring safety without excessive water pressure.

The intelligently controlled fire pump unit integrates high-efficiency drive, automated operation, and multiple safety protections. It is suitable for high-rise buildings, industrial parks, warehousing and logistics, and municipal projects. It ensures rapid water supply and stable operation in the event of a fire, comprehensively improving the reliability and safety of the fire protection system.

Fire pumps are classified into various types based on their specific applications and operational characteristics. The common classifications of fire pumps include:

Horizontal Split Case Fire Pumps: These pumps have a horizontally split casing, which allows easy access to internal components for maintenance and repairs. They are typically used in large-scale fire protection systems, such as industrial facilities, commercial buildings, and high-rise structures. Horizontal split case pumps are known for their high flow rates and can handle a wide range of pressures.

Vertical Turbine Fire Pumps: Vertical turbine pumps have a vertical shaft and are designed to operate with submerged impellers. These pumps are commonly used in water sources such as wells, rivers, or lakes. Vertical turbine fire pumps are ideal for locations where space is limited, as they have a small footprint. They are also suitable for applications that require high pressures but lower flow rates.

Vertical Inline Fire Pumps: Vertical inline pumps have a vertical design with the motor located above the impeller. These pumps are compact and space-saving, making them suitable for installations where floor space is limited. Vertical inline fire pumps are commonly used in commercial and industrial applications, such as office buildings, hospitals, and manufacturing facilities.

End Suction Fire Pumps: End suction pumps have a single impeller mounted on the end of the shaft. They are widely used in various applications, including fire protection systems. These pumps are known for their simplicity, ease of maintenance, and cost-effectiveness. End suction fire pumps are typically used in smaller buildings, residential properties, and light commercial applications.

Multistage Fire Pumps: Multistage pumps consist of multiple impellers arranged in series. Each impeller adds pressure to the water, allowing these pumps to deliver high pressures. Multistage fire pumps are suitable for applications that require high-pressure delivery, such as high-rise buildings, industrial plants, and sprinkler systems with demanding pressure requirements.

Diesel-Driven Fire Pumps: Diesel-driven fire pumps are powered by diesel engines, providing a reliable source of power in situations where electricity may be unavailable or unreliable. These pumps are commonly used in remote locations, off-grid areas, and critical infrastructure where continuous operation is essential. Diesel-driven fire pumps are known for their durability and ability to deliver high flow rates and pressures.

It’s important to note that these classifications are not exhaustive, and variations of fire pumps exist within each category. The choice of fire pump classification depends on factors such as system requirements, available space, flow rates, pressure requirements, and power sources. Consulting with fire protection experts or system designers can help determine the most suitable fire pump classification for a specific application.

Flow-1000GPM
Head-106psi
Power-100HP=75KW
EJ fire pump is composed of electric pump + jockey pump
Those pictures display OTS series electric motor pump. OTS double suction split-case centrifugal pump has a wide range of performance, with the ability for a variety of uses.

The DJ Fire Pump Set is a combination system consisting of a diesel engine pump and a jockey pump, designed for fire safety in the construction and industrial sectors. This system utilizes the powerful power output of the diesel engine pump, ensuring reliable operation even in the event of a power outage. The jockey pump maintains a constant water pressure, optimizing the performance of the fire suppression system. The DJ Fire Pump Set offers a reliable and efficient solution for prompt response to fire incidents, making it an essential component for protecting property and ensuring occupant safety.

1. The fire pump should be capable of supplying the rated flow and pressure for a duration of two hours, at a rate of 150% of the rated capacity, and should not be affected by prolonged operation.

2. The fire pump should be able to start up automatically by a power source when activated.

3. All switches, gauges, alarms, controllers and monitoring systems should be certified to UL and FM standards.

4. The fire pump should be sized to meet the NFPA 20 standard for fire pump design.

5. The fire pump should be able to handle the maximum system flow and pressure required for the building.

6. The fire pump driver should match the requirements of the pump and meet NFPA 20 requirements for fire pump drivers.

7. The fire pump should be installed according to NFPA 20 standards for fire pump installation.

8. The fire pump should be tested and inspected in accordance with NFPA 25 standards for testing and inspection of fire pumps.

1. Electric fire pump: various end suction pumps and split pumps.
2. jockey pump: vertical, small flow, higher lift than electric or diesel pumps.
3. Control panel: Automatically control the water pump with overload and overcurrent protection.
4. Accessories: suction pipe, discharge pipe with flange, battery, gate valve, check valve, flexible expansion joint, pressure switch, pressure gauge, base, etc

BETTER auto-start diesel fire pump system offers independent, intelligent fire protection for industrial and municipal use. NFPA20 & CE certified.

Diesel engine fire pumps are relatively common in life, and their performance requirements are relatively high. In normal use, more attention must be paid to maintenance to prolong the service life of the pump. Because diesel fire pumps are not omnipotent, there will be some problems in daily use, so when choosing equipment, we must pay attention to whether the quality of the equipment has reached the national standard. As fire equipment, all kinds of equipment must be Ensure performance, avoid affecting use in disasters, and delay rescue.

1.Flow：30-9000 GPM
2.Head： 3-20 Bar 40-300 psi
3.Power：Diesel & Electric Pump:1.5-710kw Jockey Pump:0.55-160kw
4.Speed：740-2900 r/min
The EDJ Fire Pump Set is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water.

The fire pumps used in the complete set of diesel engine fire pumps can be the IS series single-stage type, the S series new single-stage two-stage type, and the D-type series segmental multi-stage type produced by our company. The diesel engine water pumps used in this series of equipment are made of domestic or imported high-quality products. They have the characteristics of good starting characteristics, strong overload capacity, compact structure, convenient maintenance, simple use, and high degree of automation. They are advanced and reliable fire-fighting equipment.

Heavy-duty electric fire pump systems provide high flow and high head support for large fire protection networks. They have advantages such as high-efficiency motor drive, intelligent control, stable water supply and durable structure. They are suitable for high-rise buildings, industrial parks, petrochemical bases and warehousing and logistics scenarios, providing reliable and continuous water supply for complex fire protection needs.

The high-efficiency electric fire pump module features high-speed response, stable water supply, intelligent control, and energy-saving performance, making it suitable for professional fire protection solutions in high-rise buildings, industrial facilities, and complexes.

Zhejiang Better Technology Group Co., Ltd. mainly produces various industrial pumps, electric motor fire pumps, diesel engine fire pumps, fire-fighting special water supply equipment, fire-fighting dual-power water supply equipment, general-purpose fire-fighting gas top pressure water supply equipment, fire pump control cabinets, fire-fighting frequency conversion automatic Inspection cabinets, fire protection dual power supply cabinets, submersible sewage pumps, pipeline pumps, chemical pumps, oil pumps, slurry pumps, vacuum pumps and complete sets of vacuum equipment, non-negative pressure water supply equipment, frequency conversion constant pressure water supply equipment and water tanks of various materials, fire protection, Domestic pump room control cabinets, etc., products are widely used in agriculture, machinery, chemical industry, papermaking, medicine, food, sugar, electronics, metallurgy, ceramics, water diversion, printing and dyeing, building materials and other fields.

Vertical fire pumps that operate continuously for extended periods offer stable flow and pressure output, occupy a small footprint, and are reliable in operation. They are suitable for high-rise buildings, industrial plants, and various fire protection systems, ensuring continuous, stable, and safe fire water supply.

When facing the fire risks in modern buildings and industrial facilities, firefighting efficiency and reliability are the foremost considerations. Electric fire pumps are the ideal solution for tackling fire challenges in complex environments, offering high efficiency, stability, and smart control systems. Whether in high-rise buildings, industrial parks, chemical plants, or power facilities, electric fire pumps ensure exceptional performance.

Firstly, electric fire pumps are equipped with high-performance electric motors, ensuring the stable operation of the pump through intelligent control systems. In the event of a fire, the system responds quickly and activates the pump, providing a steady water flow to extinguish the fire. Especially in complex environments such as narrow spaces, high-temperature settings, or areas requiring highly precise control, the electric fire pump continues to operate efficiently, ensuring the successful execution of firefighting tasks.

Moreover, the smart control system of the electric fire pump continuously monitors the pump’s operational status, conducts self-diagnostics, and adjusts pressure and flow, ensuring no performance degradation during firefighting operations. Its compact design allows it to fit into spaces with limited room while maintaining top-notch performance.

With the increasing emphasis on environmental protection and energy efficiency, the low energy consumption and high performance of electric fire pumps make them increasingly popular in the market, playing a critical role in optimizing firefighting efficiency.
