How does the modular design of this fire pump enhance the ease of installation and maintenance?

Flow：80-4000 GPM
Head：3-15 Bar (45-220 psi)
Power：11-1000 kw
Caliber：65-300 mm
Frequency：50 or 60 Hz
Working Pressure：≤1.6 MPa

Flow：50-7500 GPM
Head：3-20 Bar 40-300 psi
Power：11-1000 kw
Caliber：50-400 mm
Frequency：50 or 60 Hz

The XBC-ISO pump set is suitable for emergency firefighting scenarios, particularly ideal for high-rise water supply, building firefighting, central air conditioning water circulation, industrial process system circulation, cooling systems, boiler water supply, industrial water supply and drainage, water plant supply, irrigation in plantations, and more. This firefighting pump set is equipped for emergency rescues and can operate efficiently even during power outages. Moreover, its end-suction design simplifies operation and saves installation time.

Flow :5~180L/S
Pressure:1.0~2.4MPa
Power:20~630kW
Working Pressure:≤2.5MPa

Standard:
       UL    Flow：50-2000 GPM    Head： 80-250 PSI
       NON-UL   Flow：50-5000GPM   Head： 40-250 PSI

The biggest difference between a diesel engine fire pump and an electric water pump is that it has its own independent power supply system—the battery. Therefore, the start-up and operation of the diesel engine fire pump can be completely separated from the mains.

The diesel engine fire pump is usually used as a backup facility, and it will only start automatically when the electric water pump fails or the power is cut off when the fire signal comes. When equipped with an ultra-low pressure pump starting device, the matching electric pump control cabinet should also be equipped with an ultra-low pressure pump starting device, and the lower limit of pump starting should have a certain pressure difference. Of course, it is also possible to design a control system that is more suitable for customer needs according to customer requirements.

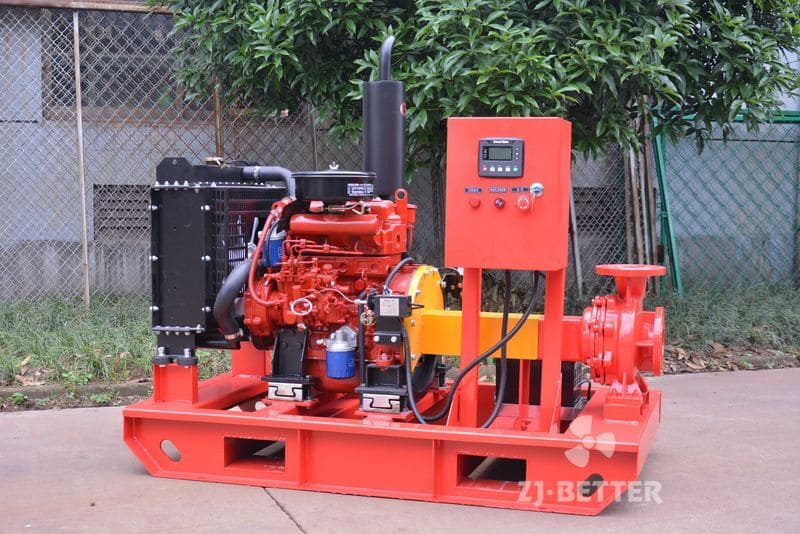

Experience efficient fluid transfer with the XBC-XA Diesel End Suction Pump. With its unique end suction design and powerful diesel engine, this pump offers reliable performance and exceptional pumping capacity. It is suitable for a wide range of applications, from industrial fluid transfer to fire protection systems. The XBC-XA Diesel End Suction Pump features automatic operation, advanced control systems, and automatic fault detection for added safety and convenience. Choose this versatile pump for reliable and efficient fluid transfer in various industries.

Diesel engine fire pumps are very versatile and play a very important role in fire protection. Using it can also solve many problems that we could not solve before, and it has brought great help to firefighters. It saves time and effort. efficiency.

Flow: 1500-6000 gpm / 63-380l/s

Head:5-12 bar / 72.5-174 psi

Caliber: 150-350mm

Power: 220-710kW

Speed: 1500r/min

Working Pressure: 1.6MPa

-UL Standard:
Flow：100-3000 GPM
Head： 90-250 PSI
– NON-UL Standard:
 Flow：100-10000GPM
Head： 40-250 PSI

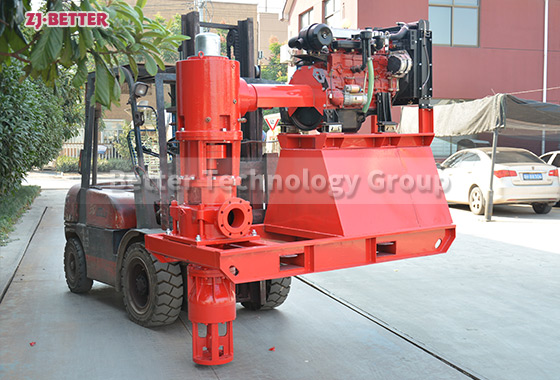

The XBC-JC Diesel Engine Driven Vertical Turbine Fire Pump is a reliable and efficient hydraulic solution designed for extracting water from deep wells and hot springs. With its unique long shaft design and advanced technology, this pump delivers powerful pumping capacity and lift height, swiftly transporting large volumes of water to desired locations. Its compact structure makes it suitable for various complex working environments, including construction sites and agricultural irrigation. Equipped with an automatic start-stop function, the XBC-JC pump intelligently controls its operation, saving energy and reducing maintenance costs. It finds versatile applications in firefighting, urban water supply systems, and hot spring facilities, providing dependable hydraulic support for smooth operations.

It is suitable for the fire protection requirements of high-rise buildings, hotels, commercial buildings, various civil buildings, subways, light rails, railway stations, industrial and mining enterprises and other important departments. Domestic water supply system.

Fire pumps need to operate efficiently and reliably in high-temperature or high-pressure environments to effectively tackle emergency fire situations. Our diesel fire pump system is specifically designed for these extreme conditions, offering powerful performance and excellent resistance to high temperature and pressure, making it an essential component in modern fire protection systems.

This diesel engine-driven fire pump provides a continuous and stable water supply, maintaining outstanding operational efficiency even in high-temperature or high-pressure conditions. The design combines a high-performance engine with an intelligent control system to ensure that the pump starts quickly and maintains a stable water flow during a fire, meeting the demand for high flow and high-pressure firefighting.

Additionally, the diesel fire pump is made with high-temperature and corrosion-resistant materials, ensuring it performs efficiently even in harsh environments. Whether it’s an industrial park, a high-rise building, or a high-risk petrochemical facility, this fire pump offers robust fire prevention capabilities to protect critical infrastructure.

·UL Standard:
Flow：50-2000 GPM
Head： 80-250 PSI
·NON-UL  Standard:
Flow：50-5000GPM
Head： 40-250 PSI

In order to match the life cycle of the fire pump, the inspection of the diesel engine and the fire pump should be checked regularly, and attention should be paid to the matching degree of the replaced or repaired parts and timely adjustment and correction. We need to check the fuel tank storage and oil quality of the diesel engine fire pump daily; the usage of the battery; (Different brands of diesel engines may be different, and should be inspected and maintained according to the specific model and structure of the diesel engine). If you encounter problems that cannot be solved by yourself, you should first communicate with the manufacturer to solve them.

Diesel fire pump has the characteristics of high efficiency, wide performance range, safe and stable operation, low noise, long life, easy installation and maintenance.

There are many types of fire-fighting equipment. Fire hydrants and fire extinguishers are the most common types. The other is the fire pump, which is the heart of the fire-fighting system and plays an important role in pressurizing and supplying water to the fire-fighting system. Among the numerous fire pump products, fire pumps can be divided into multi-stage and single-stage fire pumps.

The scientific name of diesel engine self-priming pump is: self-priming diesel pump unit, also known as diesel engine-driven non-clogging pump, is mainly used for municipal sewage and waterlogging prevention projects, garden irrigation, industrial drainage, sewage and other wide uses. According to the type, it can be divided into, Ordinary type, outdoor type and mobile type (two-wheel mobile type and four-wheel mobile type).

Diesel engine fire pump is a common and necessary facility. Only when the fire signal comes, and the electric water pump fails or the power supply is cut off, the diesel engine fire pump will automatically start. Diesel engine fire pump is installed together with electrical instruments, with complete functions, compact structure, automatic fault alarm, receiving start signal, and can automatically complete the start-up procedure and fast full-load operation. , Enough to ensure that the diesel engine fire pump is started in a low temperature environment, the whole system of the diesel engine fire pump is safe, reliable, and easy to use.

The multistage pump has the advantages of high efficiency, reliability, durability, low noise, convenient maintenance and wide application range. D series single-suction multistage centrifugal pumps are widely used in high-rise buildings, fire protection, boiler feed water, high-pressure cold and hot water circulation of cooling water systems, parallel booster pump water supply systems and various irrigation fluid transportation. It is used to transport water or similar physical and chemical liquids with no solid particles and a temperature below 80 °C. Our factory’s products are all tested before leaving the factory to ensure that there are no quality problems.

The XBC-JC Diesel Engine Driven Vertical Turbine Fire Pump is a reliable and efficient hydraulic solution designed for extracting water from deep wells and hot springs. With its unique long shaft design and advanced technology, this pump delivers powerful pumping capacity and lift height, swiftly transporting large volumes of water to desired locations. Its compact structure makes it suitable for various complex working environments, including construction sites and agricultural irrigation. Equipped with an automatic start-stop function, the XBC-JC pump intelligently controls its operation, saving energy and reducing maintenance costs. It finds versatile applications in firefighting, urban water supply systems, and hot spring facilities, providing dependable hydraulic support for smooth operations.

The diesel engine fire pump is a fire pump directly driven by a diesel engine, which can start and complete the water supply in a short time. Diesel engine pump set is driven by diesel oil without external power supply. Diesel engine pump is suitable for agricultural irrigation, rescue and disaster relief, smelting, hangars, petrochemical oil depots, power plants, liquefied gas stations, textiles and other fire water supply occasions, especially in the absence of electricity, When the power grid cannot operate, it is the safest choice to use a diesel engine to drive the water pump.

Diesel engine fire pumps are often used for emergency water supply in high-rise buildings, water companies, steel plants, wineries, chemical plants, hotels, hospitals, and other large-scale projects. Diesel engine fire pump is suitable for unattended emergency water supply system. The product has the characteristics of advanced technology, high degree of automation, superior performance, complete protection functions, reasonable structure, simple installation, and high cost performance. net pressure. Diesel engine fire pumps are selected according to different working conditions: single-stage single-suction centrifugal pumps, high-pressure multi-stage pumps, double-suction split pumps, etc.

The diesel engine fire pump has automatic, manual and fault self-checking functions. It can monitor the working status of the whole process, restore the function of failure start, automatic pre-lubrication and automatic restart of preheating, so that the equipment start-up is safer and more reliable. It has the functions of central control room remote control, remote control and field bus connection. The battery is fully automatic floating charge (constant current, constant voltage, trickle charge) mode to ensure that the battery is in a standby state at any time. Diesel engine fire pump is easy to use, equipped with remote instrument and instrument, which can be connected to the control center as needed, easy to install and use, and easy to maintain.

Operating a diesel engine fire pump efficiently can help save energy and reduce fuel consumption. Here are some practices to consider for energy-saving operation of a diesel engine fire pump:

Proper Sizing: Ensure that the fire pump is appropriately sized for the specific application. An oversized pump can lead to excessive energy consumption. Consult with fire protection experts or engineers to determine the correct pump size based on the required flow rate and pressure for your specific needs.

Regular Maintenance: Perform regular maintenance on the diesel engine fire pump to ensure it operates at its optimal efficiency. This includes regular inspection and cleaning of filters, lubrication of moving parts, checking and adjusting belt tension, and monitoring fuel and oil quality. Proper maintenance helps keep the engine running smoothly, reducing energy waste due to inefficiencies or malfunctions.

Optimal Operating Speed: Operate the diesel engine fire pump at its optimal speed. Running the pump at the highest necessary speed while still meeting the required flow and pressure will minimize energy consumption. Avoid unnecessarily high engine RPMs that can result in energy wastage.

Variable Speed Control: Consider using a pump control system with variable speed capabilities. This allows the engine to operate at different speeds based on the required demand. The system adjusts the engine speed to match the required flow and pressure, saving energy by avoiding constant operation at maximum speed.

Automatic Shutdown: Utilize automatic shutdown features when the fire pump is not in use. This prevents unnecessary idling and reduces fuel consumption. Programmable shutdown systems can be set to turn off the engine after a specific period of inactivity.

Efficient Water Management: Implement efficient water management practices to reduce unnecessary water usage. Properly design the fire protection system, including the layout of sprinklers and fire hydrants, to ensure water is effectively distributed only where needed. This helps minimize the demand on the fire pump, reducing energy consumption.

Training and Awareness: Provide training to operators and firefighters on energy-saving practices and the efficient operation of the diesel engine fire pump. Promote awareness of energy conservation and encourage responsible use of the equipment. Properly trained operators can make informed decisions and take actions to optimize energy efficiency during firefighting operations.

Energy Monitoring: Install energy monitoring systems to track and analyze the energy consumption of the diesel engine fire pump. This allows for better understanding of energy usage patterns and identifies areas for improvement. Energy monitoring systems provide valuable data to optimize operations, identify inefficiencies, and implement energy-saving strategies.

By implementing these energy-saving practices, you can reduce fuel consumption, minimize energy waste, and operate the diesel engine fire pump in an efficient and environmentally responsible manner. Energy efficiency not only reduces operational costs but also contributes to sustainable firefighting practices.

·UL Standard:
Flow：50-2000 GPM
Head： 80-250 PSI

·NON-UL  Standard:
Flow：50-5000GPM
Head： 40-250 PSI

1.The packing of our products conforms to the national standard, meet customer needs, and standard handling and transportation.

2.All products are tested before delivery to ensure no quality problems.

3.As for after-sales problems, we can dispatch engineers to solve them on site, so you can buy our products at ease.

Flow：50-5000 GPM
Head：3-16 Bar
Power：11-1000 kw
Frequency：50 or 60 Hz
The Diesel Engine End Suction Fire Pump set is suitable for emergency firefighting scenarios, particularly ideal for high-rise water supply, building firefighting, central air conditioning water circulation, industrial process system circulation, cooling systems, boiler water supply, industrial water supply and drainage, water plant supply, irrigation in plantations, and more. This firefighting pump set is equipped for emergency rescues and can operate efficiently even during power outages. Moreover, its end-suction design simplifies operation and saves installation time.

Standard:
       UL    Flow：50-2000 GPM    Head： 80-250 PSI
       NON-UL   Flow：50-5000GPM   Head： 40-250 PSI

Standard:
       UL    Flow：50-2000 GPM    Head： 80-250 PSI
       NON-UL   Flow：50-5000GPM   Head： 40-250 PSI
