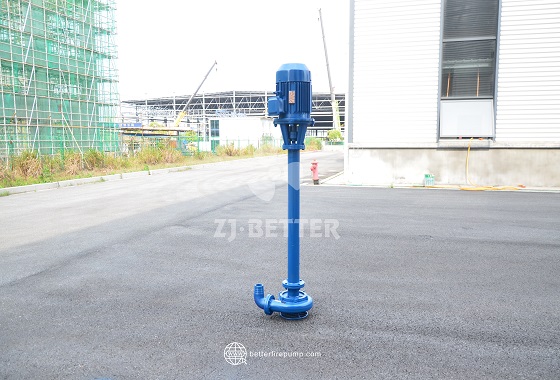

Long-Shaft Vertical Fire Pump for Deep-Well Water Intake Applications
Vertical long-shaft fire pumps are specifically designed for water extraction from deep wells or low-level water sources. Featuring a top-mounted drive motor, a long-shaft transmission system, and a vertical pump configuration, they support a wide range of flow rate and head specifications, making them suitable for industrial facilities, fire-fighting reservoirs, and fire water supply systems that draw from deep-water sources.
A long-shaft vertical fire pump is a type of fire water supply equipment designed with a vertical axial structure. It is suitable for applications involving deep wells, fire water reservoirs, or other scenarios where the water level is low or water must be drawn from a significant depth. The equipment typically consists of a top-mounted drive motor, a long-shaft transmission assembly, a vertical pump column, and a submerged pump unit at the bottom. The motor is installed at ground level or on the upper structure of the pump station, transmitting power to the submerged pump unit via a long shaft, which enables the system to extract and deliver fire-fighting water from deep sources. Compared to traditional horizontal pumps, this vertical, long-shaft configuration maximizes the use of vertical space and reduces the required ground footprint. Furthermore, the pump unit and shaft configuration can be adjusted based on the depth of the water source, making it an ideal solution for fire pump stations with limited space or deep-seated water sources. By submerging the pump unit directly into the water source, the suction path is shortened—bypassing the limitations often associated with conventional suction piping—which effectively facilitates water extraction from deep wells and low-level reservoirs. The equipment can be selected based on the specific requirements of the fire protection system, including flow rate, head, water source depth, and pipeline network resistance. Parameters such as the number of pump stages, shaft length, column length, and drive power can be adjusted to accommodate fire water supply projects of various scales. Vertical turbine-style pumps typically utilize a multi-stage impeller design, achieving higher head requirements through progressive pressurization. The pump shaft and bearing assemblies ensure power transmission and rotational stability; a well-engineered shaft system helps minimize vibration and mechanical wear. The top-mounted motor allows for convenient routine inspection and maintenance, while the submerged pump unit can be constructed from materials tailored to the specific water quality and medium, ensuring an optimal balance of mechanical strength, corrosion resistance, and service life. These vertical turbine fire pumps typically offer flow capacities ranging from approximately 30 to 5,000 GPM and pressure ratings between 3 and 20.5 bar. Exact performance specifications depend on the specific pump model, number of stages, installation depth, and drive configuration; final selection should be based on performance curves and project-specific technical requirements. This equipment is suitable for use in industrial facilities, warehouses, petrochemical plants, docks, power stations, and any other locations that require fire-fighting water to be drawn from deep wells or low-level water sources. During engineering design, a comprehensive assessment must be conducted—covering static water levels, minimum operating water levels, required submergence depth, pump shaft length, total head, flow rate, drive power, water quality, and conditions for installation and maintenance—to ensure that the pump unit complies with relevant fire safety codes and system requirements. Through the use of vertical long-shaft drives, deep-water intake structures, and flexible performance configurations, vertical long-shaft fire pumps provide an effective fire-water supply solution for deep wells and low-water-level sources.
