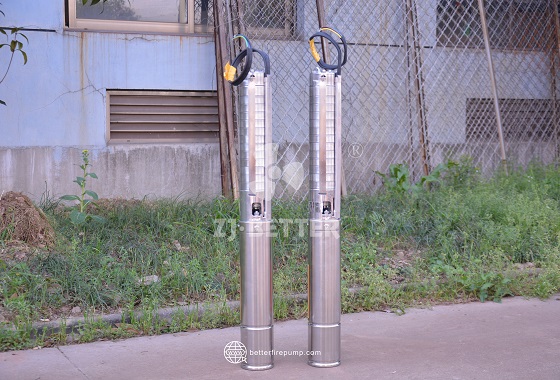

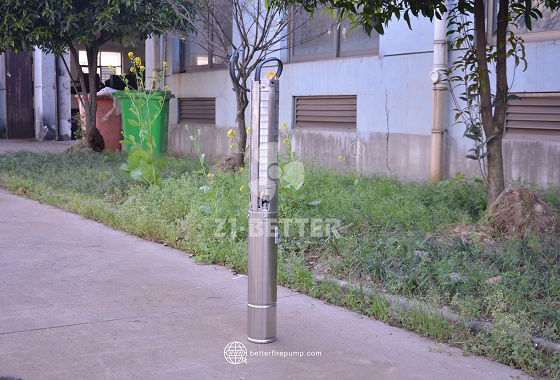

Deep Well Fire Water Pump – Submersible Motor Drive for Specialized Fire Water Source Systems
Deep-well fire pumps feature an integrated design combining a submersible motor with the pump body. They are suitable for deep wells, underground water sources, and specialized fire-fighting water supply applications, with models that can be flexibly selected based on flow rate, head, water source depth, and installation conditions.
A deep-well fire pump is a type of fire-fighting water supply equipment driven by a submersible motor, designed for use in deep wells or other specialized water sources. The unit features an integrated vertical configuration, combining the drive motor with the pump body; specific models can be selected based on the depth of the water source, required flow rate, head (pressure), and installation conditions. Unlike traditional pump sets that must be housed in a surface-level pump room, this submersible design allows the primary pumping components to be submerged directly within the water source. This offers superior adaptability for installations in deep wells, reservoirs, or underground water sources, while simultaneously reducing the space required for surface-level equipment. The submersible motor drives an impeller, utilizing the principles of a centrifugal pump to deliver water from the source into the fire-fighting piping network. When the fire-fighting system demands higher pressure or longer transport distances, the appropriate pump model, number of stages, and motor power can be selected to ensure the pump’s performance aligns precisely with the system’s requirements. The slender, elongated pump body is particularly well-suited for space-constrained environments, such as wellbores; the unit’s dimensions can be tailored to the well diameter and installation depth, offering a space-saving alternative to conventional horizontal pump sets. Because the unit operates while submerged—with the intake positioned directly within the water source—it eliminates many of the constraints typically associated with the layout of surface-level suction piping (provided that the unit is installed correctly and the minimum submergence depth is maintained). According to manufacturer specifications, these submersible fire pumps are available in a wide range of sizes, flow rates, heads, and power ratings: diameters can span from 25 mm to 800 mm, flow rates can reach 2–600 m³/h, and motor power can be configured up to 355 kW (with exact performance specifications varying by model). For deep-well fire-fighting water supply projects, selection should not be based solely on motor power. Instead, a comprehensive assessment is required—accounting for factors such as wellbore diameter, static and dynamic water levels, effective water depth, design flow rate, required system head, pipeline friction losses, and water quality—to ensure the selected pump type and number of stages allow for stable operation under the intended design conditions. The integrated design of the submersible motor and pump unit eliminates the need for certain surface-level transmission components and connections found in traditional pump assemblies. Its compact structure offers a distinct advantage for projects where constructing a large surface-level pump house is unfeasible, or where underground water sources must be utilized for fire-fighting water supply. Depending on project requirements, the system can be equipped with control cabinets, pressure-sensing instruments, and protective devices to manage pump startup, shutdown, and operational status; the specific control scheme should be determined based on the fire protection system design and equipment configuration. In settings such as industrial facilities, warehouses, underground spaces, deep-well water sources, and other specialized fire-water supply scenarios, these deep-well fire pumps can be customized to suit specific water source conditions and fire-protection parameters. By being installed in a submerged configuration, they can draw water from deep sources and deliver it to the designated piping network at the required pressure. In summary, the key features of this product include a submersible motor drive, a slender vertical configuration, adaptability to deep-water installation, and flexible performance specifications—offering effective fire-water supply solutions for unique water-source conditions where conventional surface-mounted fire pumps may not be suitable.
