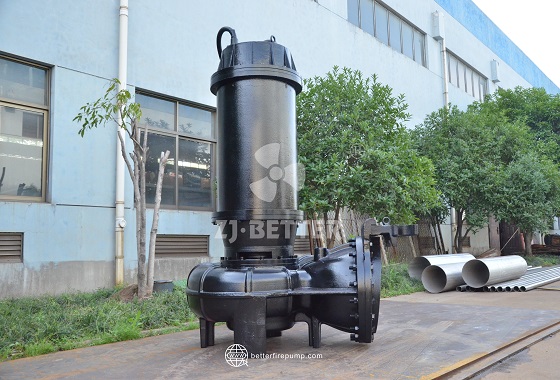

High-Flow Submersible Fire Pump – Optimized Inlet and Outlet Design for Fire Water Supply Systems
High-capacity submersible fire-fighting pumps feature an integrated design combining a submersible motor with a fire pump. They offer flexible configuration options based on specific requirements for flow rate, head, pipe diameter, and power, making them suitable for use in fire-fighting reservoirs, industrial facilities, warehouses, and fixed fire-water supply systems.
A high-flow submersible fire pump is a fire-fighting water supply unit that integrates a submersible motor with a fire pump body. It is designed for use in fire-fighting reservoirs, water storage facilities, underground water sources, and other scenarios requiring a submersible installation. Featuring a vertical submersible design with the motor and pump body combined into a single unit, the equipment can operate while fully submerged in the water source. This eliminates the need for a dedicated pump room or long suction pipelines—typical requirements for conventional surface-mounted pump sets—making it particularly well-suited for fire-fighting projects with limited installation space or deep-seated water sources. A key advantage of this product is its broad flow-rate capacity; specific models can be selected based on the actual water demand of a fire-fighting system, ensuring the equipment meets the supply requirements for fire-fighting pipe networks of various scales. According to official product specifications, the XBD-WQ series of submersible fire pumps offers port diameters ranging from 25 to 800 mm, flow rates from 2 to 600 m³/h, power ratings from 0.37 to 355 kW, and rotational speeds approximately between 740 and 2900 r/min (exact performance parameters depend on the specific model). In terms of hydraulic design, the pump operates on the centrifugal principle: the high-speed rotation of the impeller converts mechanical energy into kinetic and pressure energy, enabling water from the source to enter the distribution network at the required flow rate and pressure. To address high-flow water supply needs, the appropriate pump model and motor power can be selected based on the design flow rate, head, pipe diameter, and water source conditions, ensuring that the pump’s operating point aligns as closely as possible with the actual site requirements. Because the unit is submersible, the pump intake is positioned close to the water source, which shortens the suction path and simplifies the layout on the suction side—provided that the installation is performed correctly and the water source conditions are met. The integrated design of the motor and pump body results in a compact overall structure, which reduces the footprint required for surface equipment and facilitates installation within or alongside reservoirs and water storage facilities. For systems utilizing fixed water sources—such as fire-fighting reservoirs—submersible fire pumps can draw water directly from underwater, removing the need to house the entire pump assembly outside the reservoir and offering superior spatial adaptability for specific project environments. The product can be integrated with control cabinets, pressure-sensing instruments, and relevant protective devices to manage equipment startup, operation, and fault status; the specific control scheme should be determined based on the project’s fire protection design and equipment configuration. Given that submersible fire-fighting pumps operate in underwater environments, selection must carefully account for factors such as water temperature, water quality, installation depth, cable routing, motor protection, and accessibility for maintenance. Furthermore, flow rate, head, and power requirements must be established in accordance with the fire protection system’s specifications—relying on a single parameter to evaluate equipment performance is insufficient. For industrial facilities, warehouses, fire-fighting reservoirs, underground spaces, and other fixed fire-water supply installations, high-capacity submersible fire-fighting pumps can be configured—through the optimal matching of pump type, impeller, motor power, and piping specifications—to deliver the necessary water volume for fire protection systems. In essence, by combining a submersible motor, a fire-fighting pump, and a compact pump housing, this equipment meets high-capacity fire-water supply demands while ensuring efficient use of installation space and adaptability to various water sources; it serves as an effective pumping solution for specific fire-fighting reservoirs and fixed fire-water supply projects.
