Maintenance, commissioning and after-sales service of fire pump set

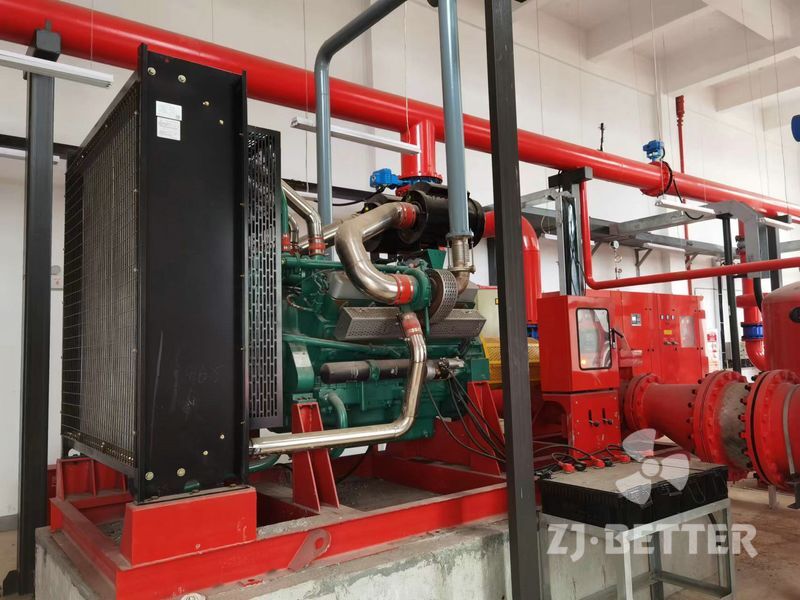

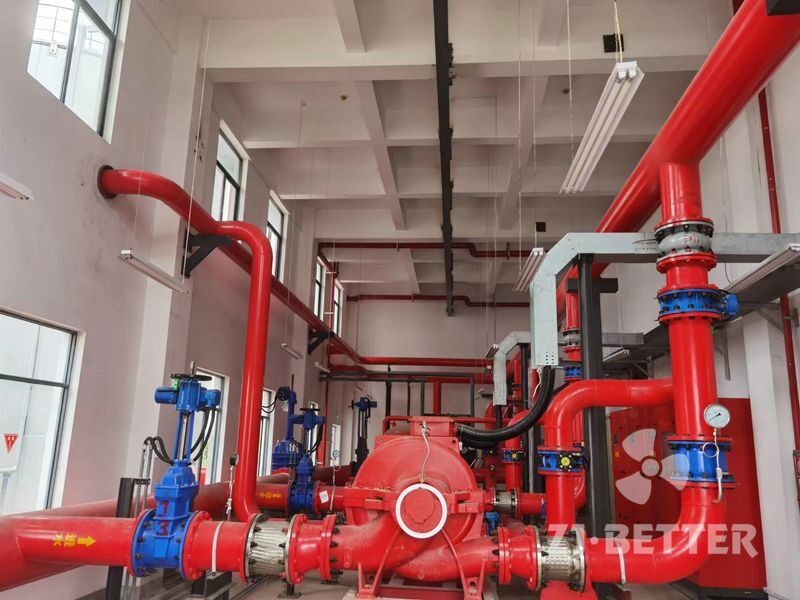

This is a fire pump set with a flow rate of 2500gpm and a pressure of 70m. It consists of electric pump + diesel pump + jockey pump. For fire pump set, we have different types of components. It is suitable for fire-fighting occasions such as warehouses, docks, airports, petrochemicals, power plants, liquefied gas, textiles, ships, oil tankers, etc.

In fire protection systems, reliability is everything. This dual electric fire pump unit is built with a redundant design, featuring two high-efficiency electric pumps capable of alternating operation or acting as backup for each other. In case one pump fails, the other seamlessly takes over, ensuring uninterrupted water supply during critical emergencies.

Equipped with a smart control panel, the system offers real-time status monitoring, fault alarms, and auto-switching features. It is ideal for high-rise buildings, industrial facilities, and large-scale warehouses where maximum fire protection reliability is essential. With its modular skid-mounted design, the unit is compact, easy to maintain, and serves as a dependable core component for modern fire protection infrastructure.

This integrated electric control fire pump unit features a high-efficiency pump design and advanced automatic control system, ensuring stable operation under high-pressure water supply conditions. The powerful motor drive delivers continuous high head and large flow output, meeting various demanding fire protection standards. With multi-point pressure monitoring and intelligent feedback adjustment, the system maintains consistent water pressure, greatly enhancing fire suppression efficiency and operational reliability.

In large industrial complexes, fire pumps are vital in supporting firefighting efforts by providing a reliable water supply to extensive fire protection systems, including sprinklers, hydrants, and hose reels. These facilities often have complex layouts and multiple hazards, requiring robust fire pumps capable of delivering high water flow rates and pressure over long distances. Fire pumps in these settings are typically part of a comprehensive fire protection strategy that includes redundant pumps, emergency power supplies, and advanced control systems to ensure continuous operation even if one component fails. By delivering a consistent and adequate water supply, fire pumps help ensure that firefighting efforts are effective, minimizing damage and protecting both personnel and assets.

Prior to installation, fire sprinkler systems are hydraulically calculated to ensure adequate water flow and that the system can reliably suppress a fire until fire crews arrive. When it is determined that there is insufficient flow from a municipal supply for the system to function properly, a fire pump is installed. The fire pump activates when the sprinkler system pressure falls below a certain threshold as a result of sprinkler head operation. To maintain the required operating pressure of the sprinkler system, the fire pump draws additional water from the municipal water supply or on-site storage tanks. Due to the size of piping systems and pressure loss, fire pumps are frequently required in high rise construction and large area buildings.

The fire pump is usually equipped with a local control cabinet. The control cabinet does not have a transfer control switch for automatic and manual conversion, but the automatic control loop leaves start and stop contacts, which are connected to the fire alarm system control module. In addition, according to the relevant regulations, the system using the bus linkage control should also be set in the fire control room with buttons that can directly start and stop the pump. When the fire alarm system receives the signal of the fire hydrant start pump button, the control module automatically starts the fire pump and collects its feedback signal.

In modern fire protection systems, the application of smart technology has significantly improved firefighting efficiency and safety. Smart fire pumps utilize advanced automatic control systems to monitor key parameters such as water pressure, flow rate, and temperature in real time. They can automatically adjust their working state based on the fire situation to ensure optimal firefighting performance.

Compared to traditional fire pumps, smart fire pumps feature remote monitoring and self-diagnosis capabilities. Through IoT technology, they can be connected to fire control centers or mobile devices, allowing management personnel to monitor operations at any time, quickly detect faults, and perform timely maintenance. This not only reduces manual intervention but also significantly lowers maintenance costs and extends the equipment’s service life.

Moreover, smart fire pumps have rapid response capabilities. When a fire occurs, they can start immediately and adjust water flow and pressure according to the on-site needs, ensuring the efficient operation of the fire protection system. Whether in industrial plants, commercial buildings, or residential complexes, smart fire pumps provide reliable fire protection, offering strong support for the safety of people and property.

Operation of Electric Fire Pump Before start: 1. Turning the clutch by hand, there should be no jammed phenomenon at the turner position. 2. Opening the inlet valve and the vent valve, letting the water fill into the pump’s chamber, then closing the vent valve. 3. Clicking the switch of motor, and confirming whether the turning is right ornot. Running: 1. Fully opening the inlet valves, and closing the valves of the outlet pipe. 2. Connecting the power, Opening the valves of the outlet pipe and adjusting the needed working point when the turning velocity is normal. 3. Watching whether there exist abnormalities or not, if yes, should the pump be stopped and inspected before re-running. Stop: 1. After turning off the outlet valves one by one, shutting off the power. 2. Shutting off the inlet valves. 3. If the ambient temperature is below 0℃, some warm-keeping measures should be adopted.

Flow testing is a critical aspect of fire pump maintenance and compliance with safety standards. This article explores the fundamentals of fire pump flow testing, including procedures, equipment, and the significance of accurate testing to verify system performance. It discusses the relationship between flow testing and water distribution and highlights the need for regular testing to ensure optimal fire protection.

Discover the full safety performance of dual power fire pump systems combining electric and diesel drive. Ensure uninterrupted water supply, reliable pressure, intelligent control, and durable operation for high-rise buildings, industrial sites, airports, ports, and energy facilities.

The highly reliable fire pump solution is designed for critical infrastructure, featuring independent diesel power, efficient water supply, and intelligent control functions to ensure a continuous and stable water supply in emergencies and enhance system safety and reliability.

Large EDJ fire pumps
Reliable because of professionalism, specializing in the production of industrial fire pumps for 20 years, to provide you with the best quality and most intimate service.
if you are interested in our pumps, welcome to contact us!

In the fire fighting pipeline pump, according to the different installation methods can be divided into vertical fire pumps and horizontal fire pumps, many people have questions about these two common pumps, what is the difference between the two? Shanghai Xizhiquan will explain the difference between horizontal and vertical pumps.

Obviously, different installation methods take up different space. Vertical pipeline pumps are installed vertically, covering a relatively small area, and vertical fire pumps do not require a foundation, while horizontal fire pumps need to be equipped with a base.

According to the different structures of the two pumps, it can be concluded that there is also a certain difference in the ease of maintenance of the two types of fire fighting pipeline pumps. The impeller of the vertical fire pump needs to be dismantled from top to bottom, which makes maintenance more difficult; the horizontal fire pump only needs to have the inlet pipe removed so that the impeller can be overhauled, which is relatively simple.

Due to the different inlet and outlet pipe directions, the pipeline connection between vertical and horizontal is also different. As the vertical pump is a bottom-up structure, while the horizontal fire pump is longitudinally arranged on the base, so the motor of the vertical pump and the pump body are connected in the form of sub-mouth connection, while the horizontal pump needs to use couplings to connect with the motor, and the horizontal pipeline pump needs to be corrected regularly.

Translated with www.DeepL.com/Translator (free version)

Flow-500gpm
Head-8bar
The three pumps are automatically started and stopped. When the joceky pump detects that the electric pump cannot operate normally, the diesel engine pump will start automatically. Can also be used, the fire pump set is widely used in various emergency firefighting occasions.

The pump and the motor are coaxial, which simplifies the connection of the pipeline. The pump inlet and outlet are on the same horizontal axis, and the diameter and specifications are the same. The pump is provided with a mounting base, which is easy to install and increases the stability of the pump operation. The pump seal adopts mechanical seal, which has the characteristics of reliable sealing and no leakage.

Energy-Efficient Vertical Fire Pump Systems reduce long-term operating costs through high hydraulic efficiency, compact inline design, stable pressure performance, intelligent control technology, low maintenance requirements, and reliable continuous operation. Ideal for high-rise buildings, commercial complexes, industrial facilities, warehouses, hospitals, airports, ports, and modern fire protection projects requiring dependable and cost-effective fire water supply solutions.

The EJ (Electric pump + Jockey pump) Dual Power Fire Pump System is an innovative and reliable fire protection solution. Combining an electric pump for robust water pressure and flow with a top-quality jockey pump for stable pressure maintenance, this system ensures efficient and timely water supply during fires. With advanced automation, remote monitoring, and energy-saving features, the EJ Dual Power Fire Pump System is a trusted choice for commercial, industrial, and residential applications.

High-performance small diesel engine power unit designed for portable fire pumps, featuring strong power output, reliable cold start, excellent fuel efficiency, and long service life. Ideal for firefighting, emergency drainage, and industrial water supply with stable performance, easy maintenance, and adaptability to harsh environments.

The fire pump is a high-tech product, which is characterized by high efficiency, fast pumping speed, very strong sealing, and low leakage, which can also be said to be no leakage. The use of fire pumps is very extensive, of course, the most important one is used in the fire protection industry, it is also used in water treatment, environmental protection industry and so on. Among these uses, the fire protection industry uses the most. The fire protection industry makes full use of the advantages of fire pumps, which is the advantage of fast pumping. Because most of the work in the fire protection industry is to extinguish fires, the fire pump plays a very important role. Fire pumps are not just used in the firefighting industry. Fire pumps are also used in many other places. In larger industries, such as industry, as well as urban water supply and drainage, and water transportation for the construction of high-rise buildings, there is also water delivery over relatively long distances. There are also smaller industries, such as heating and boilers.

Flow: 30-500GPM
Head: 3-20Bar
Speed: 740-2900r/min
Frequency: 50 HZ or 60 HZ
The ED Dual-Power Fire Pump System combines electric and diesel engine pumps to ensure uninterrupted fire protection and a reliable water supply. In the event of power outages or electrical failures, the diesel engine pump seamlessly takes over, guaranteeing continuous operation of the fire protection system. This dual-power configuration offers both reliability and flexibility, providing comprehensive coverage for fire safety needs.

1. Manual Operation: This method involves manually operating the fire pump by an operator who is trained to handle it.

2. Automatic Operation: This method uses an automatic sensing and control system to start and stop the fire pump when needed.

3. Pressure Control: This method uses a pressure switch to monitor the pressure in the system and activate the fire pump when necessary.

4. Flow Control: This method uses a flow switch to monitor the flow in the system and activate the fire pump when necessary.

5. Variable Frequency Drives (VFDs): This method uses a VFD to provide precise control over the speed and torque of the fire pump. This helps to ensure that the fire pump is operating optimally.

6. Remote Monitoring: This method uses a remote monitoring system to provide real-time data on the condition of the fire pump and to allow for remote operation if necessary.

The highly reliable diesel fire pump is equipped with an intelligent control system that supports automatic start-up and multiple safety protections. It features high flow rate, high head, and stable continuous water supply capabilities, making it suitable for industrial plants, high-rise buildings, municipal and emergency fire protection systems.

DJ Fire Pump Set The fire pump set consists of a pump connected to the diesel engine, pressure jockey pump, pressure vessel, controller for manual or automatic operation of the system and standard accessories mounted on the base. The fire pump system can be customized for different uses, such as high-rise buildings, facilities, hospitals, supermarkets, shopping malls, villas, apartments, etc.

The fire pump is actually a pump that needs to be used in fire protection. According to different classification methods, it can be divided into different types of pumps. With its characteristics of full sealing, no leakage and corrosion resistance, it is widely used in environmental protection, water treatment, fire protection and other departments to pump various liquids. The pump types of the system are similar, but the head and flow are different. The selection basis of the fire pump should be considered from five aspects according to the technological process and water supply and drainage requirements. Fire truck fire pumps are used in fire protection, water treatment, environmental protection and other departments to pump various liquids.

The advanced diesel fire pump solution for petrochemical fire protection is driven by a high-performance diesel engine and features independent power supply, large-flow water supply, high head output, intelligent control, automatic start and continuous operation capabilities. It is widely used in fire protection systems of oil refineries, chemical industrial parks, oil depots, oil and gas terminals and energy facilities, providing reliable and efficient fire water supply for high-risk industrial sites.

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

The small-flow, high-stability fire-fighting pressure-stabilizing pump is designed specifically for building fire protection engineering. It can continuously maintain the pressure of the fire protection pipeline network, avoid frequent starts of the main pump, and is suitable for sprinkler and fire hydrant systems, significantly improving the stability and reliability of the fire protection system.

The electrical control cabinet type pressure stabilizing pump set is an intelligent complete set of equipment used for maintaining the pressure of fire protection pipeline network. It has the advantages of automatic pressure replenishment, rapid response, energy-saving operation and multiple electrical protections. It is suitable for high-rise buildings, factories, warehouses and various fire protection systems to achieve stable pressure guarantee and reliable main pump start-up support.

This high-performance, multi-stage fire pump system provides stable, high-pressure water supply and supports both automatic and manual control modes. It’s suitable for high-rise buildings, industrial plants, and large-scale fire protection projects. Its energy-saving, high-efficiency, low-noise, and easy-to-maintain advantages ensure continuous water supply and safe system operation during fires, making it an ideal choice for modern intelligent fire water supply systems.

This new generation of diesel fire pumps offers powerful power, independent operation, and high energy efficiency. Utilizing advanced fuel systems and intelligent control technology, they provide reliable water supply even during power outages or in harsh environments. Their high head, high flow rate, and low energy consumption are widely used in high-rise buildings, industrial plants, oil depots, power plants, and ports, making them an ideal solution for ensuring reliable fire protection system operation and secure emergency water supply.

EDJ fire pump set is composed of electric pump, diesel pump and stabilized pressure pump. In daily use, as an auxiliary pump, the stabilized pressure pump keeps the existence of liquid (water) in the fire pipeline at all times, and the electric pump works as the main power pump in normal work. When the circuit system is burnt out due to a serious fire, the diesel pump will start instead of the electric pump within ten seconds, which will not be affected by the circuit and complete the fire fighting work. In recent years, EDJ fire pump group has gradually become the first choice of fire protection systems in various office buildings and residential buildings, and its safety
