Energy-Efficient: Integrated Electric Booster Pump for Green Building Fire Upgrades

First of all, check whether the oil level is normal and cannot reach the oil mark line on the normal surface. If it is not, we must replenish it in time, but remember one thing, it cannot exceed the amount of the oil quantity indicator line.

Secondly, check the radiator. The water is appropriate. If it is not added in time, the water that needs to be added must be clean water, as long as it is clean water, or tap water is fine. Why not use groundwater, because impurities in groundwater can easily form scales in the water tank, which affects the cooling effect and is also prone to failure. In winter, we drive to preheat the car, add coolant to the car, and the fire pump is no exception. The weather in the north is very cold, so add the coolant to the fire pump according to the actual temperature.

Finally, check the installation of each part of the fire pump, such as whether they are stable, the connection between the screw and the screw, if there is any looseness, tighten the screw in time. To clean the fire pump, soak a canvas or dry cloth and wipe slowly on the body or on surfaces made of grease or dust.

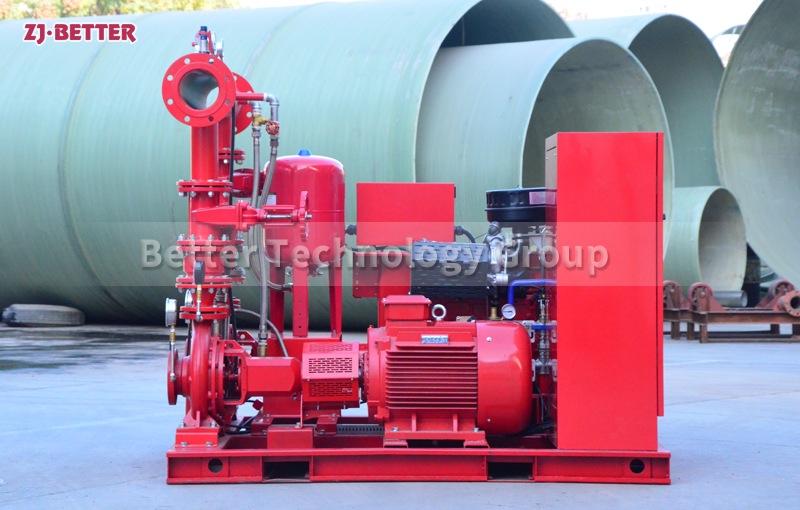

Diesel engine fire pump is a common and necessary facility. Only when the fire signal comes, and the electric water pump fails or the power supply is cut off, the diesel engine fire pump will automatically start. Diesel engine fire pump is installed together with electrical instruments, with complete functions, compact structure, automatic fault alarm, receiving start signal, and can automatically complete the start-up procedure and fast full-load operation. , Enough to ensure that the diesel engine fire pump is started in a low temperature environment, the whole system of the diesel engine fire pump is safe, reliable, and easy to use.

The minimum fire rated pressure of small fire fighting package set water supply equipment is 6 bar, and the minimum fire rated capacity is 25 GPM. EDJ small fire fighting package set water supply equipment includes at least two power or power source driven pumping units, pressure tanks, pipes, valves and accessories, measurement and control instruments, control cabinets, outdoor rain cover, etc.

A multistage pump is a multistage centrifugal pump in which two or more impellers are installed on the pump shaft and connected in series to work together. A horizontal multistage centrifugal pump refers to a multistage pump in which centrifugal pumps with two or more impellers are combined. The multistage centrifugal pump is characterized by high efficiency and energy saving, wide range of use, special purpose, stable operation, long service life, convenient installation and maintenance, etc.

The dual power fire pump is composed of a fire water pump, a double shaft extension motor and a diesel engine. One end of the output shaft of the double shaft extension motor is connected with the input shaft of the fire pump, and the other end of the output shaft of the double shaft extension motor is One end of a clutch is connected, and the other end of the clutch is connected with the output shaft of the diesel engine. The fire water pump, the double-shaft extension motor, the clutch and the diesel engine are all fixed on the base. The double shaft extension motor, the clutch and the diesel engine are respectively electrically connected with a control circuit through an action drive circuit. With dual-power fire pumps, there is no need to configure a second fire pump, which reduces floor space and saves manufacturing costs.

The electric fire pump is an important part of the fire water supply system. The electric fire pump consists of two parts, the motor and the pump. The pump and the motor are coaxial. The pump structure includes pump body, impeller, pump cover, mechanical seal and other components.

The ED fire pump set is composed of electric pump + diesel pump, equipped with a control cabinet, without a jockey pump. It is a small fire pump set, suitable for any fire emergency situation, not affected by the mains, and the control cabinet controls the pump. Start and stop, with the advantages of flexibility and small footprint.

Horizontal multi-stage fire pumps can be used to transport clear water without solid particles and liquids with physical and chemical properties similar to water. It is mainly used in pressurized water supply for fire protection system, heating, bathroom, boiler cold and warm water cycle pressurization, water supply for air conditioning and refrigeration system, and equipment matching and other occasions.

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

fire pump system assembly now! which consist of electric fire pump, diesel engine fire pump and jockey pump, with booster pump system

Diesel engine fire pump can be used in fire water supply in warehouses, docks, airports and other occasions. We usually choose the appropriate diesel engine fire pump model and application according to the head, flow, power, medium properties, and required materials provided by the user. In order to avoid mistakes, the loss caused by the installation environment will be comprehensively considered to ensure stable and reliable efficiency.

According to customer requirements, the fire pump set is composed of electric pump, diesel pump and jockey pump. Both manual and automatic operation are available. The three pumps are automatically switched and can work even when power is off. Our company is a professional The company has a professional sales and technical team, which can be customized according to its own needs.

1. Make sure the fire pump is regularly inspected and tested according to the manufacturer’s recommendations.

2. Inspect all electrical components and wiring to ensure they are in good working order.

3. Ensure the fire pump is properly lubricated and any worn parts are replaced.

4. Check the suction and discharge valves for proper operation.

5. Inspect the motor and its bearings for signs of wear or damage.

6. Test the fire pump for pressure, flow, and suction.

7. Clean the fire pump, its components, and the surrounding area regularly.

8. Ensure any repairs or maintenance is done by a certified technician.

1.Flow: 50-5000GPM
2.Head: 3-20Bar
3.Speed: 740-2900r/min
4.Power: Electric pump: 1.5-710 kw, Jockey pump: 0.55-160kw
The EEJ Fire Pump System includes two electric pumps and a jockey pump.With exceptional performance and efficiency, the EEJ Fire Pump System delivers high pressure and large flow capacity, enabling rapid and effective fire suppression.

While the primary purpose of fire pumps is firefighting, some systems may incorporate them for other water supply needs, such as industrial processes or water distribution. However, their design and functionality are optimized for firefighting applications.

Series OTS pumps are single stage,double suction with horizontally split casings .They are suitable pumping unsettled water, clean water ,non-drinkable or hydrocarbon at a temperature not exceeded 105C¡£
Series OTS pumps are available for capacities Of 68-18000m3/hr and heads of 70-200m.They are adoptable in water works irrigation and drainage pumping stations,fire fighting systems, marine applications as well as refinery industry,etc.

1.Flow：30-9000 GPM
2.Head： 3-20 Bar 40-300 psi
3.Power：Diesel & Electric Pump:1.5-710kw Jockey Pump:0.55-160kw
4.Speed：740-2900 r/min
The EDJ Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations.

1. Diesel pump: the flow rate is the same as that of the electric pump. It connects pump sets with highly elastic couplings or universal joints.
2. jockey pump: vertical, small flow, higher lift than electric or diesel pumps.
3. Control panel: Automatically control the water pump with overload and overcurrent protection.
4. Accessories: suction pipe, discharge pipe with flange, battery, gate valve, check valve, flexible expansion joint, pressure switch, pressure gauge, base, etc.

Simplifies piping design
Single source unit responsibility
A complete package that will meet NFPA20 requirements
Packaged systems are performance and hydrostatically factory tested at an IS09001 certified manufacturing facility prior to shipment.
No material lost due to on-site material handling
Improves the speed of construction and reduces on-site installation time
Only external suction, discharge and power connection are required on-site
State of the art engineering design

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

The model of fire pump unit consists of six parts: pump characteristics, pump unit characteristic code, main parameters, use characteristic code, auxiliary characteristic code and enterprise custom code
The fire pump with power source is generally composed of a group of fire pump, power source, control cabinet and auxiliary devices.
The diesel electric hybrid fire pump unit can complete the work in various environments more safely, comprehensively and efficiently. In case of power failure, the electric pump will stop working and the diesel pump will start within ten seconds to continue working instead of the electric pump.

Fire pumps are critical components of fire protection systems, and their reliable operation is essential for effective fire suppression. However, like any mechanical equipment, fire pumps can experience various issues over time. Some common problems associated with fire pumps include:

The application of electric fire pumps is not only in fire protection systems, but a variety of fire pumps are gradually showing their superior strength in industrial production and urban construction. This includes the implementation and expansion of high-end technologies for industrial and urban water supply and drainage, and high-rise building underpressure water delivery.

Flow: 30-9000GPM
Head: 3-20Bar
Speed: 740-2900r/min
Frequency: 50 HZ or 60 HZ
The ED Dual-Power Fire Pump System combines electric and diesel engine pumps to ensure uninterrupted fire protection and a reliable water supply. In the event of power outages or electrical failures, the diesel engine pump seamlessly takes over, guaranteeing continuous operation of the fire protection system. This dual-power configuration offers both reliability and flexibility, providing comprehensive coverage for fire safety needs.

The finished EDJ fire pump set consists of jockey, electric&diesel pump along with control panel and accessories.

Diesel engine fire pumps are often used for emergency water supply in high-rise buildings, water companies, steel plants, wineries, chemical plants, hotels, hospitals, and other large-scale projects. Diesel engine fire pump is suitable for unattended emergency water supply system. The product has the characteristics of advanced technology, high degree of automation, superior performance, complete protection functions, reasonable structure, simple installation, and high cost performance. net pressure. Diesel engine fire pumps are selected according to different working conditions: single-stage single-suction centrifugal pumps, high-pressure multi-stage pumps, double-suction split pumps, etc.

Better main types of fire pump, a professional production and sales team, quality strictly control, fire pump design in line with the national standard of general packaging, in line with customer needs.

Benefits include:

Simplified Installation: Pre-packaged systems are easier and quicker to install, reducing on-site labor and potential for errors.
Quality Control: Assembled and tested in a controlled environment, ensuring high quality and reliability.
Space Efficiency: Designed to optimize space, making them ideal for installations with limited space.
Regulatory Compliance: Often pre-engineered to meet specific codes and standards, simplifying the compliance process.

Fire water pump refers to the water supply pump used to ensure the system pressure and water volume in the fire water supply system. The fire pump transfers energy to the water through the rotation of the impeller, thereby increasing the kinetic energy and pressure energy of the water, and transporting it to the fire extinguishing equipment to meet the water volume and water pressure requirements of various fire extinguishing equipment. Such as fire hydrant pumps, sprinkler pumps, fire transfer pumps, etc.
