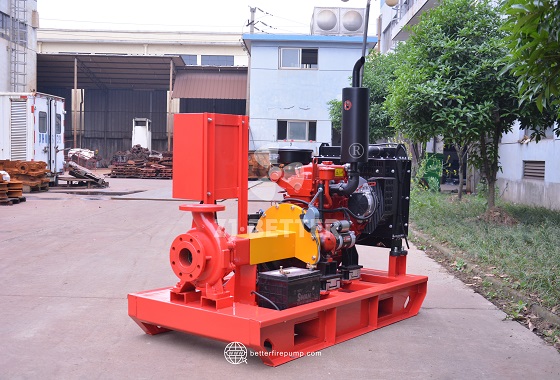

Packaged Diesel Fire Pump Unit — Compact Integration of Power, Pumping and Control Components
The diesel fire pump assembly integrates a diesel engine, a fire pump, a cooling system, a control cabinet, and auxiliary components. It supports a variety of pump types and flow/head configurations, making it suitable for fire water supply systems in facilities such as warehouses, docks, airports, petrochemical plants, and power stations.
A diesel-powered fire pump assembly is a fire-fighting water supply system that integrates a diesel power unit, a fire pump, control components, and various auxiliary parts. It is designed for projects that require high reliability in fire-fighting water supply and a comprehensive equipment configuration. Powered by a diesel engine that drives the fire pump mechanically, the system operates independently of a sole reliance on electric power. The diesel engine’s power output and the specific fire pump model can be selected based on project design requirements to ensure an optimal match between power and pumping performance. Depending on the required flow rate, head, and installation constraints, the system can utilize various pump configurations—such as single-stage, end-suction, horizontal split-case, or multi-stage pumps—to meet the specific needs of different fire-fighting water supply systems. According to official specifications, these diesel fire pump assemblies can offer flow rates ranging from 30 to 9,000 GPM and heads between approximately 3 and 20 bar; exact performance parameters are determined by the specific pump type, rotational speed, engine power, and system operating conditions. As shown in the image, the engine, pump, cooling system, and control cabinet are mounted on a common base, creating a compact, integrated unit that simplifies on-site installation, piping connections, and future maintenance. The diesel engine is equipped with a radiator and a fuel system to ensure the necessary power and cooling for continuous operation. The control cabinet manages the system’s operation, enabling automatic control of the diesel fire pump and associated pressure-maintenance equipment, while also providing protective functions such as overload and overcurrent protection. For systems that require a constant standby pressure within the fire-fighting piping network, a jockey pump (pressure-maintenance pump) and a pressure vessel can be added. The jockey pump, typically characterized by a low flow rate and high head, compensates for minor pressure fluctuations in the network, thereby preventing the main fire pump from starting too frequently due to slight pressure drops. Additional components—including pressure gauges, pressure sensors, check valves, gate valves, flexible connectors, and flanges—can be incorporated according to project specifications, allowing the entire assembly to function as a complete, integrated water supply system for fire-fighting infrastructure. The advantage of a packaged design lies in the fact that the primary power source, pumping unit, and control components are configured and matched as an integrated system at the factory. This eliminates the need for separate procurement and on-site assembly, thereby reducing the coordination efforts required during installation. Furthermore, the common base frame facilitates unified lifting and precise positioning of the equipment. Such systems are suitable for fire-fighting water supply applications in a wide range of settings, including warehouses, docks, airports, petrochemical plants, power stations, liquefied gas facilities, textile mills, and aboard ships or tankers. During the selection process, the specific pump model and diesel engine configuration should be determined based on parameters such as the required fire-fighting flow rate, total head, pipeline network resistance, suction conditions, ambient temperature, and available installation space, ensuring stable operation under the intended design conditions. By integrating the power source, pumping unit, control system, and auxiliary components, these packaged diesel fire-pump units offer a compact, fully configured, and easy-to-install-and-maintain fire-fighting water supply solution for various engineering projects.
