Small Flow EDJ Fire Pump Set

In modern fire protection systems, rapid response to fire incidents is crucial for safeguarding life and property. The Pressure Stabilization and Dual-Function Pump System integrates powerful pressure regulation with dual power sources to ensure that the fire protection system quickly responds and maintains a continuous, stable water supply during emergencies.

This pump system is designed with two power sources—an electric motor and a diesel engine. When the primary power source fails, the diesel engine automatically starts, ensuring uninterrupted operation of the fire protection system even during power outages. Its pressure stabilization system automatically adjusts pressure during operation, ensuring stable water flow for fire suppression and preventing water interruptions due to insufficient or fluctuating pressure, ultimately improving firefighting efficiency.

The intelligent control system further enhances the efficiency of the pump system, allowing users to monitor the system’s status in real-time through a touch panel. The system is easy to operate, and any malfunction is quickly detected and alarms are triggered, activating backup systems to effectively prevent emergency issues caused by system failure.

This pump unit is ideal for applications in high-rise buildings, industrial zones, storage facilities, and other locations with high reliability requirements for fire protection, ensuring that the fire pump can be immediately activated and continue to supply water in any emergency.

Proper design and installation of suction and discharge piping are vital for the efficient operation of a fire pump system. The suction piping connects the fire pump to the water supply source, while the discharge piping carries water from the pump to the fire protection devices.

Key considerations for these piping systems include the sizing, material selection, and routing. Proper sizing ensures that water can be drawn from the source at the required rate, and the piping material must be compatible with the water and the environment. Piping routing should minimize friction losses and ensure that the system operates without cavitation or other issues.

The diesel engine fire pump needs to be aimed at the occasion of large flow and high head fire water material supply, and it has good characteristics of the starting system for diesel automobile engines, fast starting development speed, strong overload capacity, no need for standby operation, and effective energy saving. Diesel engine firefighting pumps have complete performance and a wide range. Single-stage single-suction pumps, multi-stage single-suction pumps, self-priming pumps, long-axis pumps and other pumps can be used, and they can also be used in combination and in parallel. The flow and pressure ranges are wide. Diesel fire-fighting pumps are widely used in fire-fighting system water supply in various occasions of industrial and mining production enterprises such as data warehouses, docks, airports, petrochemicals, and power plants.

The fire booster pump is designed to increase the flow and pressure rate of the water supply coming into the fire system. This is accomplished by drawing water from a municipality main, tank, or hydrant, and then boosting the pressure rate of the water supply with an electric motor and pump. The adjusting of the pressure rate is accomplished by changing the speed of the electric motor that is powering the pump, which in turn changes the amount of water being pushed through the system.

Explore the outstanding performance and reliability of dual-power emergency fire pump stations. The system is specially designed for harsh environments and uses dual redundancy with diesel and electricity to ensure continuous operation of the firefighting system. It is suitable for critical infrastructure and industrial safety applications.

The EJ (Electric pump + Jockey pump) Dual Power Fire Pump System is an innovative and reliable fire protection solution. Combining an electric pump for robust water pressure and flow with a top-quality jockey pump for stable pressure maintenance, this system ensures efficient and timely water supply during fires. With advanced automation, remote monitoring, and energy-saving features, the EJ Dual Power Fire Pump System is a trusted choice for commercial, industrial, and residential applications.

The electric fire pump unit is driven by an electric motor and has many different structures such as horizontal and vertical.

The electric fire pump set has a small footprint, light weight, low noise, and good start-up and operation performance.

Although the electric fire pump set has the advantages of simple operation and maintenance, most of the design specifications of the fire protection system stipulate that when using the electric fire pump set, it should have the condition of dual-circuit power supply. And usually there should be a diesel engine fire pump set as a backup pump set.

Building occupants should receive training on the location and proper use of firefighting equipment, including fire pumps. Regular drills and educational sessions contribute to increased awareness and preparedness during a fire emergency.

A horizontal fire pump has its shaft aligned horizontally, making it suitable for installations with more floor space. A vertical fire pump, on the other hand, has a vertical shaft and is ideal for spaces with limited floor area but sufficient vertical space. The choice between horizontal and vertical configurations depends on the available space, system layout, and design preferences.

High reliability fire jockey pump equipment designed for fire pump station auxiliary systems to maintain stable pipeline pressure. Features automatic pressure control, energy efficient operation, durable structure, and reliable performance for commercial buildings, industrial facilities, warehouses, and municipal fire protection networks, ensuring fire systems remain pressurized and ready for emergency response at all times.

The video displays a fire pump set consisting of jockey, electric, and diesel pump. The pump model is the OTS series.

The product is EJ fire pump set. The EJ fire pump set has one electric pump and one jockey pump. The electric pump in the picture is XA pump. XA series horizontal single-stage single-suction centrifugal pump is a new generation of energy saving, environment friendly horizontal centrifugal pump researched and developed by our company, which absorbs advanced technology of similar products abroad and adopts domestic general performance parameters of centrifugal pumps.

Diesel engine fire pumps can be used for fire water supply in warehouses, docks, airports and other places. We usually choose the appropriate diesel engine fire pump model application according to the head, flow rate, power, medium properties, required materials, etc. provided by the user. In order to avoid mistakes, the loss caused by the installation environment will also be considered comprehensively to ensure stable and reliable efficiency.

The EDJ 2000kw 10kv Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations. With its lightweight and portable design, coupled with versatile functionality, the EDJ Diesel Engine Fire Pump System is suitable for various scenarios. Whether you are part of a fire department or an industrial enterprise, the EDJ Diesel Engine Fire Pump System is your indispensable rescue partner.

The biggest difference between the diesel engine fire pump and the electric water pump is that it has its own independent power supply system – the storage battery. Therefore, the start and operation of the diesel engine fire pump can be completely separated from the mains.

Flow: 14-2700 GPM
Head: 12-80 meter
Speed: 740-2900r/min
Material: HT200, SS304, Bronze

The EJ Dual Power Fire Pump System is an innovative and reliable fire protection solution. Combining an electric pump for robust water pressure and flow with a top-quality jockey pump for stable pressure maintenance, this system ensures efficient and timely water supply during fires. With advanced automation, remote monitoring, and energy-saving features, the EJ Dual Power Fire Pump System is a trusted choice for commercial, industrial, and residential applications.

Fire pumps are pumps used in fire protection. They are divided into different types according to different classification methods. They have the characteristics of full sealing, no leakage and corrosion resistance. They are widely used in environmental protection, water treatment, fire protection and other departments. Liquid is an ideal pump and fire-fighting system for creating a leak-free, pollution-free civilized workshop and civilized factory. The pump types are similar, but the head and flow are different. The selection basis of the fire pump should be considered according to the process flow, water supply and drainage requirements, and other five aspects.

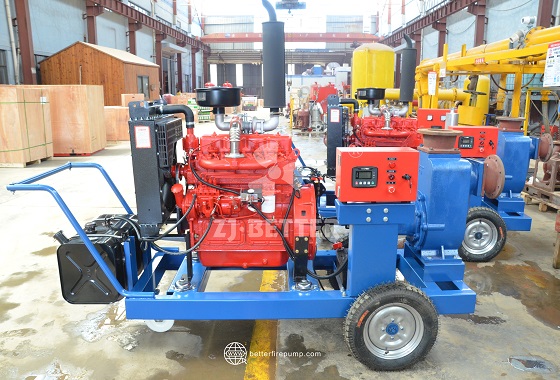

The diesel engine-driven fire pump complete set highlights its ability to supply water independently even in the event of power failure or emergency. The product integrates diesel engine, water pump, control system and piping system, with automatic start, stable performance, convenient operation and other characteristics. It is suitable for all kinds of places with high requirements for fire fighting, such as industrial parks, petrochemicals, power plants and municipal projects, etc., and is an important equipment for ensuring fire safety.

Vertical long-shaft fire pumps are known for their high head, large flow rate, and stable performance, making them suitable for high-rise buildings, industrial parks, chemical plants, ports, and deep well water intakes. They feature a compact structure, small footprint, stable operation, corrosion resistance, and easy maintenance. They can also be driven by either electric or diesel engines to ensure continuous water supply, making them an ideal choice for ensuring the efficient and safe operation of fire protection systems.

An additional protective cover is added to the outdoor fire pump, which can protect against rain, sun, and rust to a certain extent.Heat exchange cooling, low noise，Hydraulic brace，Independent suspension system.Able to deal with harsh environments with good quality assurance

EDJ series fire pump set consists of electric pump + diesel pump + jockey pump and all accessories.
Pump – ISO Horizontal end suction pump
The three pumps are automatically started and stopped. When the joceky pump detects that the electric pump cannot operate normally, the diesel engine pump will start automatically. Can also be used, the fire pump set is widely used in various emergency firefighting occasions.

Fire sprinkler systems are an important part of life safety in buildings. International building codes allow some exceptions when buildings are “fully watered”, such as reducing rated spacing, reducing hydrant flow requirements, increasing exit travel distance, and increasing building height and area. These exceptions are allowed so that in the event of a fire, the sprinkler system will suppress the fire enough that occupants can safely evacuate the building and that the spread of the fire is contained before the fire department has fully arrived to extinguish it.

ISW horizontal single-stage single-suction centrifugal pump is to be used for clean water or other liquid with similar physical and
chemical property to clean water. It is suitable for industrial and city water supply and drainage, pressure water supply for high-rises, garden sprinkling, fire fighting booster, distance conveyance, cooling circulation in heating and ventilating system, bathroom and other cool or hot water circulation boosters or accessories, whose operation temperature is below 60C.

Electric fire pumps are renowned for their high efficiency, energy saving, stable operation, and intelligent control, making them an ideal solution for optimizing the energy efficiency of fire protection systems. They feature automatic start/stop, variable frequency speed control, high head and large flow rate, low noise, and multiple safety protection functions. Suitable for high-rise buildings, industrial plants, and commercial complexes, they ensure a continuous and stable emergency water supply, providing highly reliable and high-performance safety assurance for modern fire protection systems.

This high-reliability vertical motor for fire pump rooms features a compact vertical structure design, fast start-up response, stable operation, and resistance to high temperatures and humidity. It is suitable for various building and industrial fire pump systems, ensuring continuous and stable water supply in emergency situations.

Flow-500gpm; Head-125psi
DJ (diesel pump + jockey pump) Fire Pump Set
DJ Fire Pump Set The fire pump set consists of a pump connected to the diesel engine, pressure jockey pump, pressure vessel, controller for manual or automatic operation of the system and standard accessories mounted on the base. The fire pump system can be customized for different uses, such as high-rise buildings, facilities, hospitals, supermarkets, shopping malls, villas, apartments, etc.

The electric fire pump set is composed of electric pumps and pressure-stabilizing pumps, and is mainly suitable for fire-fighting equipment in warehouses, docks, airports, petrochemicals, power plants, liquefied petroleum gas, textiles, ships, and oil tankers.

DJ fire pump 500gpm, 7bar
Caliber: 150mm
Flow Range:500gpm
Pressure: 7bar
Matching Power: 37kW
Motor:3ph,415V,50Hz

The horizontal split case fire pump features high efficiency, large flow capacity, double-suction design, and easy maintenance, making it ideal for fire protection systems in commercial buildings, petrochemical plants, and municipal projects.

This fire pump is equipped with an automatic monitoring and alarm system, which allows real-time monitoring of the pump’s operational status and sends timely alerts in case of any abnormalities. Users are immediately notified of any issues, enabling them to take appropriate action in the shortest possible time. This significantly enhances operational safety and effectively reduces the risk of equipment failure. The introduction of an intelligent control system ensures that the pump automatically starts when needed and maintains efficient operation, guaranteeing the reliability and timely response of the fire protection system. Additionally, the high-performance design and durability of this fire pump ensure stable performance in various environments, providing sustained, efficient water supply over extended periods.
