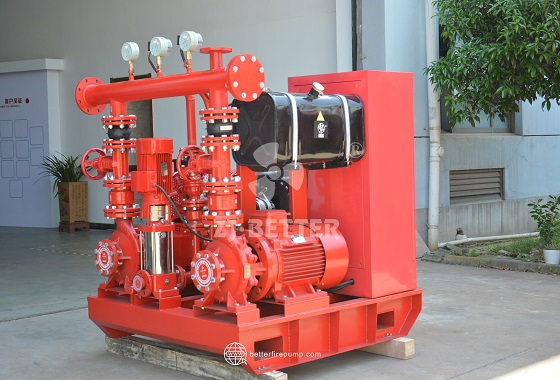

Packaged Fire Pump Equipment with Integrated Base for Enhanced Structural Stability

Diesel-powered vertical fire protection systems utilize high-performance vertical fire pumps, diesel engines, and intelligent control systems. They offer advantages such as automatic start-up, high head, large flow rate, continuous and stable water supply, and multiple safety protections. These systems are widely used in fire protection systems for industrial plants, petrochemical plants, high-rise buildings, municipal engineering projects, and large public facilities, effectively improving the operational efficiency of fire protection networks and the reliability of fire water supply.

Automated fire-fighting water supply systems feature rapid response, stable pressure output, intelligent control, and high reliability. They are suitable for large buildings, industrial parks, and critical facilities, providing reliable protection for efficient fire extinguishing and continuous fire-fighting water supply.

High-performance diesel engine-driven fire pump systems are suitable for emergency water supply in power outages. Featuring high efficiency, durability, and intelligent control, they are widely used in industrial and commercial building fire protection, ensuring continuous water supply and fire safety in critical scenarios.

Automatic constant pressure fire-fighting water supply equipment integrates fire pumps, pressure-stabilizing pumps, pressure tanks, and intelligent control systems to achieve constant pressure operation, automatic monitoring, and energy-saving control of fire-fighting pipelines. It is widely used in high-rise buildings, commercial complexes, hospitals, schools, industrial plants, and municipal fire protection projects, comprehensively improving the reliability and water supply stability of building fire protection systems.

Discover the importance of automatic start functions in fire pumps for rapid emergency response and NFPA 20 compliance.

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

Fire water pump refers to the water supply pump used to ensure the system pressure and water volume in the fire water supply system. The fire pump transfers energy to the water through the rotation of the impeller, thereby increasing the kinetic energy and pressure energy of the water, and transporting it to the fire extinguishing equipment to meet the water volume and water pressure requirements of various fire extinguishing equipment. Such as fire hydrant pumps, sprinkler pumps, fire transfer pumps, etc.

Electric fire pump sets offer energy-saving, high-efficiency, zero-emission, and smart control features, making them the ideal fire protection solution for green buildings. This article explores their key benefits in sustainability, reliability, installation, and maintenance, supporting carbon reduction goals

1. The performance of the fire pump should meet the flow and pressure requirements of the fire water supply system.
2. The power of the driver equipped with the fire pump should meet the requirements of the power required for operation at any point on the performance curve of the selected pump’s flow and lift.
3. When a motor-driven fire pump is used, a dry-installed fire pump with the motor should be selected.
4. The fire pump should be installed dry, and the pump should be placed outside the pool, and the submersible pump cannot be directly placed in the water for water absorption.

High-efficiency electric fire pump systems utilize high-performance electric motors, fire pumps, pressure-stabilizing pumps, and intelligent control systems. They offer advantages such as automatic start-up, stable water supply, energy-saving operation, convenient maintenance, and continuous operation. These systems are widely used in commercial buildings, high-rise residential buildings, hospitals, schools, industrial plants, warehousing and logistics facilities, and municipal fire protection projects, providing safe, efficient, and reliable fire water supply solutions for fixed fire protection systems.

The intelligent control fire pump adopts advanced automation technology to ensure efficient and precise fire water supply. It integrates smart monitoring features that detect water pressure, flow rate, and operational status in real time. In case of an anomaly, the system automatically triggers an alarm and initiates emergency water supply.

Compared to traditional fire pumps, this intelligent control system significantly reduces manual intervention, enhances response speed, and ensures rapid water supply during a fire. Its remote monitoring capability allows management personnel to oversee operations anytime, enabling timely maintenance and reducing the risk of failure. Additionally, the pump features an energy-saving mode that adjusts power based on actual demand, improving efficiency and reducing energy consumption.

With its high level of automation, precise control, and remote monitoring capabilities, the intelligent control fire pump is a reliable solution for fire safety in modern buildings, factories, and commercial centers.

Small-power diesel fire pump units are compact in structure and have independent power design. They feature rapid start-up, stable water supply and high reliability. They are suitable for temporary fire protection projects, decentralized fire protection deployment and backup fire protection systems. They can still ensure fire safety and continuous water supply in the event of no power or power outage.

ZJBetter provide three types of fire pump system, such as diesel engine fire pump set, electric driven fire pump set, EDJ fire pump set.

Flow-500gpm; Head-125psi
DJ (diesel pump + jockey pump) Fire Pump Set
DJ Fire Pump Set The fire pump set consists of a pump connected to the diesel engine, pressure jockey pump, pressure vessel, controller for manual or automatic operation of the system and standard accessories mounted on the base. The fire pump system can be customized for different uses, such as high-rise buildings, facilities, hospitals, supermarkets, shopping malls, villas, apartments, etc.

Industrial fire-fighting water supply pump sets are high-efficiency water supply equipment suitable for large-scale fire protection projects. They feature high flow rate, high head, intelligent electrical control, stable operation, and multiple protection functions. They are suitable for factories, warehousing centers, chemical industrial parks, and high-rise buildings, providing continuous and reliable powerful water supply for fire protection systems.

diesel fire pump set, also known as a diesel engine-driven fire pump, is a type of fire pump system used for fire protection in buildings, facilities, and industrial settings. It is designed to provide water at high pressure and flow rates to fire sprinkler systems, standpipe systems, and other fire protection equipment in the event of a fire emergency. Diesel fire pump sets are an essential component of fire protection systems, especially in areas with unreliable or insufficient electric power supply.

An anechoic check valve, control valve and pressure gauge should be installed on the discharge pipe of the fire pump; a pressure gauge and pressure switch should also be installed on the total discharge pipe of the system; a buffer device should be added when installing the pressure gauge. A cork should be installed between the pressure gauge and the buffer device; the pressure gauge range should be 2 times to 2.5 times the working pressure of the system when there is no design requirement.

Single stage centrifugal pump includes pump body, pump cover, motor with output shaft, pump shaft, bearing seat, impeller, mechanical seal and mechanical seal gland installed in the pump body, which are connected with the motor through extended elastic coupling. The rotation direction of the pump, viewed from the driving end, is clockwise. Wanfulong is characterized in that it also includes a clip on coupling arranged between the motor output shaft and the pump shaft, and a guide bearing installed on the bearing seat to assist in supporting the pump shaft; The wafer type coupling is rigidly connected with the motor output shaft and the pump shaft respectively, and a space distance is left between the motor output shaft and the pump shaft to facilitate the assembly and disassembly of the mechanical seal and the mechanical seal gland. When repairing or replacing the mechanical seal, it is not necessary to disassemble the motor and pump cover.

The dedicated engine-driven end-suction fire pump for critical fire protection systems adopts an integrated design of diesel engine, end-suction centrifugal fire pump and intelligent control system. It has the advantages of rapid start-up, large flow water supply, high head output, continuous and stable operation, automatic monitoring, fault alarm and convenient maintenance. It is widely used in industrial plants, petrochemical plants, high-rise buildings, warehousing and logistics, airports, data centers and municipal fire protection projects, providing safe, efficient and reliable emergency fire water supply solutions for modern fixed fire water supply systems.

The electric fire-fighting booster pump utilizes a high-efficiency centrifugal hydraulic design and motor drive, integrating pressure sensing and automatic control to compensate for pipeline network pressure. It features stable operation, rapid response, low vibration, and a compact installation footprint, making it suitable for fire-fighting water supply systems in both building and industrial applications.

Diesel engine fire pump is suitable for unattended emergency water supply system. The product has the characteristics of good technology, high degree of automation, superior performance, complete protection functions, reasonable structure, easy installation and high cost performance. When there is a sudden power failure in the factory, the diesel engine emergency water supply pump group automatically starts and supplements. network pressure.

Fire pump equipment for warehouses, docks, airports, petrochemical, power plants, liquefied gas, textiles, ships, oil tankers and other occasions of a fire service.

Flow: 30-9000GPM
Head: 3-20Bar
Speed: 740-2900r/min
Frequency: 50 HZ or 60 HZ
The ED Dual-Power Fire Pump System combines electric and diesel engine pumps to ensure uninterrupted fire protection and a reliable water supply. In the event of power outages or electrical failures, the diesel engine pump seamlessly takes over, guaranteeing continuous operation of the fire protection system. This dual-power configuration offers both reliability and flexibility, providing comprehensive coverage for fire safety needs.

The Fire Pressure Stabilization Equipment, coupled with the CDL Vertical Multistage Fire Pump, offers a comprehensive solution to elevate fire safety measures. This powerful combination ensures a consistent water pressure for effective fire suppression. By incorporating pressure stabilization technology, this system guarantees an uninterrupted fire water supply, efficient water distribution, and reliable operation of fire hydrants and sprinkler systems. With advanced infrastructure and the ability to maximize firefighting capabilities, this configuration significantly enhances overall fire safety standards. Investing in fire pressure stabilization equipment is a proactive step towards ensuring superior fire protection and providing peace of mind in critical situations.

Fire water supply pump station equipment provides a stable and reliable fire water source for high-rise buildings, industrial parks and key locations. It integrates main pump, pressure stabilizing pump and intelligent control system, and has high head, large flow, automatic start and stop and continuous operation performance to ensure rapid response and continuous water supply in the event of a fire, and comprehensively improve the safety and reliability of the fire protection system.

High-Efficiency Pressure Maintenance Water Supply Units enhance fire protection reliability in large buildings through automatic pressure stabilization, intelligent control, rapid response capability, energy-efficient operation, and continuous water supply support. Ideal for high-rise buildings, commercial complexes, hospitals, schools, industrial facilities, data centers, airports, and modern fire protection engineering projects requiring dependable fire water management systems.

High-performance heavy-duty diesel driven fire pump unit designed for high-pressure firefighting water supply. Ideal for industrial, municipal, and commercial fire protection systems, featuring reliable diesel engine operation, automatic control, stable performance, and efficient emergency response in critical environments.

Fire pumps and jockey pumps support the fire safety of green buildings by aligning with sustainability goals while ensuring robust fire protection. In green buildings, these pumps can be powered by renewable energy sources, such as solar or wind, to reduce reliance on the grid and decrease carbon footprints. High-efficiency pumps with variable frequency drives (VFDs) can optimize energy use, adjusting output to match demand and further enhancing sustainability. Additionally, fire pumps and jockey pumps can be part of a broader water management strategy that includes using non-potable water sources for fire protection, thus conserving potable water for other uses. By integrating these technologies, green buildings can maintain effective fire protection while minimizing environmental impact.

The DJ Fire Pump Set is a combination system consisting of a diesel engine pump and a jockey pump, designed for fire safety in the construction and industrial sectors. This system utilizes the powerful power output of the diesel engine pump, ensuring reliable operation even in the event of a power outage. The jockey pump maintains a constant water pressure, optimizing the performance of the fire suppression system. The DJ Fire Pump Set offers a reliable and efficient solution for prompt response to fire incidents, making it an essential component for protecting property and ensuring occupant safety.

Although the electric fire pump has the advantages of simple operation and maintenance, the design specifications of most fire protection systems stipulate that when using the electric fire pump set, it should have the condition of double circuit power supply, and usually should have the diesel engine fire pump set as a backup pump set. Electric fire pump sets are driven by electric motors, and there are many varieties with different structures such as horizontal and vertical. The electric fire pump set has a small footprint, light weight, low noise, and good start-up and operation performance.
