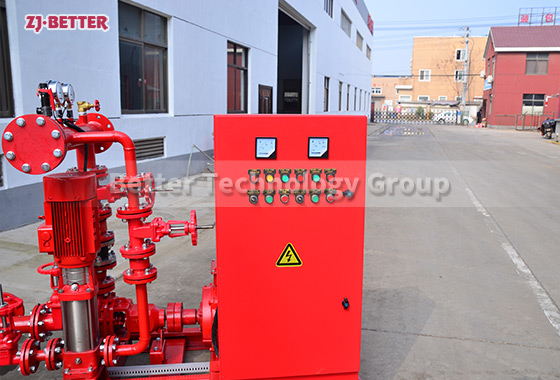

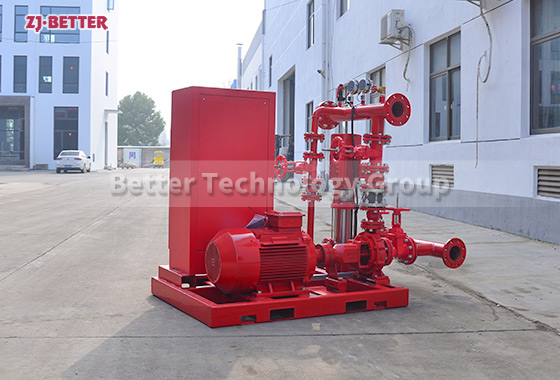

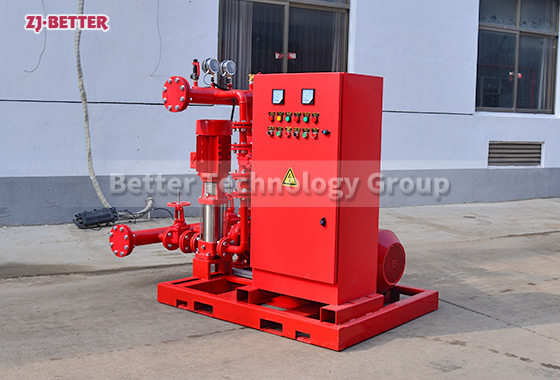

Powerful EJ Fire Pump Set with End Suction fire fighting pump

The minimum rated fire pressure of dual power is 0.3MPa, and the minimum rated fire
rated work flow is 2L/S. Dual power includes motor pumps, engine pumps, pressure
stabilization pumps, diaphragm pneumatic tanks, pipes, valves, electrical control systems,
control sensors and other related accessories driven by at least two power sources. Fire
water supply equipment is continuously supplied to the fire control network by preset mode.
The arrangement is reasonable, the installation is firm, the connection is reliable, the
structure is compact and neat, and is convenient for maintenance and overhaul

Power surges or electrical disturbances can impact the operation of electric fire pumps. Proper surge protection measures, such as surge suppressors and lightning protection, should be in place to safeguard the electrical components of the fire pump system.

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

The minimum fire rated pressure of ED small fire fighting package set water supply equipment is 3 bar and the minimum fire rated capacity is 25 GPM. ED small fire fighting package set water supply equipment includes at least two power or power source driven pumping units, pressure tanks, pipes, valves and accessories, measurement and control instruments, control cabinets, outdoor rain cover, etc.
Motor: Three-phase asynchronous squirrel-cage motor independently developed and manufactured by our company, which can be controlled in production time and greatly shorten the whole set production time.
Diesel Engine: According to the different parameters of customers, we will choose diesel engines with high cost performance ratio. The main brands are QuanChai, Weichai, ShangChai, FAWDE, Cummins, etc.
Electric Pumps: Electric pumps can use vertical in-line pumps, horizontal end-suction pumps, vertical multi-
stage pumps, horizontal multi-stage pumps, split casing pumps and so on according to the different flow and head of customers.
Diesel Pumps: Diesel pumps can use vertical in-line pumps, horizontal end-suction pumps, vertical multi-
stage pumps, horizontal multi-stage pumps, split casing pumps and so on according to the different flow and head of customers.
Electronic Components: The main electric components is CHNT, if Schneider or other brand electrical are need, should mention it before place the order.
Safety Valve plays a safety protection role in the system. When the system pressure exceeds the prescribed value, the safety valve opens, and a part of the gas/fluid in the system is discharged into the atmosphere/pipeline, so that the system pressure does not exceed the allowable value, so as to ensure that the system does not cause accidents due to excessive pressure.
Pressure Tank: Water is a non-compressible medium. Generally speaking, the pressure drop of fire-fighting pipe network is normal. However, the pressure drop is very slow, the total loss of water in the pipe network isnot large, and the frequent change of pressure in the pipe network leads to frequent start-up and shutdown of pumps. Especially when the power of equipment is high, it will cause great impact on pressure sensors, relaysand motors, thus affecting the performance and life whole equipment. Therefore, it is necessary to choose the right volume of the pressure tank.

The ED Dual-Power Fire Pump System combines electric and diesel engine pumps to ensure uninterrupted fire protection and a reliable water supply. In the event of power outages or electrical failures, the diesel engine pump seamlessly takes over, guaranteeing continuous operation of the fire protection system. This dual-power configuration offers both reliability and flexibility, providing comprehensive coverage for fire safety needs. With smart controls and automatic switching mechanisms, the transition between electric and diesel engine pumps is seamless, minimizing system downtime. Equipped with advanced safety features, including monitoring and alarm systems, real-time status updates allow for prompt action in case of any irregularities.

Flow: 5-400L/s
Head: 3-20Bar
Material:
HT200, SS304, Bronze
Caliber:65-350mm
Pressure: 0.3~1.5MPa
Speed:740-2900r/min

dvantages：
Integrated fire pump systems combine pumps, power, and controls into one unit, offering:
1.Easy Installation – Pre-assembled, requiring only pipe and power connections.
2.Space-Saving – Compact design for limited-space rooms.
3.Efficient & Reliable – Optimized performance with reduced failure rates.
4.Smart Control – Remote monitoring and auto start-stop.
5.Emergency Backup – Supports electric or diesel power for uninterrupted operation.
Applications：
Ideal for high-rise buildings, industrial parks, warehouses, hospitals, and airports, providing reliable fire protection for various facilities.

1.Flow：30-9000 GPM
2.Head： 3-20 Bar 40-300 psi
3.Power：Diesel & Electric Pump:1.5-710kw Jockey Pump:0.55-160kw
4.Speed：740-2900 r/min

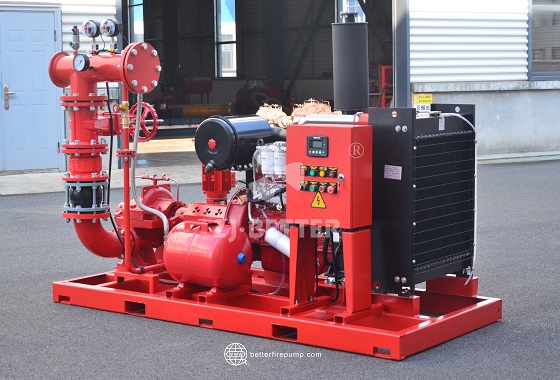

The EDJ Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations.

When selecting a firefighting pump, it’s essential to consider factors such as the type and size of fires likely to be encountered, the terrain and accessibility of the area, the availability of water sources, and the expertise of the operators. For example, wildland firefighting may require lightweight and portable pumps capable of drawing water from remote sources, while industrial settings may require high-capacity pumps with specialized features for handling flammable liquids or chemicals.

The EJ Pump Set is designed according to the customer’s specifications which is including 1 electric pumps, 1 jockey pump and 1 control panel.

Fire pumps work by drawing water from a water source (such as a storage tank or a dedicated water supply) and then increasing the pressure to deliver water through the fire sprinkler system or hoses. They are typically powered by electric motors or diesel engines.

We proudly showcase high-quality fire pump sets and highly recommend the Max Power-2000kw-10KV Split Case EDJ Fire Pump Set, providing excellent performance and reliability for your fire protection system. The Max Power-2000kw-10KV Split Case EDJ Fire Pump Set is designed for large-scale fire applications. It possesses powerful capacity and efficient performance, ensuring your fire protection system can respond quickly in emergency situations and deliver sufficient water pressure and flow.

Whether it is for fire protection systems, industrial applications, or municipal projects, the Split Case EDJ fire pump set is capable and ensures efficient operation.

Diesel engine fire pump is a common and necessary facility. Only when the fire signal comes, and the electric water pump fails or the power supply is cut off, the diesel engine fire pump will automatically start. Diesel engine fire pump is installed together with electrical instruments, with complete functions, compact structure, automatic fault alarm, receiving start signal, and can automatically complete the start-up procedure and fast full-load operation. , Enough to ensure that the diesel engine fire pump is started in a low temperature environment, the whole system of the diesel engine fire pump is safe, reliable, and easy to use.

The EJ Dual Power Fire Pump System is an innovative and reliable fire protection solution. Combining an electric pump for robust water pressure and flow with a top-quality jockey pump for stable pressure maintenance, this system ensures efficient and timely water supply during fires. With advanced automation, remote monitoring, and energy-saving features, the EJ Dual Power Fire Pump System is a trusted choice for commercial, industrial, and residential applications.

Learn how to diagnose and fix common issues when your fire pump fails to start.

Electric fire pumps are used in various water environments, not only to meet the general water supply but also to be a good helper for fire-fighting water. The electric fire pump is manufactured with good structure and workmanship. It has a wide range of performance, and is easy to use and operate for a long time. The electric fire pump is aimed at various fire water environments, so the selection should also be based on the actual demand environment, performance parameters, etc.

Fire sprinkler systems are an important part of life safety in buildings. International building codes allow some exceptions when buildings are “fully watered”, such as reducing rated spacing, reducing hydrant flow requirements, increasing exit travel distance, and increasing building height and area. These exceptions are allowed so that in the event of a fire, the sprinkler system will suppress the fire enough that occupants can safely evacuate the building and that the spread of the fire is contained before the fire department has fully arrived to extinguish it.

The diesel engine fire pump is suitable for unmanned emergency water supply system. The product has the characteristics of good technology, high degree of automation, high performance and protection function, reasonable structure, easy installation, and high cost -effectiveness. Supplement the pressure of the network.

Schedule regular inspections: Weekly or monthly as per NFPA requirements.
Lubricate moving parts: Prevent wear and tear on bearings and seals.
Clean strainers and filters: Avoid clogs that reduce pump efficiency.
Check alignment and coupling: Misalignment can cause operational issues.
Test automatic start functions: Verify system responsiveness during emergencies.

The diesel engine fire pump has the characteristics of good starting performance, serious load operation, compact structure, time-saving and labor-saving maintenance, simple application, and high level of automatic control technology. It is a security monitoring device with reliable performance. The full name of the diesel engine fire pump we usually say is the engineering diesel fire pump set, which can operate at an ambient temperature of -25~55°C, and can be automatically charged, automatically started, and has the functions of automatic alarm and automatic preheating. It is very reliable.

The vertical long-shaft fire pump is a high-performance fire-fighting device specifically designed for high-rise buildings, industrial areas, chemical plants, power plants, and docks. It features high flow rate, high head, stable operation, and long service life. Utilizing a long-shaft drive and multi-stage guide vane structure, it ensures efficient water supply and continuous pressure output, adapting to various working conditions and water source environments. Supporting electric motor or diesel drive, it can be automatically controlled and remotely monitored, making it an ideal choice for achieving highly efficient, energy-saving, safe, and reliable fire-fighting systems.

The ED Dual-Power Fire Pump System combines electric and diesel engine pumps to ensure uninterrupted fire protection and a reliable water supply. In the event of power outages or electrical failures, the diesel engine pump seamlessly takes over, guaranteeing continuous operation of the fire protection system. This dual-power configuration offers both reliability and flexibility, providing comprehensive coverage for fire safety needs. With smart controls and automatic switching mechanisms, the transition between electric and diesel engine pumps is seamless, minimizing system downtime. Equipped with advanced safety features, including monitoring and alarm systems, real-time status updates allow for prompt action in case of any irregularities.

UL fire pump, certificate number EX28132,
meet UL 448 standard for pumps for Fire-Protection Service
Flow 200-2000 GPM
Rated pressure: 103-224 PSI
Speed： 2950-3550 RPM (50hz or 60hz)
Maximum working pressure: 280 PSI

Self-priming fire pumps offer fast startup, no foot valve, and easy maintenance—ideal for industrial sites, emergency zones, and temporary fire systems.

The fully automatic electric pump set offers an integrated and efficient fire water supply solution, ideal for modern buildings, high-rises, and industrial facilities. It features smart control, stable pressure, and energy-saving performance for enhanced fire protection.

A fire pump is part of the water supply for a fire sprinkler system and is powered by electricity, diesel or steam. It uses water from an external source to increase water flow and pressure. The pump inlet is either connected to a public groundwater supply line or to a static water source. The pump provides higher pressure water flow to the sprinkler system risers and hose risers. Fire pumps must be tested monthly and annually to ensure they are operating as designed. These two different tests are called the monthly “churn” test and the annual flow test.

Electric fire pumps are used in various water environments, not only to meet the general water supply but also to be a good helper for fire-fighting water. The electric fire pump is manufactured with good structure and workmanship. It has a wide range of performance, and is easy to use and operate for a long time. The electric fire pump is aimed at various fire water environments, so the selection should also be based on the actual demand environment, performance parameters, etc.

The diesel-electric integrated fire pump, designed for continuous firewater supply during emergencies. It features dual power (diesel and electric), smart controls, compact structure, durable materials, and broad industry applications—ideal for buildings, factories, and petrochemical facilities.

Vertical electric fire pumps are small in size and highly efficient. They are suitable for underground garages and small factories. They are easy to install and operate stably. They are an ideal choice for fire protection systems in small and medium-sized buildings.

High-performance diesel engine fire pumps are known for their independent power drive, rapid start-up, and stable water supply, making them suitable for critical locations such as high-rise buildings, industrial plants, ports, and airports. Their intelligent control system, durable structure, and efficient operation ensure a reliable fire-fighting water supply even during power outages, making them an ideal choice for ensuring fire safety.
