Customized Fire Pump Solutions: Meeting the Demands of Various Scales and Locations

Diesel engine fire pump is also called “engineering diesel engine fire pump set”. Its national standard model is XBCL/Q, where L and Q represent the lift value and flow value of the fire pump respectively. This type of diesel engine fire pump set has good starting performance, compact structure, humanized design, convenient maintenance, simple and convenient use, and high degree of automation. It is a very good fire pump.

Application Scope:

Equipment for small buildings, warehouses, docks, airports, petrochemical, power plants, liquefied gas, textiles, ships, oil tankers and other occasions of a fire service.

Using Instruction:

Altitude ≤ 1000m;

Ambient temperature: +5 °C ~ +40 °C;

Relative humidity: <= 90%.

This series of pumps meets the requirements of fire pumps in terms of performance, structure, materials and matching. Due to the use of excellent hydraulic models, this series of pumps has the advantages of meeting user requirements, high efficiency and wide performance range, which can better save floor space; high-quality motors with high-quality bearings make the pump run more safely. Reliable, low noise, low vibration; the use of hydraulic balance axial force can make the operation more stable. The scope of application is suitable for fire water supply in various occasions such as residences, hotels, office buildings, commercial buildings, factories, hospitals, etc.

High-pressure diesel fire pumps are designed specifically for high-rise buildings, providing independent energy, powerful head, and continuous and stable water supply performance. They can operate reliably even during power outages, ensuring the pressure of fire sprinkler and fire hydrant systems, and providing reliable emergency fire water supply solutions for high-rise facilities such as office buildings, commercial complexes, and residences.

This electric fire pump package integrates a high-efficiency pump, intelligent control system, and powerful motor. It offers outstanding efficiency, safety, automation, and international standard compatibility, making it ideal for modern fire protection in various buildings.

Measure pump head: Plot flow vs. pressure to establish head-capacity relationships.
Use test results: Compare actual performance to manufacturer data.
Identify pump efficiency: Evaluate power consumption at different operating points.

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

The diesel-electric integrated fire pump, designed for continuous firewater supply during emergencies. It features dual power (diesel and electric), smart controls, compact structure, durable materials, and broad industry applications—ideal for buildings, factories, and petrochemical facilities.

The vertical multistage centrifugal pump set cooperates with the main pump to take water from the pool and transport it to the system to maintain the system pressure.
The pressure stabilizer pump of the “stabilized high pressure” fire water supply system must be kept in operation at ordinary times to maintain the pressure of the pipe network. In the event of a fire, it should still be able to run for a period of time until the main fire pump is started. Set up the booster pump. Because the constant pressure pump needs to keep running all the time, which wastes energy, and the constant pressure pump is in working state for a long time, it has high requirements on its service life, so this method is no longer used in the project.

In today’s era of sustainable building development, an energy-efficient fire protection system has become crucial for safety. Our new integrated electric booster pump combines a high-efficiency electric motor, precision pump, and smart control cabinet, all optimized to achieve the perfect balance between energy saving and stable water supply. This unit not only offers rapid startup and accurate pressure regulation but also significantly reduces energy consumption and operational costs while ensuring continuous fire protection, meeting the modern requirements for green and safe buildings.

Designed with modular construction for easy installation and maintenance, the product uses high-grade corrosion-resistant materials and advanced sealing technology to maintain reliable performance in various extreme conditions. Standardized design and international certifications ensure its broad applicability and dependability in high-rise buildings, commercial complexes, and industrial facilities. Choosing our electric booster pump not only provides robust technical support for emergency fire protection but also drives the intelligent upgrade of green building fire systems, contributing to a sustainable, secure, and environmentally friendly future.

As a fixed fire-fighting equipment, the diesel engine fire-fighting pump set has been widely used in fire-fighting diversion, especially for fire-fighting water supply in unexpected situations such as no power supply or abnormal power supply (mains power). According to the needs of users, it can also be equipped with other diesel engines as power engines.

Learn how to read fire pump performance curves to evaluate flow, pressure, and efficiency for selecting the right pump and ensuring optimal fire protection.

Key Factors to Consider:
NPSHa vs. NPSHr: The Net Positive Suction Head Available (NPSHa) must always exceed the Net Positive Suction Head Required (NPSHr) to prevent cavitation.
Elevation & Water Source: Pumps drawing from underground tanks or reservoirs need to account for elevation changes and friction losses.
Pipe Sizing & Layout: Use properly sized pipes and minimize bends to reduce suction losses.
Compliance with NFPA 20: Follow recommended practices for suction piping to ensure smooth operation.

Yes, various national and local codes and standards, such as NFPA 20 (Standard for the Installation of Stationary Pumps for Fire Protection), provide guidelines for the installation, operation, and maintenance of fire pumps.

A fire pump is required when the available pressure from the water system is insufficient to supply adequate pressure to all of the sprinkler heads in the structure at the required flow. The required flow is based on heads activating in a given area, which is determined by the hazard to be protected. Fire pumps are more commonly needed in taller buildings, but can also occur in shorter buildings in hilly locations.

Durable diesel fire pump with independent power supply ensures reliable water delivery without electricity, featuring fast start, high efficiency, strong adaptability, and low maintenance, ideal for mines, chemical plants, and ports.

This horizontal split case centrifugal fire pump is a high-efficiency, stable, and reliable firefighting solution designed to meet high-flow demand in large buildings and industrial facilities. Its unique double-suction design delivers higher flow rates and outstanding hydraulic performance, significantly enhancing fire suppression efficiency. Constructed with thickened cast iron, the pump is corrosion-resistant and pressure-resistant, ensuring durability in harsh environments. It can be driven by either an electric motor or diesel engine, offering flexible installation options. Widely used in high-rise buildings, airports, ports, power plants, petrochemical sites, and warehouses, this pump is a vital component for rapid response and effective firefighting.

1.Flow：30-9000 GPM
2.Head： 3-20 Bar 40-300 psi
3.Power：Diesel & Electric Pump:1.5-710kw Jockey Pump:0.55-160kw
4.Speed：740-2900 r/min
5.Caliber：65-350 mm
6.Working Pressure：≤1.6 MPa
The EDJ Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations.

There are numerous ways to maintain fire pumps and water pumps. The following styles are more effective. You can use them for reference
System 1 The installation of the pump set should be accurate and dependable, and there should be no egregious vibration duringoperation.However, or the bearing is hot to the touch( the temperature is advanced than 60 °C) and the water seepage in the seal of the pump shaft is further than 60 drops per nanosecond, the cause must be set up out and the fault should be excluded in time, If the pump makes abnormal noise when pumping water.
the
system 2 Screws that are squinched daily, similar as packing gland screws, irrigation entrapments,etc., should be disassembled with a suitable wrench and a reasonable necklace. You can put some slicking oil painting on it or wipe it regularly with an oil painting cloth to help rust; if the water drain screw isn’t used constantly, it’s easy to rust, so after buying a new water pump, you should first wind the water drain draw, and apply some machine oil painting and white lead oil painting on the screw thread, Change the new oil painting two or three times a time in the future.
the
System 3 If the pump is waxed with machine oil painting, the slicking oil painting should be replaced once a month; if it’s waxed with adulation, it should be replaced every six months. It should be noted that the water pump uses calcium- grounded grease, and the motor uses sodium- grounded grease, and they shouldn’t be used inaptly. Because sodium- grounded grease is hydrophilic, it’ll emulsify into froth and dissipate when it encounters water on the pump, while calcium- grounded grease is hysterical of high temperature, so it’s easy to melt when the temperature rises when used on a motor.

system 4 Don’t pump water with too important beach, so as to avoid unseasonable wear and tear of the impeller, mouth ring and shaft, and try to help water deficit operation. Running without water will damage the water seal, and the water pump is prone to water leakage or indeed no water.
System 5 After the irrigation and drainage season is over, the water pump should be precisely gutted and auditedimmediately.However, they should be repaired or replaced in time, and the corridor that should be waxed should be filled with suitable oil painting; Stylish stored in a dry place, If any damaged or misshaped corridor are set up to be unworkable.

Discover a compact modular fire pump unit engineered for high efficiency, stable pressure supply, intelligent control, and easy installation. Ideal for high-rise buildings, industrial facilities, warehouses, and retrofit projects, offering reliable performance, long service life, and fully integrated fire protection capability.

Electric pump + diesel pump + joceky pump
The three pumps are automatically started and stopped. When the joceky pump detects that the electric pump cannot operate normally, the diesel engine pump will start automatically. Can also be used, the fire pump set is widely used in various emergency firefighting occasions.

As the name implies, fire pumps are used in firefighting. They are divided into different types according to different classification methods. They are widely used in environmental protection, water treatment, firefighting and other departments to pump various liquids due to their fully sealed, leak-free, and corrosion-resistant characteristics. , It is the ideal pump for creating leak-free, pollution-free civilized workshops and civilized factories.

This electric fire pump system is designed and manufactured in strict accordance with international fire protection standards. It is widely used in high-rise buildings, industrial plants, logistics centers, and other scenarios. Equipped with a high-efficiency motor and a reliable pump body, the unit features fast start-up, stable flow, high head, and low operational noise—delivering a dependable water supply during emergencies to ensure quick fire suppression response.

The system integrates an intelligent control panel, enabling functions such as automatic start/stop, fault alarm, and system self-check, enhancing both operational safety and ease of management. Each unit undergoes rigorous factory testing to guarantee stable and reliable performance. Whether for new construction or retrofit projects, this fire pump system is an ideal solution to ensure the steady operation of fire protection infrastructure.

Flow: 120GPM≤Q≤1500GPM
Rated pressure: ＜150m
Speed: 2950 to 3550 RPM
Frequency: 50Hz or 60Hz

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min
By choosing the DJ (Diesel engine pump + Jockey pump) Fire Pump Set, you opt for a reliable, efficient, and secure solution to protect your property and ensure the safety of occupants. Whether for commercial buildings, industrial facilities, or residential areas, it is an indispensable fire safety equipment that offers robust support and protection to your fire protection system.

Flow: 14-2700 GPM
Head: 12-80 meter
The EJ Dual Power Fire Pump System is an innovative and reliable fire protection solution. Combining an electric pump for robust water pressure and flow with a top-quality jockey pump for stable pressure maintenance, this system ensures efficient and timely water supply during fires. With advanced automation, remote monitoring, and energy-saving features, the EJ Dual Power Fire Pump System is a trusted choice for commercial, industrial, and residential applications.

1. When the pipeline fire pump noise occurs, the most likely fault is the imbalance of the fire pump rotor. Since the water output of the fire pump mainly depends on the high-speed rotation of the rotor, when the rotor is unbalanced for some reason, it will cause the fire pump to deviate from the original rotation track during the rotation process, resulting in the fire pump appearing in the pipeline. When judging the failure of the rotor, it is mainly to replace the rotor of the pump or make a balance hole on the rotor blade of the pump to find out the balance difference.

2. The production noise of the fire pump pipeline has a certain effect. For example, forcing a small flow of a pipe “fire pump” to increase power to increase the original flow will create vibrations in the fire pump. Therefore, whether you use a pipeline fire pump or other types of water pumps, you should follow the water pump use standards to prevent the water pump from making noise, which will affect the service life of the water pump. The solution is to use the pump according to the instructions. If the efficiency of use is affected, it is recommended to replace the appropriate pipeline “fire pump” for use.

3. The installation did not meet the standards, resulting in abnormal noise from the pipeline fire pump. Fire pumps and fire hydrant pumps vibrate at a high frequency during operation, so they must be fixed during installation. If the bolt between the pump body and the base or between the base and the base is loose when installing the pipe fire pump, the transmission shaft between the pump body and the motor of the pipe pump will be bent. It lowered the concentricity and caused an imbalance in the fire pump rotor. This is one of the noise phenomena of fire pumps. In order to improve this phenomenon, the pump shaft of the fire pump needs to be balanced and then reinstalled. Finally, the base of the pump was reinforced.

4. Blockage of the impeller passage can also cause fire pump noise. When the internal flow channel of the fire pump is blocked by foreign matter, it will cause uneven resistance of the fire pump impeller and vibrate the fire pump. Therefore, it is necessary to regularly disassemble and maintain the fire pump to prevent foreign matter from blocking the pipeline.

5. The bearing of the fire pump is damaged. Bearing damage generally does not occur on the main body of an in-line fire pump. If there is a problem with the quality of the pump, or because some hard objects enter the pump body of the tube pump, the bearing is damaged, and the rotor is unstable at first. Causes noise from pipeline fire pumps.

6. Finally, cavitation, cavitation occurs in any type of pump, but some are obviously not noticeable. If cavitation occurs, consider raising the fire pump or increasing the pressure in the piping. If the cavitation phenomenon cannot be changed, the fire pump model needs to be redesigned and replaced.

Philippines clients DJ fire pump set waiting for package and dispacth

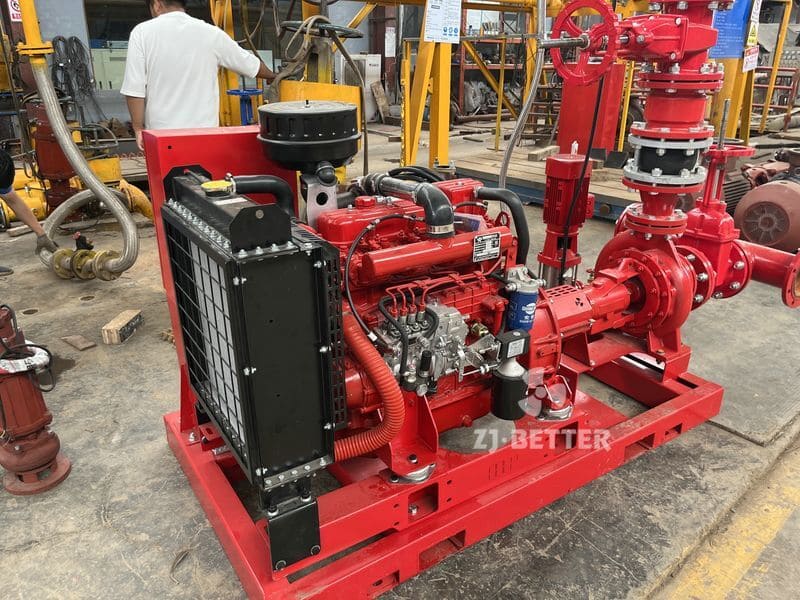

250gpm 8bar DJ fire pump, with ISW model engine pump and one jockey pump on one skid

The horizontal split case fire pump offers high flow capacity, double-suction design, low noise, and easy maintenance—making it the ideal solution for stable fire protection in modern buildings, industrial zones, and municipal projects. Discover its structure, performance, and wide-ranging applications.

dvantages：
Integrated fire pump systems combine pumps, power, and controls into one unit, offering:
1.Easy Installation – Pre-assembled, requiring only pipe and power connections.
2.Space-Saving – Compact design for limited-space rooms.
3.Efficient & Reliable – Optimized performance with reduced failure rates.
4.Smart Control – Remote monitoring and auto start-stop.
5.Emergency Backup – Supports electric or diesel power for uninterrupted operation.
Applications：
Ideal for high-rise buildings, industrial parks, warehouses, hospitals, and airports, providing reliable fire protection for various facilities.
