Diesel engine fire pump leakage how to do

The EDJ fire pump group is composed of electric pump + diesel pump + jockey pump. The three pumps are automatically started and stopped. When the stabilized pump detects that the electric pump cannot operate normally, the diesel engine pump will start automatically. Can also be used, the fire pump set is widely used in various emergency firefighting occasions.

Diesel engine fire pump is also called “engineering diesel engine fire pump set”. The diesel engine fire pump set has the characteristics of good starting characteristics, strong overload capacity, compact and reasonable structure, convenient maintenance, simple and reliable use, etc. The unit is equipped with protection functions such as overspeed, low oil pressure, three start failures, high water temperature, low oil level, and low battery voltage. It can completely meet the fire water supply in various occasions of warehouses, docks, airports, petrochemicals, power plants, liquefied gas stations, textiles and other industrial and mining enterprises.

The fire pump is designed to divert water when a fire is detected by the sprinkler system or other fire-detection device. The pump will then draw water from the water supply source and deliver it to the sprinkler system, fire hoses, or other fire suppression devices.

The motor fire pump unit is powered by an electric motor to drive the fire pump and output pressure water for fire fighting. The pump unit is mainly composed of a motor, a water pump, a transmission device, a common base and an instrument table. The starter cabinet is installed near the pump unit for starting the motor.
The electric fire pump set has the advantages of quick start, reliable water diversion, stable operation, high degree of automation, wide range of pressure and flow, etc. It is an advanced and reliable fixed fire-fighting equipment.

Diesel fire pump is suitable for discharging seriously polluted industrial wastewater, sewage discharge station in main residential area, water distribution system of urban sewage treatment plant, drainage station of civil air defense system, water supply equipment of waterworks, sewage discharge of hospitals and hotels, municipal engineering construction site, mine auxiliary machinery , rural biogas digesters, farmland irrigation and other industries. Sewage and dirt from conveyor belt particles can also be used for clean water and weakly corrosive media.

Fire pump system is made of Diesel+Jockey pump
1. Diesel engine pump, can use single stage pump, horizontal split case pump, end suction pump, multistage pump, material can be cast iron, stainless steel, and bronze impeller , with fuel tank, water tank，fan, control box
2. Jockey pump, horizontal or vertical, capacity will be small, but head should be higher than electric and diesel engine pump
Jockey material casing: cast iron, shaft and impeller: SS304

1. Diesel pump: the flow rate is the same as that of the electric pump. It connects pump sets with highly elastic couplings or universal joints.
2. jockey pump: vertical, small flow, higher lift than electric or diesel pumps.
3. Control panel: Automatically control the water pump with overload and overcurrent protection.
4. Accessories: suction pipe, discharge pipe with flange, battery, gate valve, check valve, flexible expansion joint, pressure switch, pressure gauge, base, etc.

EEDJ fire pump testing 250gpm, 6bar now!all product before shipment, we will do tesrting, then send to customers

EDJ-OTS is a powerful tool designed specifically for firefighting emergencies, aiming to deliver exceptional performance and reliability. It is the ideal choice for fire departments and industrial facilities, ensuring quick and efficient response to fires when it matters most. Whether you are a member of a fire department or responsible for industrial facility safety management, EDJ-OTS is your ultimate choice for a fire pump. Choose EDJ-OTS and safeguard your safety with unparalleled firefighting capabilities.

The EEJ Fire Pump System is an innovative solution designed to enhance fire safety in various settings. With exceptional performance and efficiency, the EEJ Fire Pump System delivers high pressure and large flow capacity, enabling rapid and effective fire suppression. Its intelligent features, including real-time monitoring and remote control capabilities, contribute to the system’s reliability and ease of operation. Overall, the EEJ Fire Pump System is a reliable choice for safeguarding lives and properties, making it an ideal fire protection solution for commercial buildings, industrial facilities, and residential areas.

The diesel engine fire pump is suitable for unattended emergency water supply systems. The product has the characteristics of good technology, high degree of automation, superior performance, complete protection functions, reasonable structure, simple installation, and high cost performance. pipe network pressure.

The EDJ Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations. With its lightweight and portable design, coupled with versatile functionality, the EDJ Diesel Engine Fire Pump System is suitable for various scenarios. Whether you are part of a fire department or an industrial enterprise, the EDJ Diesel Engine Fire Pump System is your indispensable rescue partner.

1.Flow：30-9000 GPM
2.Head： 3-20 Bar
The EDJ Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations.

Flow: 30-9000 GPM
Head: 3-20Bar
Speed: 740-2900r/min
Material: HT200, SS304, Bronze

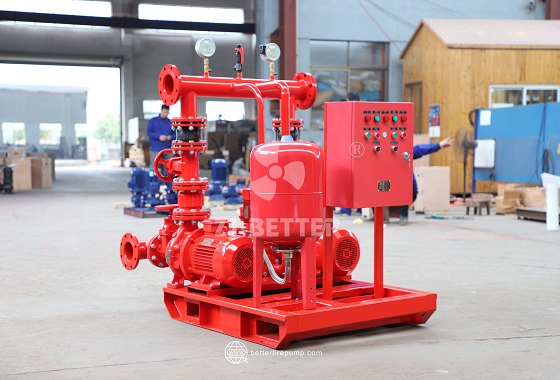

The EJ Dual Power Fire Pump System is an innovative and reliable fire protection solution. Combining an electric pump for robust water pressure and flow with a top-quality jockey pump for stable pressure maintenance, this system ensures efficient and timely water supply during fires. With advanced automation, remote monitoring, and energy-saving features, the EJ Dual Power Fire Pump System is a trusted choice for commercial, industrial, and residential applications.

The fire pumps produced by our company are suitable for fire protection occasions such as warehouses, docks, airports, petrochemicals, power plants, liquefied gas, textiles, ships, oil tankers and so on.

Instructions for use:
Altitude: ≤1000m;
Ambient temperature: +5℃～+40℃;
Relative humidity: <= 90%.

Fire pumps have a wide range of uses. In addition to providing water for fire-fighting pipeline systems, they can also be used in industrial water supply. Fire pumps can also be used in urban water supply and drainage systems. There are other relatively long-distance water supply work, such as heating boilers, bathroom boilers, hot and cold water circulation pressurization of multi-stage fire pump boilers, etc.

The EJ Dual Power Fire Pump System is an innovative and reliable fire protection solution. Combining an electric pump for robust water pressure and flow with a top-quality jockey pump for stable pressure maintenance, this system ensures efficient and timely water supply during fires. With advanced automation, remote monitoring, and energy-saving features, the EJ Dual Power Fire Pump System is a trusted choice for commercial, industrial, and residential applications.

Yes, fire pumps can be essential in remote or rural areas where a dedicated water supply for firefighting may not be readily available. They can draw water from natural sources or dedicated water tanks.

1.Flow：30-9000 GPM
2.Head： 3-20 Bar 40-300 psi
3.Power：Diesel & Electric Pump:1.5-710kw Jockey Pump:0.55-160kw
4.Speed：740-2900 r/min
The EDJ Fire Pump Set is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water.

The advantage of its product is that when a fire occurs, the power supply fails, and the electric fire pump set cannot be put into use normally, the diesel engine fire pump set can be put into operation automatically to ensure the normal fire fighting. Compared with the electric fire pump set, it does not need long-term investment in power supply, saving the mains power supply transformer and normal expenses. Diesel engine fire pumps are equipped with various automatic functions to meet customer requirements, ensure long-term normal standby status of the equipment, and put it into fire fighting work at any time. The diesel engine fire pump set is also suitable for various emergency backup pump occasions.

The outdoor fire pump set has significant advantages such as high efficiency, low operating noise, good cavitation resistance, reasonable structure and long service life. , long-distance water supply, heating, bathroom, boiler hot and cold water circulation pressurization, air conditioning refrigeration system water supply and equipment matching and other occasions.

1. Electric pump, can use multistage pump, material can be cast iron, stainless steel, and bronze impeller

2. Jockey pump, horizontal or vertical, capacity will be small, but head should be higher than electric and diesel engine pump

Jockey material casing: cast iron ,shaft and impeller SS304

The electric fire pump set is a fire pump powered by an electric motor, and generally consists of a set of fire pumps, electric motors, control cabinets and auxiliary devices. Because the electric motor fire pump set is composed of these parts, it forms a powerful fire protection and power effect, and provides a strong water source support for various fire hydrant systems and sprinkler systems in the building.

A typical firefighting pump system consists of the pump itself, intake and discharge hoses, nozzles, strainers or filters to prevent debris from entering the pump, and sometimes additional accessories like foam injection systems for enhanced fire suppression capabilities.

EDJ is our flagship product:
The conventional electric pump is the main pump, the diesel engine pump is the backup pump, and the voltage stabilizer pump plays a role in the stabilization of the whole system. When the electric pump fails or the mains is cut off, the control cabinet will receive the pressure gauge from the electric contact. When the signal comes, the diesel engine pump will be started within 5 seconds, and the rated working condition will be reached within 20 seconds to ensure the normal operation of the fire extinguishing work.

EDJ series fire pump set consists of electric pump + diesel pump + jockey pump and all accessories.
The dual power fire pump pressure switch and control cabinet can automatically turn on/off the three pumps – the electric pump and the jockey pump work when there is electricity, and the diesel pump when the power is off.
Flow range: 50-5000 GPM
Pressure range: 4-14 bar
Power range: 4-325 KW

A multistage pump refers to a pump with two or more impellers, which can absorb and press water in multiple stages, so as to lift the water to a high position. The lift can be increased or decreased according to the needs of the pump impeller. The multistage pump can be equipped with a four-stage motor by increasing the number of impellers when the single-stage pump head needs to be equipped with a two-stage motor, which can improve the service life of the pump and reduce the noise of the unit.

Fire fighting pumps are used in a wide range of settings, including residential, commercial, industrial, and wildland firefighting situations. They are also used in fire trucks, aircraft firefighting systems, and marine firefighting applications.
