Multistage EEJ Fire Pump Set

The EDJ fire pump unit consists of a fire pump, a double-shaft motor and a diesel engine. One end of the output shaft of the double-shaft motor is connected to the input shaft of the fire pump, and the other end of the output shaft of the double-shaft motor is connected to the One end of a clutch is connected, and the other end of the clutch is connected with the output shaft of the diesel engine. The fire water pump, the double-shaft extension motor, the clutch and the diesel engine are all fixed on the base. The double shaft extension motor, the clutch and the diesel engine are respectively electrically connected with a control circuit through an action drive circuit. With dual-power fire pumps, there is no need to configure a second fire pump, which reduces floor space and saves manufacturing costs.

The EEJ Pump Set is designed according to the customer’s specifications which is including 2 electric pumps, 1 jockey pump and 1 control panel.

1.Flow：30-9000 GPM
2.Head： 3-20 Bar 40-300 psi
3.Power：Diesel & Electric Pump:1.5-710kw Jockey Pump:0.55-160kw
4.Speed：740-2900 r/min
The EDJ Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations.

The EJ Dual Power Fire Pump System is an innovative and reliable fire protection solution. Combining an electric pump for robust water pressure and flow with a top-quality jockey pump for stable pressure maintenance, this system ensures efficient and timely water supply during fires. With advanced automation, remote monitoring, and energy-saving features, the EJ Dual Power Fire Pump System is a trusted choice for commercial, industrial, and residential applications.

Fire pumps should be tested on a regular basis according to national and local regulations. Common testing frequencies are monthly, quarterly, annually, and five-yearly, with different tests conducted at each interval.

1. Disconnect all electrical power to the fire pump and diesel engine.

2. Remove the fire pump and diesel engine from the mounting surface.

3. Drain the fuel from the fuel tank and disconnect the fuel lines from the engine.

4. Remove the hoses from the pump and the engine and drain the cooling system.

5. Remove the drive belt from the pulleys and remove the pulleys from the engine.

6. Remove the fan, flywheel, and starter motor from the engine.

7. Remove the cylinder head, piston rings, and other components from the engine.

8. Separate the pump from the engine and remove the impeller from the pump.

9. Disassemble the pump and engine into individual components.

10. Clean and inspect all parts for wear and damage.

11. Reassemble the pump and engine and reinstall on the mounting surface.

12. Reconnect the fuel lines and hoses and refill the cooling system.

13. Reconnect all electrical power to the fire pump and diesel engine.

The video displays a fire pump set consisting of jockey, electric, and diesel pump. The pump model is the OTS series.

It can run in the condition of power cut.
It can fully run in 15 seconds after the start signal.
Use Universal Joint, high transmission efficiency.
Good stability, vibration proof.
Motor pump is duty pump, diesel engine is for standby
Completely automatic control panel.
Suitable for any emergency firefighting occasions.
Customized product.

An anechoic check valve, control valve and pressure gauge should be installed on the discharge pipe of the fire pump; a pressure gauge and pressure switch should also be installed on the total discharge pipe of the system; a buffer device should be added when installing the pressure gauge. A cork should be installed between the pressure gauge and the buffer device; the pressure gauge range should be 2 times to 2.5 times the working pressure of the system when there is no design requirement.

ISW horizontal single-stage single-suction centrifugal pump is to be used for clean water or other liquid with similar physical and
chemical property to clean water. It is suitable for industrial and city water supply and drainage, pressure water supply for high-rises, garden sprinkling, fire fighting booster, distance conveyance, cooling circulation in heating and ventilating system, bathroom and other cool or hot water circulation boosters or accessories, whose operation temperature is below 60C.

The EDJ Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations. With its lightweight and portable design, coupled with versatile functionality, the EDJ Diesel Engine Fire Pump System is suitable for various scenarios. Whether you are part of a fire department or an industrial enterprise, the EDJ Diesel Engine Fire Pump System is your indispensable rescue partner.

The fire pumps produced by our company are suitable for fire protection occasions such as warehouses, docks, airports, petrochemicals, power plants, liquefied gas, textiles, ships, oil tankers and so on.

Instructions for use:
Altitude: ≤1000m;
Ambient temperature: +5℃～+40℃;
Relative humidity: <= 90%.

The DJ fire pump set consists of a pump connected to the diesel engine, jockey pump, pressure vessel, controller for manual or automatic operation of the system and standard accessories mounted on the base. The fire pump system can be customized for different uses, such as high-rise buildings, facilities, hospitals, supermarkets, shopping malls, villas, apartments, etc. This fire pump set can be used in fire hose and fire hose reel systems, fire sprinkler systems, fire water monitoring systems, fire alarm systems and fire hydrant systems.

The EDJ Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations. With its lightweight and portable design, coupled with versatile functionality, the EDJ Diesel Engine Fire Pump System is suitable for various scenarios. Whether you are part of a fire department or an industrial enterprise, the EDJ Diesel Engine Fire Pump System is your indispensable rescue partner.

The pump have the National Fire Protection Association Standard NFPA20 standards.The diesel engine fire pump is equipped with the characters of good and strong overload capacity, compact structure, easy to maintain and high degree of automation.
Fire Pump Equipment for warehouses, docks, airports, petrochemical, power plants, liquefied gas, textiles, ships, oil tankers and other occasions of a fire service.

The fire-fighting dual-power water supply equipment is suitable for all kinds of emergency backup pump places. The dual-power fire pump is suitable for various fire-fighting pressurization and pressure-stabilizing pump occasions; various villas, residential areas and other fire-fighting systems; industrial and civil building fire-fighting systems; suitable for various oil depots, oil product loading and unloading terminals, logistics parks and other fire protection levels Demanding places.

Electric pump + diesel pump + joceky pump
The three pumps are automatically started and stopped. When the joceky pump detects that the electric pump cannot operate normally, the diesel engine pump will start automatically. Can also be used, the fire pump set is widely used in various emergency firefighting occasions.

The electric fire pump set is powered by a motor from a well-known manufacturer. At the same time, it can be equipped with low-voltage, high-voltage and explosion-proof motors with different protection levels according to the user’s use environment and conditions. It is characterized by simple operation and maintenance, low noise, and less equipment requirements.

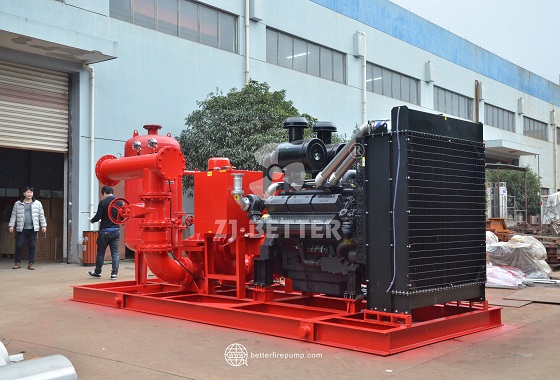

Diesel engine fire pump sets are mainly suitable for fire water supply systems in petrochemical, natural gas, power generation, cotton and linen textiles, warehouses, airports, docks, high-rise buildings and other industries. It can also be used in occasions such as water ships, offshore oil tankers and fire fighting ships. The unit adopts imported diesel engine and fire pump. It has the characteristics of quick start, reliable water diversion, reasonable power reserve, stable operation, wide range of pressure and flow, etc. It is an advanced and reliable fire-fighting equipment.

There are many types of fire-fighting equipment, fire hydrants and fire extinguishers are a common category, and there is also a category of fire pumps, which can be described as the heart of the fire-fighting system and play an important role in pressurising the water supply for the fire-fighting system. Among the many fire pump products, fire pumps can be divided into multi-stage and single-stage fire pumps.

Multi-stage pumps have high efficiency, corrosion resistance, reliable operation and other properties, strong bearing capacity of the pump body, strong resistance to overload and more sensitive start. Ltd. introduces you to the relevant features of multi-stage pumps. First of all, Shanghai Xizhiquan multi-stage pumps have a compact structure, with small spacing between parts and small volume. The equipment runs smoothly, has a long service life and produces less vibration during operation, so the practical life of the equipment is correspondingly long.

With its unique structure, the direction of the water inlet and outlet can be adjusted according to different needs, so it is suitable for various place environments. The direction of the inlet and outlet is horizontal, which reduces the number of bends in the pipeline connection, thus simplifying the pipeline connection and greatly enhancing the efficiency of the fire fighting system.

The efficient operation of the multistage pump is used in many larger, more demanding fire-fighting locations. Its role is mainly to play a role in the fire fighting pipeline system to pressurise and send water, multi-stage pumps are not only suitable for all kinds of fire fighting systems, but also for industrial drainage, high-rise building water pressure supply, long-distance water delivery, water circulation pressure and other occasions.

When installing a fire pump, it is essential to adhere to specific requirements to ensure its proper functionality and compliance with safety standards. Here are some important installation requirements to consider:

Codes and Standards: Familiarize yourself with local fire codes, regulations, and industry standards applicable to fire pump installations.

Location and Accessibility: Choose an appropriate location for the fire pump that allows for easy access, maintenance, and serviceability.

Foundation and Mounting: Ensure that the fire pump is installed on a stable and level foundation capable of supporting its weight and minimizing vibration.

Electrical Connections: Electrical connections should be performed by licensed electricians following electrical codes and regulations.

Water Supply: Ensure an adequate and reliable water supply for the fire pump.

System Piping and Valves: The piping system should be installed following the pump manufacturer’s specifications and relevant standards.

Controls and Monitoring: Install the pump’s control panel and associated instrumentation according to manufacturer guidelines.

Testing and Commissioning: Thoroughly test and commission the fire pump system before placing it into service.

Documentation and Training: Maintain comprehensive documentation of the installation, including drawings, equipment specifications, test reports, and maintenance records.

It is crucial to consult with fire protection professionals, including fire engineers and pump manufacturers, to ensure compliance with all relevant requirements during the installation process. Proper installation is essential for the reliable operation of the fire pump and the safety of the facility and its occupants.

Electric fire pumps can be located inside the building. Office buildings and apartments are often equipped with electric fire pumps. In addition, upper floors sometimes install an additional electric fire pump above ground or basement to increase water pressure.

The electric motor fire pump is an important water supply equipment in the fire protection system. The electric motor fire pump has a wide range of head, flow and power, and can be used in many environments. Providing sufficient water supply is the key to ensure emergency use.

Safety precautions include wearing appropriate protective gear, ensuring proper ventilation when operating gasoline or diesel-powered pumps indoors, following proper procedures for fueling and starting the pump, and maintaining a safe distance from flames and hazardous materials.

With its full seal, no leakage, and corrosion resistance, it is widely used in environmental protection, water treatment, fire protection and other departments to pump various liquids. It is an ideal pump for building non-leakage, non-pollution civilized workshops and civilized factories.

The DJ Fire Pump Set is a combination system consisting of a diesel engine pump and a jockey pump, designed for fire safety in the construction and industrial sectors. This system utilizes the powerful power output of the diesel engine pump, ensuring reliable operation even in the event of a power outage. The jockey pump maintains a constant water pressure, optimizing the performance of the fire suppression system. The DJ Fire Pump Set offers a reliable and efficient solution for prompt response to fire incidents, making it an essential component for protecting property and ensuring occupant safety.

A diesel engine main pump. a jockey pump(used in the place where the pump runs entirely through the diesel engine)

Flow: 14-2700 GPM
Head: 12-80 meter
The EJ Dual Power Fire Pump System is an innovative and reliable fire protection solution. Combining an electric pump for robust water pressure and flow with a top-quality jockey pump for stable pressure maintenance, this system ensures efficient and timely water supply during fires. With advanced automation, remote monitoring, and energy-saving features, the EJ Dual Power Fire Pump System is a trusted choice for commercial, industrial, and residential applications.

Application Scope:

Equipment for small buildings, warehouses, docks, airports, petrochemical, power plants, liquefied gas, textiles, ships, oil tankers and other occasions of a fire service.

Using Instruction:

Altitude ≤ 1000m;

Ambient temperature: +5 °C ~ +40 °C;

Relative humidity: <= 90%.

EDJ series fire pump set consists of electric pump + diesel pump + jockey pump and all accessories.
The pressure switch and the control cabinet can automatically turn on/off the three pumps, the electric pump and the pipeline pressure pump work when there is electricity, and the diesel pump is started when the power is off.
Flow range: 50-5000 GPM
Pressure range: 4-14 bar
Power range: 4-325 KW
