Submersible fire pump

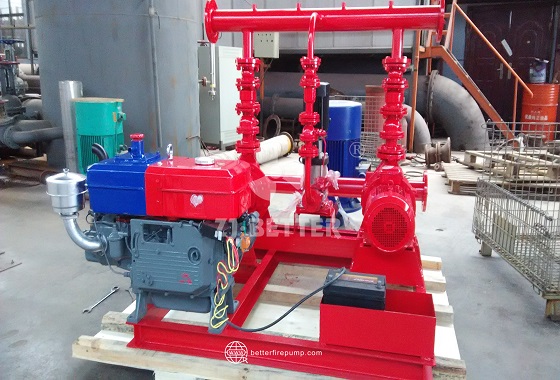

Philippines clients DJ fire pump set waiting for package and dispacth
250gpm 8bar DJ fire pump, with ISW model engine pump and one jockey pump on one skid

Fire pumps are designed to start promptly in case of an emergency. The time it takes to start depends on factors such as the type of pump (electric or diesel) and the specific system design. Regular testing helps ensure quick response times.

A multistage pump is a multistage centrifugal pump in which two or more impellers are installed on the pump shaft and connected in series to work together. A horizontal multistage centrifugal pump refers to a multistage pump in which centrifugal pumps with two or more impellers are combined. The multistage centrifugal pump is characterized by high efficiency and energy saving, wide range of use, special purpose, stable operation, long service life, convenient installation and maintenance, etc.

The EJ Pump Set is designed according to the customer’s specifications which is including 1 electric pumps, 1 jockey pump and 1 control panel.

1.Flow：30-9000 GPM
2.Head： 3-20 Bar
The EDJ Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations.

Flow: 25-100gpm
Rated pressure:H＜8bar
Speed: 2950-3550RPM

There are four types fire pump, including end suction pump, split case pump, multiage pump and vertical turbine pump. These fire pumps may bepowered by an electric motor or diesel engine and on rare occasion powered by a steam turbine.

It’s a customized EJ fire pump set consisting of electric pump, jockey pump along with control panel, and accessories. It is equipped with priming tank for doing negative suction.

Diesel engine fire pumps are getting more and more attention, and the scope of use is becoming wider and wider. From the original pure water delivery to the current delivery of various domestic sewage, industrial wastewater, construction site drainage, liquid feed, etc. It plays a very important role in municipal engineering, industry, hospital, construction, hotel, water conservancy construction and other industries.

1.Flow：30-9000 GPM
2.Head： 3-20 Bar (40-300 psi)
3.Power：Diesel & Electric Pump:1.5-710kw Jockey Pump:0.55-160kw
4.Speed：740-2900 r/min
The EDJ Fire Pump Set includes diesel engine pumps, electric pumps and jockey pumps.
In various fields, our products find applications in large hotels, hospitals, schools, office buildings, supermarkets, commercial residences, subway stations, train stations, airports, various transportation tunnels, petrochemical plants, thermal power plants,oil storage tanks, large warehouses, industrial and mining enterprises, seawater injection, etc.

The diesel engine with right-angle gearbox combination is a high-performance power transmission solution widely used in various industrial applications. It features a diesel engine as the primary power source and a right-angle gearbox for efficient power redirection and speed matching. This compact and reliable duo enhances production efficiency, reduces energy consumption, and provides a stable power source for industrial automation and ship propulsion systems. Its adaptability to diverse climate conditions and load demands further reinforces its significance in modern industries.

The DJ model is basically a combination of a diesel engine and a jockey pump. They consist mainly of end suction pumps driven by diesel engines and have no backup pumps. It is also combined with a jockey pump for maintenance to form a complete skid.

The complete DJ style skid is assembled with all discharge line fittings and connected to the skid mounted control panel.

Available DJ-type fire pump skid kits provide the following flows:
50, 120, 150, 250, 300, 350, 500, 750 and 1000 GPM.

The EE fire pump is composed of two electric pumps. According to the customer’s requirements, there is no jockey pump and control cabinet. It is a small fire pump set with competitive price. The fire pump set is being tested at the Better factory. , make sure the product is free of any problems.

Regular maintenance is crucial to keep fire pumps in optimal condition. It involves inspecting, lubricating, and replacing components as needed. Maintenance helps prevent malfunctions, ensures reliability, and extends the life of the pump.

In addition to traditional fire suppression activities, firefighting pumps are crucial in specialized scenarios such as aircraft firefighting, where they provide the high-pressure water or foam needed to extinguish fires on aircraft. Similarly, marine firefighting pumps are essential for combating fires on ships and offshore platforms, requiring pumps specifically designed for maritime environments.

The ED Dual-Power Fire Pump System combines electric and diesel engine pumps to ensure uninterrupted fire protection and a reliable water supply. In the event of power outages or electrical failures, the diesel engine pump seamlessly takes over, guaranteeing continuous operation of the fire protection system. This dual-power configuration offers both reliability and flexibility, providing comprehensive coverage for fire safety needs. With smart controls and automatic switching mechanisms, the transition between electric and diesel engine pumps is seamless, minimizing system downtime. Equipped with advanced safety features, including monitoring and alarm systems, real-time status updates allow for prompt action in case of any irregularities.

The pump casing of the electric pump of the fire pump set can be made of cast iron or stainless steel, the impeller can be made of copper impeller, the flow head, pressure or other parameters of the diesel pump are the same as those of the electric pump, and the diesel engine is connected to the pump head through a coupling. The jockey pump is a vertical pump, and its technical parameters are different from those of electric or diesel pumps. Generally, the lift is higher than that of electric and diesel pumps, and can be customized.

1. Good sealing performance: The mechanical seal of the fire pump has a good sealing performance and can effectively prevent the leakage of liquid.

2. High reliability: The mechanical seal of the fire pump has strong anti-interference ability and can continuously run for a long time under the rated working conditions.

3. Easy installation and maintenance: The mechanical seal of the fire pump is easy to install and maintain, and its performance is not affected by the installation and maintenance process.

4. Long service life: The mechanical seal of the fire pump has a long service life and can work stably for a long time.

The basis for the selection of fire pumps should be based on the process flow, water supply and drainage requirements, and be considered from five aspects, namely, liquid delivery volume, device lift, liquid properties, pipeline layout, and operating conditions. Fire pumps are mainly divided into vertical and horizontal types. The flow rate of the conveying liquid is one of the important performance data for pump selection. It is directly related to the production capacity of the entire device. The working conditions of the fire pump: flow rate: 2～1400m3/h, Head: 5～130m, maximum working pressure of the system: ≤1.6MPa, working temperature: -15℃～+80℃.

Flow-1000GPM
Head-106psi
Power-100HP=75KW
EJ fire pump is composed of electric pump + jockey pump
Those pictures display OTS series electric motor pump. OTS double suction split-case centrifugal pump has a wide range of performance, with the ability for a variety of uses.

The EEJ fire pump set consists of two electric pumps + one jockey pump, which is suitable for fire protection occasions such as warehouses, docks, airports, petrochemicals, power plants, liquefied gas, textiles, ships, and oil tankers.

Air in a centrifugal pump usually occurs because of a suction issue. Air can be introduced into the pump either because of a piping issue, such as low water level, or an internal issue, such as incorrect impeller clearance. To prevent air from entering the inlet pipe and pump body, the piping should be checked to ensure it is properly sealed and the pump should be regularly inspected to check impeller clearance.

First of all, check whether the oil level is normal and cannot reach the oil mark line on the normal surface. If it is not, we must replenish it in time, but remember one thing, it cannot exceed the amount of the oil quantity indicator line.

Secondly, check the radiator. The water is appropriate. If it is not added in time, the water that needs to be added must be clean water, as long as it is clean water, or tap water is fine. Why not use groundwater, because impurities in groundwater can easily form scales in the water tank, which affects the cooling effect and is also prone to failure. In winter, we drive to preheat the car, add coolant to the car, and the fire pump is no exception. The weather in the north is very cold, so add the coolant to the fire pump according to the actual temperature.

Finally, check the installation of each part of the fire pump, such as whether they are stable, the connection between the screw and the screw, if there is any looseness, tighten the screw in time. To clean the fire pump, soak a canvas or dry cloth and wipe slowly on the body or on surfaces made of grease or dust.

The electric fire pump unit is driven by an electric motor and has many different structures such as horizontal and vertical.

The electric fire pump set has a small footprint, light weight, low noise, and good start-up and operation performance.

Although the electric fire pump set has the advantages of simple operation and maintenance, most of the design specifications of the fire protection system stipulate that when using the electric fire pump set, it should have the condition of dual-circuit power supply. And usually there should be a diesel engine fire pump set as a backup pump set.

Yes, fire pumps can be essential in remote or rural areas where a dedicated water supply for firefighting may not be readily available. They can draw water from natural sources or dedicated water tanks.

CDL stainless steel vertical multistage pump is especially suitable for boiler feed water, and can also be widely used in pressure vessel water supply, hot water circulation, high-rise building water supply, farmland irrigation, fire pressurization, hydraulic flushing, food, brewing, medicine, chemical industry, aquaculture , environmental protection, chemical process and machine tool supporting industries, as the power equipment for water supply and drainage.

The EJ Dual Power Fire Pump System is an innovative and reliable fire protection solution. Combining an electric pump for robust water pressure and flow with a top-quality jockey pump for stable pressure maintenance, this system ensures efficient and timely water supply during fires. With advanced automation, remote monitoring, and energy-saving features, the EJ Dual Power Fire Pump System is a trusted choice for commercial, industrial, and residential applications.

The Fire Pressure Stabilization Equipment, coupled with the CDL Vertical Multistage Fire Pump, offers a comprehensive solution to elevate fire safety measures. This powerful combination ensures a consistent water pressure for effective fire suppression. By incorporating pressure stabilization technology, this system guarantees an uninterrupted fire water supply, efficient water distribution, and reliable operation of fire hydrants and sprinkler systems. With advanced infrastructure and the ability to maximize firefighting capabilities, this configuration significantly enhances overall fire safety standards. Investing in fire pressure stabilization equipment is a proactive step towards ensuring superior fire protection and providing peace of mind in critical situations.

We proudly showcase high-quality fire pump sets and highly recommend the Max Power-2000kw-10KV Split Case EDJ Fire Pump Set, providing excellent performance and reliability for your fire protection system. The Max Power-2000kw-10KV Split Case EDJ Fire Pump Set is designed for large-scale fire applications. It possesses powerful capacity and efficient performance, ensuring your fire protection system can respond quickly in emergency situations and deliver sufficient water pressure and flow.

Whether it is for fire protection systems, industrial applications, or municipal projects, the Split Case EDJ fire pump set is capable and ensures efficient operation.

The EEJ Fire Pump System is an innovative solution designed to enhance fire safety in various settings. With exceptional performance and efficiency, the EEJ Fire Pump System delivers high pressure and large flow capacity, enabling rapid and effective fire suppression. Its intelligent features, including real-time monitoring and remote control capabilities, contribute to the system’s reliability and ease of operation. Overall, the EEJ Fire Pump System is a reliable choice for safeguarding lives and properties, making it an ideal fire protection solution for commercial buildings, industrial facilities, and residential areas.
