Electric Fire Pump Sets Provide Timely Fire Network Feedback Through Pressure Monitoring
The electric fire pump unit provides timely feedback on the pressure status of the fire pipe network through pressure sensors, pressure gauges, control cabinets and pressure-stabilizing pumps to achieve automatic control and pressure maintenance of the pump unit. It supports a variety of pump types, flow rates and head configurations and is suitable for warehouses, airports, petrochemicals, power plants, terminals and industrial fire protection systems.

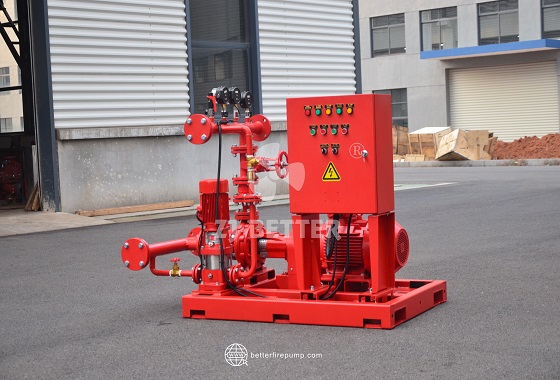

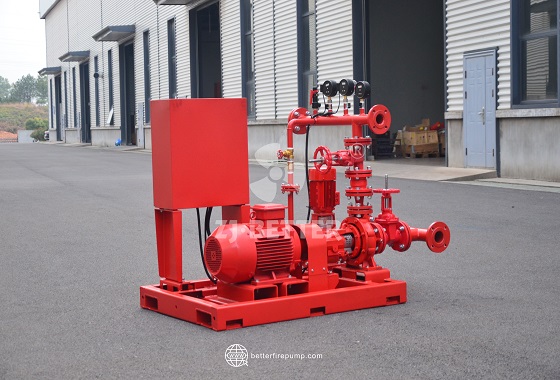

The electric fire pump unit is an important piece of equipment in the fixed fire water supply system. Through the combination of electric fire pumps, pressure stabilizing pumps, control cabinets and pressure monitoring accessories, it provides corresponding water supply power and pressure management for the fire protection pipe network. This system matches monitoring components such as pressure gauges and pressure sensors with the pump control system. When the pressure of the fire pipe network changes, the pressure status can be fed back in time to provide a basis for the operation control of the fire pump. According to the product information, this type of fire pump unit consists of an electric pump, a voltage stabilizing pump, a control cabinet and related accessories. The voltage stabilizing pump has the characteristics of small flow rate and high head, and can be used to maintain the pressure of the fire pipe network; the control cabinet is responsible for the operation control of the electric pump and voltage stabilizing pump, and is equipped with overload and over-current protection functions. During actual operation, the pressure sensor continuously obtains the pressure changes of the pipe network. When the system is in normal standby state, the pressure stabilizing pump can supplement the pressure according to the set pressure conditions to keep the pipe network within the corresponding working pressure range. When the demand for fire-fighting water increases and the pipe network pressure drops to reach the set conditions, the control system can start the corresponding fire pump based on pressure feedback to provide the required amount of water for fire hydrants, sprinklers and other fire-fighting facilities. Through the cooperation between pressure monitoring and pump unit control, the workload of relying on manual judgment of equipment status can be reduced, making the operation and management of fire water supply equipment more intuitive. The electric fire pump unit adopts a complete set design in structure. The main equipment is installed on a common base and is equipped with suction pipes, discharge pipes, check valves, gate valves, flexible joints, flanges, pressure gauges, pressure sensors, pressure tanks and other components, forming a complete equipment combination between the functional modules of the pump unit. The pressure tank can choose different pressure levels according to the lift of the fire pump. The pressure tank capacity listed in the product information includes specifications of 25, 50, 75 and 100 liters, and the pressure level can be selected from 0.6MPa, 1.0MPa or 1.6MPa. In terms of pump unit performance, the product data of this series shows that the flow range can cover 14–2700 GPM, the head range is 12–80 meters, and the rotation speed range is 740–2900 r/min. Material configurations such as cast iron, stainless steel or bronze impellers can be selected according to engineering requirements. The electric main pump can adopt different structural forms such as end-suction pump, horizontal double-suction pump, vertical split pump, vertical pipeline pump and vertical turbine pump to adapt to the flow and head requirements of different fire protection projects. As a pressure maintenance device in the system, the pressure stabilizing pump undertakes different tasks from the electric main pump. Its designed flow rate is small, but its lift is higher than that of the main fire pump, so it can compensate for small pressure changes in the fire protection pipe network without the need to frequently start the main fire pump. Taking product parameters as an example, the main pump head of some 25 GPM models covers 3–12 bar, and the corresponding pressure stabilizing pump head is about 3.7–12.7 bar. The model can be selected according to the specific fire protection system parameters. The control cabinet provides a unified operation management interface for the entire pump unit, which can automatically control the electric fire pump and pressure-stabilizing pump, and perform corresponding operations based on the pipe network status obtained by the pressure sensor. At the same time, the electrical protection function reduces the impact of abnormal operation on the equipment. This configuration enables pressure monitoring, pump unit control and fire water supply to form a cooperative working relationship, which is conducive to daily inspections and operation management by staff. This product is suitable for fire water supply scenarios such as warehouses, docks, airports, petrochemical industries, power plants, liquefied gas facilities, textiles, ships and oil tankers. It can also be configured according to the actual flow, pressure and installation conditions of the building fire protection system. Generally speaking, the electric fire pump unit realizes timely monitoring of the pressure status of the fire pipe network and equipment operation control through the combination of pressure sensors, pressure gauges, control cabinets, pressure stabilizing pumps and main fire pumps. While meeting the demand for fire water supply, it also provides a more intuitive data basis for equipment operation status judgment and daily maintenance. Its complete set of structure, optional pump types and various flow and head configurations enable it to adapt to the equipment selection needs of fire protection projects of different scales, and provide a complete pump set configuration solution for fixed fire water supply systems.
