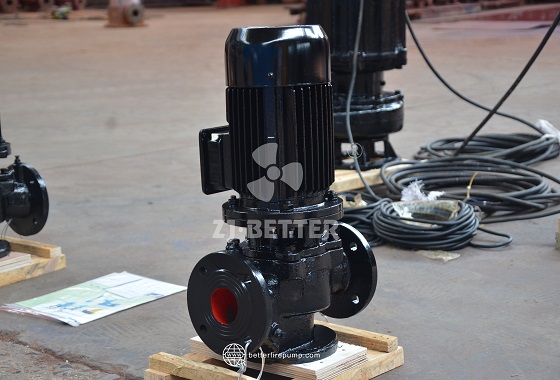

Vertical Inline Fire Pump for Compact High-Pressure Fire Water Boosting
Vertical Inline Fire Pump designed for compact high-pressure fire water boosting systems. Featuring space-saving vertical structure, stable high-head performance, durable cast iron construction, energy-efficient motor drive, and reliable continuous operation. Ideal for high-rise buildings, commercial complexes, industrial facilities, and municipal fire protection pipe network applications.
Vertical in-line fire pumps, as key booster equipment in modern building fire water supply systems, play a crucial role in various scenarios such as high-rise buildings, commercial complexes, industrial plants, warehousing and logistics centers, municipal fire pipeline networks, and public facilities, thanks to their compact structural design and stable high-pressure output performance. This product adopts a vertical direct-drive motor structure, with the pump body and motor coaxially mounted, resulting in a vertical layout and small footprint. It is particularly suitable for fire pump rooms or pipe shaft environments with limited installation space, allowing for rapid connection and stable operation without altering the existing pipeline routing. The inlet and outlet flanges feature a coaxial straight design, allowing direct connection to the pipeline network system, reducing bends and additional piping components, minimizing hydraulic losses, and improving overall system efficiency. As a compact high-pressure fire-fighting water supply booster, this vertical pipeline fire pump was designed with full consideration of issues such as insufficient water pressure in high-rise buildings, pressure attenuation over long distances, and uneven pressure distribution at multiple water points. By optimizing the hydraulic model and impeller structure, it achieves a balance between high head output and stable flow performance. It can quickly establish and maintain the required system pressure during a fire, ensuring the normal operation of fire hydrant systems, automatic sprinkler systems, water curtain systems, and other fire-fighting terminal equipment. The pump body is made of high-strength cast iron or ductile iron, with a robust and durable overall structure, excellent pressure resistance and corrosion resistance, maintaining structural stability even under long-term high-pressure operation, extending the equipment’s service life. The internal impeller undergoes precision casting and CNC machining, and is calibrated through dynamic balancing testing, maintaining low vibration and low noise operation during high-speed rotation, effectively reducing impact on bearings and sealing systems, and improving equipment reliability. The pump shaft is made of high-strength alloy steel, and after heat treatment and precision machining, it possesses excellent fatigue resistance and bending resistance, maintaining good concentricity during continuous operation to ensure stable transmission. The sealing system can be configured with high-performance mechanical seals or packing seals according to different project requirements. The mechanical seals utilize a combination of wear-resistant and corrosion-resistant materials, ensuring reliable sealing, effectively preventing leakage, and improving operational safety. The bearing system features a heavy-duty design and a rationally arranged lubrication method, reducing friction loss and extending service life, ensuring stable performance during continuous operation or periodic trial runs. The motor section uses a high-efficiency, energy-saving motor with excellent starting performance and continuous operation capability. It can quickly respond and start when the fire protection system pressure is lower than the set value, reaching rated speed and establishing stable pressure in a short time, ensuring rapid deployment of the fire protection system in critical moments. The vertical structure concentrates the center of gravity, ensuring smooth operation, reducing footprint while improving overall stability, making it particularly suitable for inter-floor pressurization or zoned water supply systems in high-rise buildings. The product employs an optimized flow channel structure in its hydraulic design, reducing fluid turbulence and eddies, improving hydraulic efficiency, reducing energy consumption, and achieving energy-saving operation. Under long-term standby conditions, this vertical pipeline fire pump exhibits excellent stability and reliability, demonstrating consistent performance in periodic tests, reducing maintenance frequency and operating costs. The standardized flange interface design facilitates on-site installation and maintenance, allowing for quick assembly and disassembly, shortening construction time and improving project delivery efficiency. Its compact structure, convenient installation, and simple maintenance make it particularly suitable for renovation projects and upgrades to existing building fire protection systems, achieving pressure boosting without large-scale adjustments to the pump room layout. The equipment can be used with intelligent control cabinets to achieve automatic start/stop control, pressure monitoring, fault alarms, overload protection, and phase loss protection, improving the automation and safety level of the fire protection system. During periods of fluctuating pipeline pressure or peak water usage, the equipment maintains stable output, preventing drastic pressure changes from impacting pipes and valves, thus enhancing the safety and stability of the entire fire protection system. Its high-efficiency operation reduces energy consumption while ensuring performance output, providing an economical and reliable solution for the long-term operation of large buildings and industrial facilities. The vertical pipe structure also provides excellent heat dissipation, and the vertical installation of the motor facilitates natural ventilation, extending the motor’s lifespan. The overall design balances performance and practicality, meeting the demands of high-pressure fire water supply while optimizing space and facilitating maintenance, making it an indispensable piece of equipment in modern building fire protection systems. By combining a compact design with high-pressure boosting capabilities, this vertical pipeline fire pump provides continuous, stable, and safe fire water supply for various buildings, responding quickly and operating continuously in critical moments to build a reliable defense for the safety of people and property. Its superior structural strength, stable pressure output, high-efficiency and energy-saving operation, and flexible installation adaptability make it an ideal high-pressure booster device choice for fire protection systems in high-rise buildings and commercial projects. It maintains excellent performance even under complex operating conditions, providing solid and reliable power support for modern fire protection engineering.
