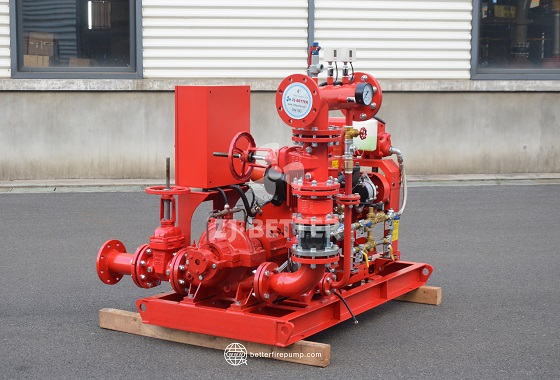

Modular Diesel Fire Pump Set for Large-Scale Fire Water Supply Systems

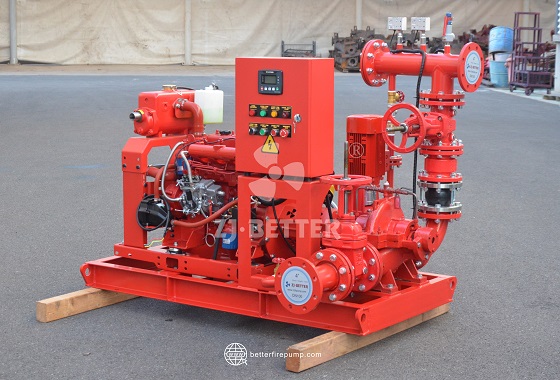

The modular diesel fire pump unit integrates a diesel engine, fire pump, jockey pump, control cabinet, and piping accessories. It offers flexible configuration based on flow rate, head, and pressure requirements, making it suitable for fire water supply systems in large-scale industrial facilities, warehouses, airports, ports, and petrochemical plants.
As requirements for fire-fighting water supply capacity rise across facilities such as large industrial plants, logistics centers, commercial buildings, airports, terminals, and petrochemical sites, fire pump equipment must not only deliver stable water supply performance but also be appropriately configured based on project-specific flow rates, pressures, heads, and installation conditions. Modular diesel fire pump sets feature an integrated design that mounts key components—including the diesel engine, main fire pump, jockey pump, control cabinet, pressure sensing devices, valves, and connecting piping—onto a unified base, creating a complete fire-fighting water supply unit comprising power, water supply, and control systems. This structure minimizes on-site coordination issues associated with distributed installation while facilitating transport, setup, commissioning, and maintenance. Serving as an independent power source, the diesel engine drives the main fire pump during emergencies, providing autonomous power support for large-scale systems; this is particularly suitable for environments demanding high continuity of water supply and reliable backup power. The main fire pump delivers water from the source to the fire-fighting network; pump models and power configurations are selected based on specific flow and head requirements to ensure an optimal balance between mechanical and hydraulic performance. Equipment configurations—including pump types and operational parameters—are tailored to project needs, taking into account factors such as building height, network resistance, required water volume, and terminal pressure specifications. These products typically cover flow ranges of approximately 30–9,000 GPM and pressure ranges of 3–20 bar, with exact specifications determined by system design requirements. A jockey pump can be included to compensate for minor pressure fluctuations in the network during standby, maintaining system pressure and preventing the main pump from starting frequently due to slight pressure drops. The control cabinet centrally manages the pump set’s operation and monitors status via devices like pressure sensors and gauges, ensuring intuitive operation. Ancillary components—such as pressure tanks, check valves, gate valves, flanges, flexible joints, and suction/discharge piping—are assembled according to project specifications to provide a comprehensive fire-fighting water supply solution. Another advantage of the modular structure is its configuration flexibility; specific solutions can be selected for different projects based on required flow rate, head, pressure, diesel engine power, and available on-site space, thereby avoiding the mismatches between equipment and system requirements that often arise from using fixed, standardized parameters. For large-scale fire water supply projects, integrating the diesel engine, fire pump, pressure-stabilizing equipment, control system, and piping accessories creates a compact, fully functional, and complete equipment package, which enhances installation efficiency and simplifies system management. These diesel-driven fire pump units are suitable for industrial plants, warehouses, logistics facilities, airports, ports, petrochemical and power facilities, and other large-scale fire water supply projects, providing a reliable emergency water supply source for fire protection networks. Through the optimal selection of pump type, flow rate, head, diesel engine power, and auxiliary components, modular diesel fire pump units can effectively meet the water supply demands of fire protection systems of varying scales, offering stable and flexible equipment configuration solutions for large-scale fire protection projects.
