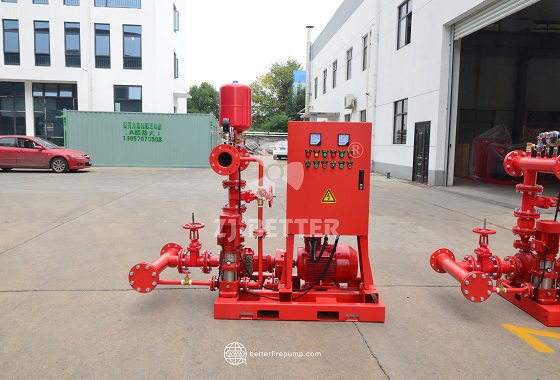

Packaged Fire Pump Equipment with Electric and Diesel Backup Pumps is a complete fire water supply solution designed for facilities that require dependable and continuous fire protection. The system typically integrates an electric motor driven main fire pump, a diesel engine driven standby fire pump, a jockey pump, control panel, pressure vessel, valves, gauges, sensors, flexible joints, flanges and a common base frame, providing a compact and coordinated pumping package for fire suppression systems. The electric pump serves as the primary duty pump during normal fire protection operation, while the diesel driven pump provides an independent backup power source when the electrical supply is unavailable or interrupted, significantly improving system reliability in emergency conditions. The jockey pump is designed with a smaller flow rate and higher pressure than the main pumps, helping maintain the required pressure in the fire protection piping network and reducing unnecessary starting of the main fire pumps caused by minor pressure fluctuations. Another major advantage is flexible pump configuration. Depending on project requirements, the electric and diesel pumps can be selected from single-stage, end-suction, horizontal split-case, vertical split-case, vertical inline or other suitable fire pump designs, with available materials including cast iron, stainless steel and bronze components. The packaged system can be engineered for different flow and pressure requirements, with published configurations covering approximately 30–1,250 GPM and 3–20 bar for packaged fire pump equipment, while other system configurations can cover wider flow ranges. Power options are also available across a broad range, allowing the pump package to be matched to different building sizes, fire protection networks and hydraulic requirements. The control panel provides automatic control of the electric pump, diesel pump and jockey pump, with functions such as overload and overcurrent protection to support safe and reliable operation. Standard accessories such as check valves, gate valves, pressure vessels, pressure gauges and pressure sensors can be integrated into the package, simplifying installation and reducing the need to coordinate multiple individual components on site. The equipment is suitable for warehouses, factories, docks, airports, petrochemical facilities, power plants, liquefied gas facilities, textile plants, ships, oil tankers and other industrial or commercial applications where reliable fire water delivery is essential. With an electric main pump, diesel backup pump and jockey pump working as an integrated system, this packaged fire pump equipment provides dependable pressure management, emergency backup capability, flexible configuration and efficient installation, making it a practical choice for modern fire protection systems.
