Powerful Fire Pumps: Ensuring Uninterrupted Emergency Water Supply

1. Better is a professional fire pump manufacturer with 18 years of industry experience

2. Professional sales team and R&D team, strong technology, self-produced control system

3. The motor is self-produced, which can produce 50/60Hz

The diesel fire pump system operates independently and does not require a power source. It is suitable for power outages, outdoor areas, and high-risk locations, ensuring uninterrupted fire water supply in critical scenarios and rapid and reliable emergency response.

Learn the required methods for fire pump testing, including weekly churn tests and annual flow tests, to comply with NFPA 25 and ensure peak performance.

EEJ Fire pummp set
Fire pump system is made of E+E+J
Operation: 1 Duty (electric) + 1 standby (electric) + 1 Jockey
Capacity: 100, 150, 200, 300, 400, 500, 750, 1000…GPM with pressure 4, 5, 6, 8, 10… Bar.
Pressure vessel 25, 50, 75, 100…liters, pressure will be 0.6mpa, 1.0mpa, 1.6mpa, select according to pump head.

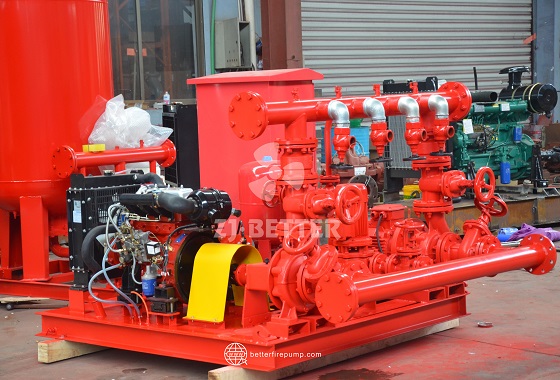

The EDJ fire pump group is composed of electric pump + diesel pump + jockey pump. The three pumps are automatically started and stopped. When the stabilized pump detects that the electric pump cannot operate normally, the diesel engine pump will start automatically. Can also be used, the fire pump set is widely used in various emergency firefighting occasions.

Discover the performance and reliability of horizontal coupling fire pumps, engineered for efficient, continuous water supply in modern fire protection systems. Ideal for high-rise buildings, industrial facilities, and emergency scenarios requiring powerful and stable operation.

Fire pump system is made of two Electric+Diesel+Jockey pump
The main eletric components is CHNT . If schneider or other brand electrical are need, should mention it before place the order
Diesel pumps can use vertical in- line pumps, horizontal end-suction pumps,vmultistage pumps, horizontal multi-stage pumps, split casing pumps and so on according to diffenent flow and head of customers

EDJ fire pump set is composed of diesel engine pump + electric pump + vertical jockey pump. Diesel fire pumps are typically used where there are potential reliability issues with the local power grid, with available flows of 50-5000GPM.

BETTER auto-start diesel fire pump system offers independent, intelligent fire protection for industrial and municipal use. NFPA20 & CE certified.

Diesel integrated fire pump system for harsh environments, offering stable pressure, fast startup, and modular installation for emergency use.

Diesel engine fire pumps can be divided into self-priming, centrifugal and double-suction types. Self-priming pumps are widely used in urban flood control and emergency rescue. Centrifugal pumps are divided into single-stage centrifugal pumps and multistage centrifugal pumps.

Fire pumps are classified into various types based on their specific applications and operational characteristics. The common classifications of fire pumps include:

Horizontal Split Case Fire Pumps: These pumps have a horizontally split casing, which allows easy access to internal components for maintenance and repairs. They are typically used in large-scale fire protection systems, such as industrial facilities, commercial buildings, and high-rise structures. Horizontal split case pumps are known for their high flow rates and can handle a wide range of pressures.

Vertical Turbine Fire Pumps: Vertical turbine pumps have a vertical shaft and are designed to operate with submerged impellers. These pumps are commonly used in water sources such as wells, rivers, or lakes. Vertical turbine fire pumps are ideal for locations where space is limited, as they have a small footprint. They are also suitable for applications that require high pressures but lower flow rates.

Vertical Inline Fire Pumps: Vertical inline pumps have a vertical design with the motor located above the impeller. These pumps are compact and space-saving, making them suitable for installations where floor space is limited. Vertical inline fire pumps are commonly used in commercial and industrial applications, such as office buildings, hospitals, and manufacturing facilities.

End Suction Fire Pumps: End suction pumps have a single impeller mounted on the end of the shaft. They are widely used in various applications, including fire protection systems. These pumps are known for their simplicity, ease of maintenance, and cost-effectiveness. End suction fire pumps are typically used in smaller buildings, residential properties, and light commercial applications.

Multistage Fire Pumps: Multistage pumps consist of multiple impellers arranged in series. Each impeller adds pressure to the water, allowing these pumps to deliver high pressures. Multistage fire pumps are suitable for applications that require high-pressure delivery, such as high-rise buildings, industrial plants, and sprinkler systems with demanding pressure requirements.

Diesel-Driven Fire Pumps: Diesel-driven fire pumps are powered by diesel engines, providing a reliable source of power in situations where electricity may be unavailable or unreliable. These pumps are commonly used in remote locations, off-grid areas, and critical infrastructure where continuous operation is essential. Diesel-driven fire pumps are known for their durability and ability to deliver high flow rates and pressures.

It’s important to note that these classifications are not exhaustive, and variations of fire pumps exist within each category. The choice of fire pump classification depends on factors such as system requirements, available space, flow rates, pressure requirements, and power sources. Consulting with fire protection experts or system designers can help determine the most suitable fire pump classification for a specific application.

All places need to be equipped with fire-fighting facilities, and fire pumps are necessary water intake equipment for fire-fighting facilities. At least one or two fire pumps are equipped. Our commonly used fire pumps are electric fire pumps and diesel engine fire pumps. The difference between the two is The electric fire pump needs to be supplied by the power system. If the power is cut off, the diesel engine fire pump can be started at any time to make up for the original position of the electric fire pump.

1.Flow：30-9000 GPM
2.Head： 3-20 Bar 40-300 psi
3.Power：Diesel & Electric Pump:1.5-710kw Jockey Pump:0.55-160kw
4.Speed：740-2900 r/min

The DJ Fire Pump Set is a combination system consisting of a diesel engine pump and a jockey pump, designed for fire safety in the construction and industrial sectors. This system utilizes the powerful power output of the diesel engine pump, ensuring reliable operation even in the event of a power outage.

1. Diesel pump: the flow rate is the same as that of the electric pump. It connects pump sets with highly elastic couplings or universal joints.
2. jockey pump: vertical, small flow, higher lift than electric or diesel pumps.
3. Control panel: Automatically control the water pump with overload and overcurrent protection.
4. Accessories: suction pipe, discharge pipe with flange, battery, gate valve, check valve, flexible expansion joint, pressure switch, pressure gauge, base, etc.

Users should be trained in the proper operation of the pump and follow all safety guidelines. It’s important to wear appropriate personal protective equipment, ensure proper ventilation, and be aware of potential hazards.

·UL Standard
Flow：50-3000 GPM
Head： 5-20 Bar (72.5-290 psi)
Speed：740-2900 r/min
·Non-UL Standard
Flow：30-9000 GPM
Head： 3-20 Bar (40-300 psi)
Speed：740-2900 r/min

1. Electric pump, can use single stage pump, horizontal split case pump, end suction pump, multistage pump, material can be cast iron, stainless steel, and bronze impeller
2. Diesel engine pump, with capacity and head equal to electric pump, with fuel tank, water tank，fan, control box
3. Jockey pump, horizontal or vertical, capacity will be small, but head should be higher than electric and diesel engine pump
4. Control panel: Auto Control of electric pump, diesel engine pump and Jockey Pump with overload, over current protection。
5. Accessories: check valve, gate valve, pressure vessel, generally 0.6mpa, 1.0mpa, 1.6mpa, Pressure Gauge, Pressure Sensor, Common Pipe for Suction and Discharge, Flexible Joints and Flanges, Common Base plant

Fire pumps are mainly used for pressurized water delivery in firefighting system pipelines, and can also be used in industrial and urban water supply and drainage, high-rise building depressurized water delivery, long-distance water delivery, heating, bathroom, boiler cold and warm water circulation pressurized air conditioning refrigeration system water delivery and equipment matching, etc.

The EDJ （Diesel Pump:XA, Electric Pump:XA）Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations. With its lightweight and portable design, coupled with versatile functionality, the EDJ Diesel Engine Fire Pump System is suitable for various scenarios. Whether you are part of a fire department or an industrial enterprise, the EDJ Diesel Engine Fire Pump System is your indispensable rescue partner.

A fire pump is designed to provide adequate water pressure to a sprinkler system during a fire emergency. It is usually powered by an electric motor or diesel engine and is capable of pumping water at a much higher pressure than a domestic water pump. A domestic water pump is designed to provide water pressure to a regular plumbing system for everyday use. It is usually powered by an electric motor and is capable of pumping water at a lower pressure than a fire pump.

Diesel engine fire pumps are suitable for use in high lift and high flow fire water supply environments or as backup fire water supply pumps. The reason is that the diesel engine has strong power and can be used with large flow fire deep well pumps, and the diesel engine fire pumps have the characteristics of self-starting when power is off. Emergency water supply is available, so a diesel engine fire pump is a good choice.

Better Technology Co.,Ltd is a professional manufacturer of kinds of fire pump systems. We provide diesel engine fire pump set, motor electric driven fire pump set, EDJ fire pump set. We also have UL, ISO CE Certificates. More information pls contact us.

ZJBetter provide three types of fire pump system, such as diesel engine fire pump set, electric driven fire pump set, EDJ fire pump set.

EDJ series fire pump set consists of electric pump + diesel pump + jockey pump and all accessories.
Pump – ISO Horizontal end suction pump
The three pumps are automatically started and stopped. When the joceky pump detects that the electric pump cannot operate normally, the diesel engine pump will start automatically. Can also be used, the fire pump set is widely used in various emergency firefighting occasions.

Diesel engine fire pump is a special diesel engine equipment, which has the characteristics of simple structure, reliable operation and long service life, and is widely used in the field of fire protection. When using a diesel engine fire pump, it is necessary to pay attention to maintenance and maintenance, and replace fuel, oil and filters in time to ensure the normal operation of the fire pump.

It shows the fire pump set being tested. We have a factory equipped with a testing center. Products will be tested before delivery.

Fire pump installations in historical buildings may have unique considerations to preserve the architectural integrity. Compliance with historical preservation guidelines and coordination with relevant authorities is crucial.

This is a set of 250gpm @ 8bar fire pump sets. We manufacture in strict accordance with customer requirements. All products will be tested before leaving the factory to ensure that there are no problems. The design meets the national standard of general packaging, meets customer needs, and standard handling and transportation.

Our company’s fire pump equipment is widely used in state agencies, various residences, pressurized pump stations, hotels, schools, hospitals, etc. due to its outstanding features such as environmental protection, energy saving, and safety.
