How do you troubleshoot common issues with fire pumps?

Flow: 30-9000GPM
Head: 3-20Bar
Speed: 740-2900r/min
Frequency: 50 HZ or 60 HZ
The ED Fire Pump Set combines electric and diesel engine pumps to ensure uninterrupted fire protection and a reliable water supply.
In various fields, our products find applications in large hotels, hospitals, schools, office buildings, supermarkets, commercial residences, subway stations, train stations, airports, various transportation tunnels, petrochemical plants, thermal power plants,oil storage tanks, large warehouses, industrial and mining enterprises, seawater injection, etc.

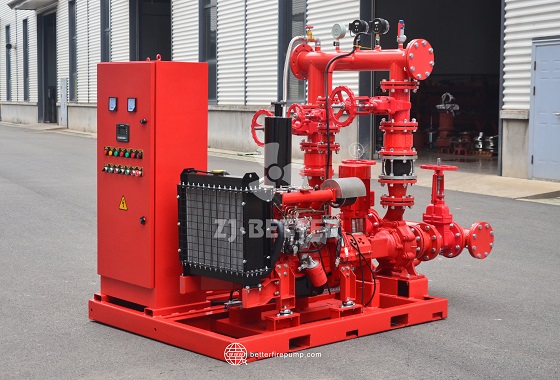

The diesel engine fire pump is suitable for unattended emergency water supply systems. The product has the characteristics of good technology, high degree of automation, superior performance, complete protection functions, reasonable structure, simple installation, and high cost performance. pipe network pressure.

The jockey pump of the jockey fire water supply system must be kept running at ordinary times to maintain the pressure of the pipe network. When a fire occurs, it should still be able to run for a period of time until the main fire pump is started. It must be set according to the main and standby pumps. pressure pump. Due to the need for the stabilizing pump to keep running, energy is wasted, and the stabilizing pump is in working condition for a long time.

1.Flow：30-9000 GPM
2.Head： 3-20 Bar 40-300 psi
3.Power：Diesel & Electric Pump:1.5-710kw Jockey Pump:0.55-160kw
4.Speed：740-2900 r/min
The EDJ Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations.

1.Flow：30-9000 GPM
2.Head： 3-20 Bar (40-300 psi)
3.Power：Diesel & Electric Pump:1.5-710kw Jockey Pump:0.55-160kw
4.Speed：740-2900 r/min
The EDJ Fire Pump Set includes diesel engine pumps, electric pumps and jockey pumps.
In various fields, our products find applications in large hotels, hospitals, schools, office buildings, supermarkets, commercial residences, subway stations, train stations, airports, various transportation tunnels, petrochemical plants, thermal power plants,oil storage tanks, large warehouses, industrial and mining enterprises, seawater injection, etc.

Diesel engine fire pumps can choose ductile iron and 304/3116 stainless steel materials, which can meet various special use conditions and technical requirements of users, and diesel engine fire pumps can be matched with different brands of diesel engines to ensure stable performance of diesel engine fire pumps. Long service life, high degree of automation.

100gpm 8bar small fire pump set test for Rwanda client

This is the three times client place order for us

3 set 100gpm 8bar EDJ fire pump set

250gpm bar EDJ fire pump

100gpm 10bar EDJ fire pump set

2000gpm diesel engine fire pump system which consist of diesel engine fire pump and jockey pump, this we export to Bangdesh

1. Electric fire pump: various end suction pumps and split pumps.
2. jockey pump: vertical, small flow, higher lift than electric or diesel pumps.
3. Control panel: Automatically control the water pump with overload and overcurrent protection.
4. Accessories: suction pipe, discharge pipe with flange, battery, gate valve, check valve, flexible expansion joint, pressure switch, pressure gauge, base, etc.

UL fire pump, certificate number EX28132,
meet UL 448 standard for pumps for Fire-Protection Service
Flow 200-2000 GPM
Rated pressure: 103-224 PSI
Speed： 2950-3550 RPM (50hz or 60hz)
Maximum working pressure: 280 PSI

Diesel engine fire pumps are used more and more widely. Diesel engine fire pump is a common and necessary facility. Only when the fire signal comes, and the electric water pump fails or the power supply is cut off, the diesel engine fire pump will automatically start. Diesel engine fire pump is installed together with electrical instruments, with complete functions, compact structure, automatic fault alarm, receiving start signal, and can automatically complete the start-up procedure and fast full-load operation. , Enough to ensure that the diesel engine fire pump is started in a low temperature environment, the whole system of the diesel engine fire pump is safe, reliable, and easy to use.

EJ dual-power fire pump group is used for various fire hydrants and sprinkler fire main pumps; it can more reliably ensure water safety in the event of a fire. EJ dual-power fire pump set is designed and manufactured by Beide Technology Co., Ltd. in accordance with GB 27898.5-2011 Fixed Fire Water Supply Equipment Part 5 <>. It meets the new 3CF requirements and has obtained 3CF certification for fire protection products. EJ small dual-power diesel engine fire pump is used for various fire hydrants and sprinkler fire main pumps; it is suitable for various fire boosting and pressure stabilizing pump occasions; various villas, residential areas and other fire protection systems; industrial and civil building fire protection systems ;Applicable to various oil depots, oil loading and unloading docks, logistics parks and other places with high fire protection requirements.

Electric motor fire pumps are used in various water environments, not only for ordinary water supply but also as a good helper for fire water. The electric motor fire pump is manufactured with good structure and technology, with a wide range of performance, simple operation and long-term use. The electric motor fire pump is aimed at various fire water environments, so the selection should also be based on the actual demand environment, performance parameters, etc.

Fire pumps are widely used in our production and life, such as water treatment, fire safety and other departments. ta fully sealed, no leakage, corrosion resistance and other characteristics, are widely used in life and production. The fire pump is mainly used for water delivery in the fire protection system. As an indispensable tool for the fire protection system, the fire pump has the characteristics of simple structure and stable performance, and because of its high speed and small volume, its efficiency is indeed very high.

1. Make sure all valves are open and the system is in good working order.

2. Check the fuel filter for any debris, and replace as needed.

3. Adjust the governor control to reduce the RPM of the engine, and limit fuel consumption.

4. Regularly inspect, clean and replace the air filter to ensure maximum efficiency.

5. Maintain the fuel injection system to minimize fuel wastage.

6. Use synthetic oil instead of petroleum-based engine oil.

7. Reduce the demand on the fire pump by using water pressure regulators or other available techniques.

8. Use the most efficient fuel type for the engine.

9. Use the most efficient nozzle size for the fire pump.

10. Use a variable frequency drive to reduce the engine speed and conserve energy.

The fire pumps used in the complete set of diesel engine fire pumps can be the IS series single-stage type, the S series new single-stage two-stage type, and the D-type series segmental multi-stage type produced by our company. The diesel engine water pumps used in this series of equipment are made of domestic or imported high-quality products. They have the characteristics of good starting characteristics, strong overload capacity, compact structure, convenient maintenance, simple use, and high degree of automation. They are advanced and reliable fire-fighting equipment.

1. Electric fire pump: various end suction pumps and split pumps.
2. jockey pump: vertical, small flow, higher lift than electric or diesel pumps.
3. Control panel: Automatically control the water pump with overload and overcurrent protection.
4. Accessories: suction pipe, discharge pipe with flange, battery, gate valve, check valve, flexible expansion joint, pressure switch, pressure gauge, base, etc.

Diesel fire pumps are ideal for applications where a separate pump room already exists or where the pump room is located on an exterior wall. Facilities using diesel fire pumps include warehouses, aircraft hangars and industrial facilities. Since they have a larger footprint than electric fire pumps, they are not suitable for installations where space is small. Unlike diesel pumps, electric fire pumps can be located inside buildings. Office buildings and apartments are often equipped with electric fire pumps. In addition, upper floors sometimes install an additional electric fire pump above ground or basement to increase water pressure.

Firefighting pumps can be equipped with various accessories and add-ons to enhance their performance and versatility. Common accessories include foam proportioning systems for generating fire-suppressing foam, hose reels for convenient storage and deployment of hoses, suction strainers and filters for protecting the pump from debris, and pressure regulators for controlling the flow and pressure of water.

With the continuous development of society, people have higher requirements for the quality of life, and the safety of diesel engine fire pumps is more important. All places need to be equipped with fire-fighting facilities, and fire pumps are water intake equipment for fire-fighting facilities. A fire pump Our commonly used fire pumps are electric fire pumps and diesel engine fire pumps. The difference between them is that electric fire pumps need power system supply. In the event of a power failure, the diesel engine fire pump can be started at any time to make up for the original position of the electric fire pump.

fire pump system assembly now! which consist of electric fire pump, diesel engine fire pump and jockey pump, with booster pump system

1. Jockey pump
2. Suction piping
3. Fire pump
4. Discharge piping
5. Pressure switch
6. Pressure gauge
7. Check valve
8. Control panel
9. Alarm system
10. Bypass valve
11. Priming chamber (if applicable)
12. Backflow preventer (if applicable)

30HP EJ fire pump product process

In the fire fighting pipeline pump, according to the different installation methods can be divided into vertical fire pumps and horizontal fire pumps, many people have questions about these two common pumps, what is the difference between the two? Shanghai Xizhiquan will explain the difference between horizontal and vertical pumps.

Obviously, different installation methods take up different space. Vertical pipeline pumps are installed vertically, covering a relatively small area, and vertical fire pumps do not require a foundation, while horizontal fire pumps need to be equipped with a base.

According to the different structures of the two pumps, it can be concluded that there is also a certain difference in the ease of maintenance of the two types of fire fighting pipeline pumps. The impeller of the vertical fire pump needs to be dismantled from top to bottom, which makes maintenance more difficult; the horizontal fire pump only needs to have the inlet pipe removed so that the impeller can be overhauled, which is relatively simple.

Due to the different inlet and outlet pipe directions, the pipeline connection between vertical and horizontal is also different. As the vertical pump is a bottom-up structure, while the horizontal fire pump is longitudinally arranged on the base, so the motor of the vertical pump and the pump body are connected in the form of sub-mouth connection, while the horizontal pump needs to use couplings to connect with the motor, and the horizontal pipeline pump needs to be corrected regularly.

Translated with www.DeepL.com/Translator (free version)

The Fire Pressure Stabilization Equipment, coupled with the CDL Vertical Multistage Fire Pump, offers a comprehensive solution to elevate fire safety measures. This powerful combination ensures a consistent water pressure for effective fire suppression. By incorporating pressure stabilization technology, this system guarantees an uninterrupted fire water supply, efficient water distribution, and reliable operation of fire hydrants and sprinkler systems. With advanced infrastructure and the ability to maximize firefighting capabilities, this configuration significantly enhances overall fire safety standards. Investing in fire pressure stabilization equipment is a proactive step towards ensuring superior fire protection and providing peace of mind in critical situations.

The EJ (Electric pump + Jockey pump) Dual Power Fire Pump System is an innovative and reliable fire protection solution. Combining an electric pump for robust water pressure and flow with a top-quality jockey pump for stable pressure maintenance, this system ensures efficient and timely water supply during fires. With advanced automation, remote monitoring, and energy-saving features, the EJ Dual Power Fire Pump System is a trusted choice for commercial, industrial, and residential applications.

1. The fire pump packing seal should be able to form a reliable seal without leaking, and it should have good wear resistance.

2. The packing seal should have good elasticity and flexibility in order to accommodate the thermal expansion and contraction of the pump.

3. The packing seal should be able to maintain its shape and flexibility over time, and it should also be resistant to corrosion from the pump’s fluids.

4. The packing seal should be easy to install and remove, and it should be able to withstand high pressures and temperatures.

1. Choose a fire pump with good performance and reliable quality.

2. The fire pump should be suitable for the working pressure and flow rate required by the fire fighting system.

3. Pay attention to the safety performance, reliability and stability of the fire pump.

4. Check whether the fire pump meets the requirements of the relevant national standards.

5. Pay attention to the after-sales service of the fire pump manufacturer.

6. Consider the cost performance of the fire pump.

7. Choose a fire pump from a qualified manufacturer.

The conventional electric pump is the main pump, the diesel engine pump is the backup pump, and the voltage stabilizer pump plays a role in the stabilization of the whole system. When the electric pump fails or the mains is cut off, the control cabinet will receive the pressure gauge from the electric contact. When the signal comes, the diesel engine pump will be started within 5 seconds, and the rated working condition will be reached within 20 seconds to ensure the normal operation of the fire extinguishing work.

Application areas: commercial, municipal and residential high-rise buildings, large industrial plants and warehouses, offshore and remote facilities, airports, power stations.
Industrial fields: various petroleum, petrochemical, chemical, oil fields, management bureaus, oil depots, oil terminals, oil refineries, offshore platforms, etc.; national grain depots, thermal power plants, steel mills, shipyards, paper mills, etc.;
Commercial fields: five-star hotels, hospitals, schools, supermarkets, office buildings, large commercial complexes, highway tunnels, subway stations, railway stations, airports; fire engineering companies;
