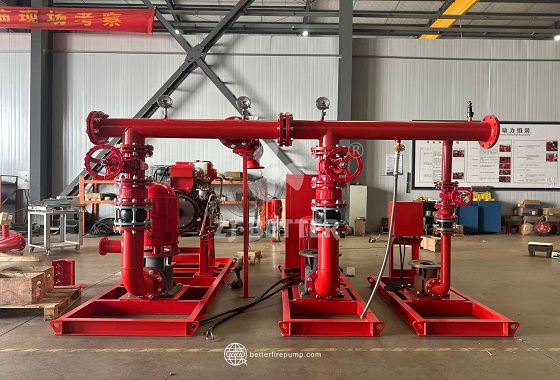

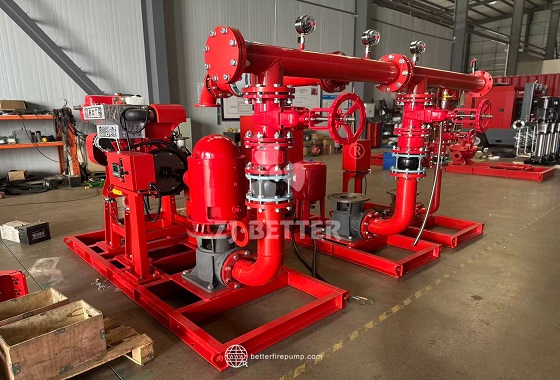

Fire Pump Set with Pressure Vessel and Piping Components for a Complete Water Supply Configuration
The complete fire pump set integrates pressure vessels, fire pumps, pressure stabilizing pumps, control cabinets, and piping accessories, supporting different flow rates, head, and pressure configurations, providing complete and stable fire water supply solutions for warehouses, industrial facilities, and commercial buildings.
A complete set of fire pump equipment integrates fire pumps, drive equipment, pressure-stabilizing pumps, pressure vessels, control cabinets, valves, and piping accessories into a unified system, providing a more rational functional configuration for the fire water supply system through complete equipment combination. According to official website information, a standard fire pump set typically consists of an electric main pump, a diesel standby pump, a pressure-stabilizing pump, a pressure vessel, control devices, and supporting accessories, and can be selected and combined according to the actual flow rate, head, and pipeline pressure of the project. As an important auxiliary component in the system, the pressure vessel can work with the pressure-stabilizing pump to buffer changes in the fire pipeline pressure, reducing unnecessary starts of the main fire pump under low flow and pressure requirements, and helping to maintain a relatively stable pipeline pressure. Pressure vessels are available in different capacities such as 25, 50, 75, and 100 L, and pressure ratings such as 0.6 MPa, 1.0 MPa, or 1.6 MPa can be selected according to the system head; specific specifications should be determined in conjunction with the fire protection system design parameters. Piping components are also an important part of a complete fire pump set. The system can integrate suction pipes, discharge pipes, gate valves, check valves, pressure gauges, pressure sensors, flexible joints, and flanges, forming a more complete connection structure between the pump set and the fire protection network. A rationally arranged common suction and discharge pipeline makes the connections between various devices clearer and facilitates on-site installation, pressure testing, commissioning, and subsequent inspection and maintenance. Check valves are used to control the direction of water flow, gate valves are used for pipeline opening and closing, and pressure gauges and pressure sensors provide monitoring data on system operating status and network pressure. Regarding pump configuration, the system can select different types of fire pumps according to project requirements, including single-stage pumps, end-suction pumps, horizontal split-case pumps, multi-stage pumps, and other applicable fire pump structures. For a typical combination of electric pumps, diesel pumps, and pressure-stabilizing pumps, the electric pump undertakes the main fire water supply task, the diesel pump serves as backup power, and the pressure-stabilizing pump is used to maintain system pressure. According to official website information, the relevant complete fire pump systems can cover a flow range of 30–9000 GPM and a head range of 3–20 bar. Specific parameters need to be matched according to the project’s fire protection design requirements. From an equipment structure perspective, incorporating pressure vessels and piping accessories into a complete fire pump system reduces the connection work required for installing multiple independent devices, allowing the pump set, pressure stabilizing device, and piping system to form a unified equipment unit. For fire water supply scenarios such as warehouses, docks, airports, petrochemical facilities, power plants, liquefied gas facilities, textile mills, and ships, appropriate pump set parameters can be configured based on building size, fire water consumption, pipeline pressure, and installation conditions. Simultaneously, the centralized complete design facilitates subsequent equipment inspection and maintenance, allowing personnel to clearly view the pump set, pressure gauges, valves, and piping status within a relatively clear layout. For projects requiring complete fire water supply equipment, this integrated pressure vessel and piping component fire pump set ensures the integrity of equipment functionality while providing convenience for on-site installation, system commissioning, and subsequent maintenance, and meets the actual water supply requirements of different fire protection systems through reasonable pressure and flow matching.
