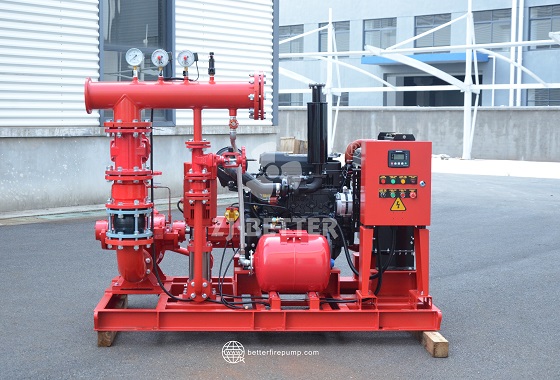

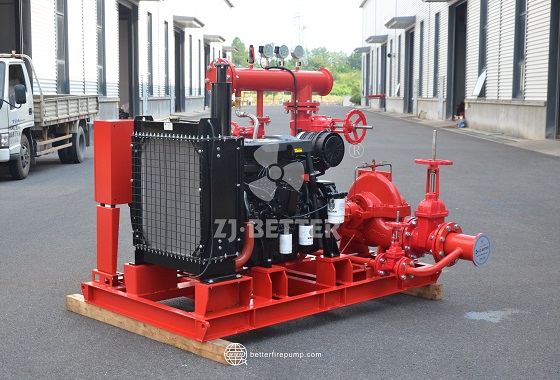

Skid-Mounted Diesel Fire Pump System with Optimized Suction and Discharge Piping
The skid-mounted diesel fire pump system features an integrated base, optimized suction and discharge piping, and a strategic valve configuration. Equipped with an independent diesel power source and pressure monitoring components, the system simplifies on-site installation and maintenance, making it well-suited for industrial facilities, warehouses, and various other fixed fire-water supply applications.
A skid-mounted diesel fire pump system is an integrated firefighting water supply unit comprising a diesel engine, a fire pump, suction and discharge piping, valves, pressure monitoring instruments, and control components. It is designed for use in industrial facilities, warehouses, commercial buildings, and other locations requiring a reliable fire-suppression water supply. The skid-mounted design consolidates the primary equipment and piping components onto a single base, optimizing the overall structure, minimizing the need for dispersed on-site installation, and facilitating easier transport, positioning, and setup. The diesel engine provides an independent power source for the fire pump, ensuring fire-suppression capabilities when a fixed power supply is unavailable or when a backup power source is required, thereby enhancing the flexibility of the fire protection system’s power configuration. A well-designed suction piping system reduces intake resistance and improves the pump’s suction conditions, while the discharge piping conveys pressurized water to the fire protection network. Integrated valves allow for flow isolation, directional control, and equipment maintenance, and monitoring components—such as pressure gauges—enable operators to verify system pressure and operational status. Careful planning of pipe diameters, elbows, valves, and connection points minimizes unnecessary localized resistance, fostering stable operation of the pump unit. Furthermore, the skid-mounted, integrated configuration ensures an organized piping layout, simplifying on-site connections, system commissioning, and routine inspections. Depending on the project’s fire protection requirements, the system can be configured with various types of fire pumps, diesel engines, pipe diameters, and control units to meet specific flow rate, head, and operating pressure targets. Actual performance is contingent upon the pump model, power output, piping resistance, suction conditions, and specific operating parameters; therefore, equipment selection must be based on performance curves and project design specifications. For critical fire protection applications, it is also essential to verify equipment certifications, control logic, starting mechanisms, and backup configurations in accordance with applicable standards, while ensuring that suction piping is securely sealed, pipelines are firmly supported, and valves are installed in the correct orientation. By integrating diesel power, optimizing suction and discharge piping, and strategically configuring valves, diesel-engine fire pump skid systems help streamline on-site installation, improve the tidiness of equipment layout and ease of maintenance, and provide a flexible, reliable water supply solution for fixed fire protection systems.
