Specializing in the production of nfpa 20 fire pump set manufacturers

500gpm ED fire pump dispatch

The pump casing of the electric pump of the fire pump set can be made of cast iron or stainless steel, the impeller can be made of copper impeller, the flow head, pressure or other parameters of the diesel pump are the same as those of the electric pump, and the diesel engine is connected to the pump head through a coupling. The jockey pump is a vertical pump, and its technical parameters are different from those of electric or diesel pumps. Generally, the lift is higher than that of electric and diesel pumps, and can be customized.

EJ fire pump set has significant advantages such as high efficiency, low operating noise, good cavitation resistance, reasonable structure and long service life. , long-distance water supply, heating, bathroom, boiler cold and warm water circulation pressurization, air conditioning refrigeration system water supply and equipment matching and other occasions.

Problem one lower water or no water
1, electric pump reversal will lead to the pump doesn’t produce water.
2, the pump can’t normal water into the same can’t be water, check whether the water bay or check stopcock is blocked or stuck, pumping pipe if there’s a leak will also affect the water into the water.
3, the pump internal corridor of the wear and tear or connection out, check the pump and motor coupling wear and tear, loose and impeller is worn.

Problem two ：
1 、 Check the power force as described over, including connectors, switches, fuses,etc.
2. Check whether the impeller in the pump is jammed by foreign objects
3. A burnt motor will also affect the launch of the pump.

Problem three the water affair is big for a while and small for a while
1. still, the lack of depth down the well may beget this problem, If the pump is a submersible pump.
2. The inflow rate of the pump is too high and needs to be replaced with a suitable pump.

Maintenance, commissioning and after-sales service of fire pump set! which consist of electric split case fire pump, diesel engine fire pump and controller

EEJ Fire Pump Set is 2 electric pumps and a jockey pump. It can meet 120~1500GPM . The head is less than 150m.

1.Flow: 50-5000GPM
2.Head: 3-20Bar
3.Caliber: 25-800mm
4.Power: Electric pump: 1.5-710 kw, Jockey pump: 0.55-160kw
5.Speed: 740-2900r/min
6.Material: HT200，SS304，Bronze
The EEJ Fire Pump System is an innovative solution designed to enhance fire safety in various settings. With exceptional performance and efficiency, the EEJ Fire Pump System delivers high pressure and large flow capacity, enabling rapid and effective fire suppression.Overall, the EEJ Fire Pump System is a reliable choice for safeguarding lives and properties, making it an ideal fire protection solution for commercial buildings, industrial facilities, and residential areas.

Diesel fire pump systems consist of several key components, including the diesel engine, pump assembly, fuel system, cooling system, control panel, and associated piping, valves, and fittings. Each component plays a crucial role in the operation and performance of the fire pump system, and regular maintenance and inspection of these components are essential to ensure reliable operation during emergencies.

1.Flow：30-9000 GPM
2.Head： 3-20 Bar 40-300 psi
3.Power：Diesel & Electric Pump:1.5-710kw Jockey Pump:0.55-160kw
4.Speed：740-2900 r/min
5.Caliber：65-350 mm
6.Working Pressure：≤1.6 MPa
The EDJ Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations.

It shows the fire pump set being tested. We have a factory equipped with a testing center. Products will be tested before delivery.

Fire sprinkler systems are an important part of life safety in buildings. International building codes allow some exceptions when buildings are “fully watered”, such as reducing rated spacing, reducing hydrant flow requirements, increasing exit travel distance, and increasing building height and area. These exceptions are allowed so that in the event of a fire, the sprinkler system will suppress the fire enough that occupants can safely evacuate the building and that the spread of the fire is contained before the fire department has fully arrived to extinguish it.

It is widely used in environmental protection, water treatment, fire protection and other departments. It is used to pump all kinds of liquids. It is the ideal pump and fire protection system to create no leakage, no pollution civilized workshop and civilized factory.

The engine cooling system of the diesel engine fire pump adopts double closed-loop heat exchangers. The system has the advantages of high cooling efficiency and little impact on the ambient temperature of the pump room. The cooling water flow direction is controlled by a ball valve from the pump outlet pipe to the heat exchanger, so that the cooling water temperature of the machine body is between 85 and 95 °C. If the water temperature is too high, you can increase the opening of the ball valve, increase the heat dissipation capacity of the heat exchanger, and reduce the temperature of the engine cooling water.

The dual power fire pump is composed of a fire water pump, a double shaft extension motor and a diesel engine. One end of the output shaft of the double shaft extension motor is connected with the input shaft of the fire pump, and the other end of the output shaft of the double shaft extension motor is One end of a clutch is connected, and the other end of the clutch is connected with the output shaft of the diesel engine. The fire water pump, the double-shaft extension motor, the clutch and the diesel engine are all fixed on the base. The double shaft extension motor, the clutch and the diesel engine are respectively electrically connected with a control circuit through an action drive circuit. With dual-power fire pumps, there is no need to configure a second fire pump, which reduces floor space and saves manufacturing costs.

EEJ fire pump group consists of two electric pumps + one jockey pump, the electric pump adopts XA pump.XA series single-stage centrifugal pump is the earliest single-stage single-suction centrifugal pump product launched by Better (China) Technology Co., Ltd.
This product combines the advantages of similar products in China and abroad, and is designed with excellent hydraulic model. Therefore, its excellent hydraulic performance and structural characteristics ensure that users can effectively reduce the operation cost of pumps in various applications.

Diesel engine fire pump, as a fixed fire extinguishing equipment, has been widely used in fire diversion, especially in the case of no power supply or abnormal power supply and other emergencies, other diesel engines can also be equipped as power engines according to the needs of users.

The fire pump is used to transport various liquids. It is an ideal pump and fire system for building civilized factories, non-leakage, and non-polluting civilized workshops. It is often installed on fire extinguishing systems, fire trucks or other fire-fighting facilities to transport water. Or a special pump for foam solution fire extinguishing. Pipeline fire pumps are widely used in water treatment, environmental protection, fire protection and other departments.

The tank-pump integrated fire water tank includes a water tank, an air pressure water tank, a water pump unit, an electric control cabinet, a liquid level instrument, a pipeline, a bottom plate, and an internal and external ladder. The water tank, the air pressure water tank and the bottom plate are connected as a whole, and the water pump unit Located on one side of the water tank, the electric control cabinet is arranged in the water tank, the pipeline is connected with the water pump unit and the water tank, and the inner and outer ladders are connected on the side of the water tank. The fire-fighting equipment of the utility model is simple in structure, low in cost and easy to install. While meeting the fire-fighting needs, the project cost, construction period and floor space are reduced.

Diesel engine fire pumps are suitable for use in high lift and high flow fire water supply environments or as backup fire water supply pumps. The reason is that the diesel engine has strong power and can be used with large flow fire deep well pumps, and the diesel engine fire pumps have the characteristics of self-starting when power is off. Emergency water supply available.

Fire water pump refers to the water supply pump used to ensure the system pressure and water volume in the fire water supply system. The fire pump transfers energy to the water through the rotation of the impeller, thereby increasing the kinetic energy and pressure energy of the water, and transporting it to the fire extinguishing equipment to meet the water volume and water pressure requirements of various fire extinguishing equipment. Such as fire hydrant pumps, sprinkler pumps, fire transfer pumps, etc.

Jockey pumps are smaller pumps that maintain pressure in the fire protection system between tests and activations. They prevent pressure loss in the system and ensure that the fire pump doesn’t start unnecessarily. Jockey pumps are crucial for system reliability.

1.Flow：30-9000 GPM
2.Head： 3-20 Bar
The EDJ Diesel Engine Fire Pump System is a powerful and reliable firefighting equipment designed for fire suppression and emergency rescue operations. It boasts high-performance capabilities in water extraction and pressure delivery, enabling rapid supply of large volumes of water. The system operates independently, ensuring its reliability even in challenging situations.

Diesel engine fire pump is a kind of mechanical and electrical integration equipment that is directly driven by diesel engine fire pump and can start and complete water supply in a short period of time. Diesel engine pumps are driven by diesel and do not need an external power supply. Diesel engine water pumps are suitable for various fire water supply occasions such as agricultural irrigation, emergency rescue, smelting, hangars, petrochemical oil depots, power plants, liquefied gas stations, textiles, etc., especially where there is no electricity, When the power grid is not satisfactory, it is the safest choice to use a diesel engine to drive the water pump.

1.Flow：30-9000 GPM
2.Head： 3-20 Bar (40-300 psi)
3.Power：Diesel & Electric Pump:1.5-710kw Jockey Pump:0.55-160kw
4.Speed：740-2900 r/min

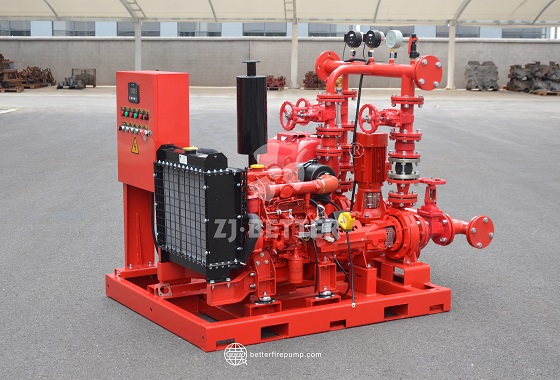

The EDJ Fire Pump Set includes diesel engine pumps, electric pumps and jockey pumps.
In various fields, our products find applications in large hotels, hospitals, schools, office buildings, supermarkets, commercial residences, subway stations, train stations, airports, various transportation tunnels, petrochemical plants, thermal power plants,oil storage tanks, large warehouses, industrial and mining enterprises, seawater injection, etc.

Diesel engine fire pump is a common necessary facility. Only when the fire signal comes, and the electric water pump fails or the power supply is cut off, the diesel engine fire pump will automatically start. The diesel engine fire pump is installed together with the electrical instrument, with complete functions, compact structure, automatic fault alarm, accepting the starting signal, and can automatically complete the starting procedure and run at full load quickly. When the diesel engine fire pump is insufficient in fuel, low battery voltage, and high lubricating oil temperature , enough to ensure that the diesel engine fire pump starts in a low temperature environment, the entire system of the diesel engine fire pump is safe, reliable, and easy to use.

The diesel engine fire pump is suitable for unmanned emergency water supply system. The product has the characteristics of good technology, high degree of automation, high performance and protection function, reasonable structure, easy installation, and high cost -effectiveness. Supplement the pressure of the network.

As a fixed fire-fighting equipment, the diesel engine fire-fighting pump set has been widely used in fire-fighting diversion, especially for fire-fighting water supply in unexpected situations such as no power supply or abnormal power supply (mains power). The water pumps in the unit are horizontal single-stage and multi-stage fire pumps produced by our company, which are mainly composed of diesel engines, fire pumps, coupling devices, fuel tanks, radiators, battery packs, intelligent automatic control panels, etc.

The diesel engine equipped with the equipment is made of domestic or imported products. It has the characteristics of good starting characteristics, strong overload capacity, compact structure, convenient maintenance, simple use, and high degree of automation. It is an advanced and reliable fire-fighting equipment.

Diesel engine fire pumps are usually used as a backup facility, and will only start automatically when the electric water pump fails or the power is cut off when the fire signal comes. When equipped with an ultra-low pressure pump starting device, the matching electric pump control cabinet should also be equipped with an ultra-low pressure pump starting device, and the lower limit of pump starting should have a certain pressure difference. Of course, it is also possible to design a control system that is more suitable for customer needs according to customer requirements.

Before starting the electric motor fire pump set, the inspection work is indispensable. Check the condition of the power supply and motor, whether the water volume of the reservoir is sufficient, and whether the water inlet and outlet are normal. The inspection is normal and then starts; after the fire pump is started, attention should be paid to the vibration and temperature rise. It is necessary to set the maintenance time period to ensure the stable performance of the fire pump. According to the needs of system operation control and maintenance management, the electrical control cabinet of the fire pump mainly has the functions of starting and stopping the pump, switching between the main and standby pumps, manual automatic switching, dual power switching, patrol inspection, Protection, feedback mechanical emergency start and other functions.

1. Choose a fire pump with good performance and reliable quality.

2. The fire pump should be suitable for the working pressure and flow rate required by the fire fighting system.

3. Pay attention to the safety performance, reliability and stability of the fire pump.

4. Check whether the fire pump meets the requirements of the relevant national standards.

5. Pay attention to the after-sales service of the fire pump manufacturer.

6. Consider the cost performance of the fire pump.

7. Choose a fire pump from a qualified manufacturer.
