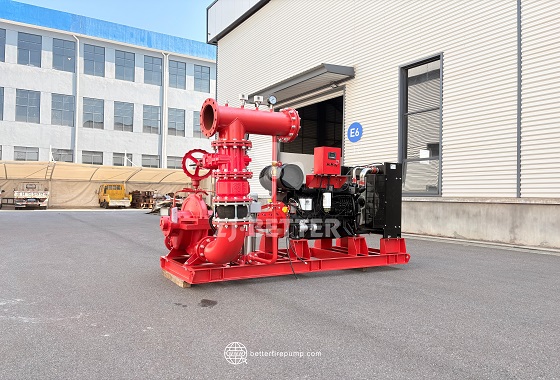

Skid-Mounted Diesel Fire Pump Equipment – Centralized Pump and Piping Layout for Easier Project Deployment
The skid-mounted diesel fire pump unit integrates a diesel engine, fire pump, control components, and piping onto a common base. Featuring a compact structure that facilitates transport and installation, it offers flexible configuration based on flow rate, head, and project requirements, making it suitable for industrial, warehousing, and large-scale fire water supply projects.
The diesel fire pump skid-mounted unit is an integrated fire water supply system featuring a diesel engine, fire pump, control components, valves, and connecting piping all mounted on a common base. The unit shown utilizes a compact, integrated skid design, making it suitable for industrial plants, logistics warehouses, docks, airports, and other projects requiring emergency fire water supply. Its primary advantage lies in the centralized configuration of power, pumping, and piping systems; this minimizes the on-site assembly work associated with traditional decentralized installations, thereby facilitating easier transport, positioning, installation, and maintenance. The diesel engine provides independent mechanical power to the fire pump, ensuring system operation during mains power failures or when backup power is required, thus enhancing the flexibility of the fire water supply configuration. As the core water-delivery component, the fire pump can be selected from various configurations—such as single-stage, end-suction, horizontal split-case, or multi-stage pumps—based on project-specific requirements for flow rate, head, and pressure, ensuring compatibility with diverse fire piping networks. The unit employs a skid-mounted common base with centralized placement of the engine, pump, and piping; this integrated structure ensures high integrity, simplifies lifting, transport, and on-site positioning, and reduces complex on-site interconnections between components. The piping assembly can be configured with inlet and outlet pipes, flanges, flexible joints, check valves, gate valves, and pressure monitoring components to establish a complete connection between the pump unit and the fire piping network, while also facilitating future inspections and maintenance. The control system enables functions such as start/stop control, operational status monitoring, pressure detection, and fault alarms; some systems also include protections against overcurrent and overload, helping operators stay informed of the equipment’s status. Proper integration of cooling, fuel, and auxiliary systems supports the diesel engine’s operation, ensuring the pump unit can meet continuous running requirements. For fire protection projects requiring high flow rates or high heads, the diesel engine power, pump performance, piping dimensions, and control methods can be matched to actual design parameters, ensuring an optimal balance between power output and pumping capacity. Depending on the specific fire water supply scheme, these integrated systems can be equipped with auxiliary components—such as jockey pumps, pressure tanks, pressure gauges, and pressure sensors—to enhance their pressure management capabilities. The skid-mounted design facilitates factory-based assembly, commissioning, and inspection; on-site installation primarily involves positioning the unit on its foundation and connecting inlet/outlet piping and electrical control interfaces, thereby minimizing on-site construction work and improving deployment efficiency. For industrial plants, warehouses, commercial facilities, ports, and other locations requiring independent or backup fire-fighting power, these skid-mounted diesel fire pump units provide reliable emergency water supply support through their centralized design, independent diesel power source, and flexible parameter configuration.
